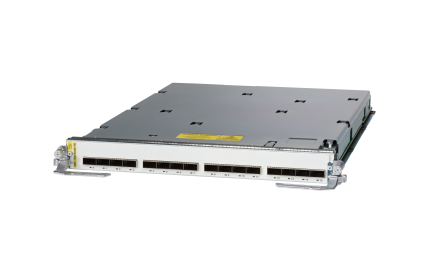

• Cisco A9K-16X100GE-FC ASR 9000 line card with silver router and yellow accents
1 1

Cisco

Cisco A9K-16X100GE-FC | ASR 9000 line card | 16x100GbE QSFP28 | License: Flexible Consumption

A9K-16X100GE-FC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

High-density 100G line card for ASR 9000 systems delivering 16 ports of 100GbE via QSFP28, ideal for core, peering, and service-edge aggregation. Flexible Consumption licensing allows on-demand port activation to align capacity with budget and growth. Supports standard 100G optics and hot-swap replacement for minimal downtime.

Features

- High-density 100GbE for scalable core and edge deployments
- Flexible Consumption licensing to align spend with growth
- Hot-swappable design for reduced maintenance windows
- Broad QSFP28 optic ecosystem for diverse reach requirements
- Carrier-grade features with software-driven service flexibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port density: 16 x 100 Gigabit Ethernet
- Port type: QSFP28
- Per-port speed: 100GbE
- Licensing: Flexible Consumption (on-demand port activation)
- Role: Core/edge aggregation, peering, service edge
- Platform compatibility: ASR 9000 Series line-card slots (requires compatible RSP/fabric and software)
- Optics support: QSFP28 SR4 (850 nm, MPO-12, up to 100 m OM4), LR4 (1310 nm, duplex LC, up to 10 km), CWDM4 (1310 nm, duplex LC, up to 2 km), PSM4 (1310 nm, MPO-12, up to 500 m), 100G DAC/AOC (lengths per cable spec)
- Hot-swappable: Yes
- Breakout: 4x25G support may be available depending on chassis/software release
- Features: IPv4/IPv6, L2/L3 services, MPLS, QoS, and Segment Routing availability depends on software release and licenses

FAQs

Q: What is Flexible Consumption licensing on this line card?
A: It enables on-demand activation of ports or capacity, allowing you to scale 100G interfaces as needed without purchasing all capacity upfront.

Q: Which optics are supported?
A: Standard 100G QSFP28 modules such as SR4, LR4, CWDM4, PSM4, as well as DAC/AOC cables. Actual reach and compatibility depend on the optic used and software release.

Q: Does it support 4x25G breakout?
A: Breakout may be supported on specific ports and software releases; consult platform release notes for exact capabilities.

Q: Is it compatible with all ASR 9000 chassis?
A: It is designed for ASR 9000 Series systems but requires compatible RSP/fabric and software versions. Check the hardware/software compatibility matrix.

Q: Can I mix this FC line card with SE or TR variants?
A: Mixing variants is typically supported in the same chassis if overall system software and fabric requirements are met.
