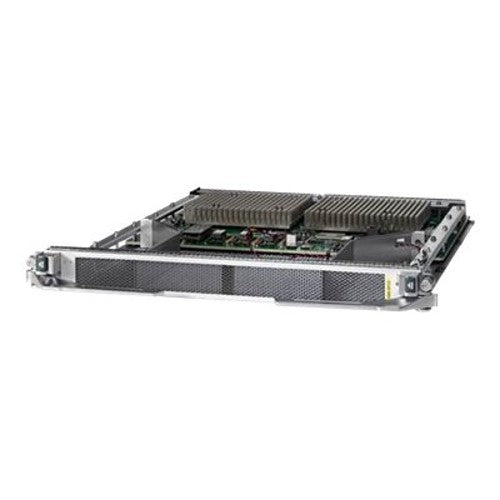

• Cisco A99-SFC2 Gen 2 switch fabric card in silver rack with mesh panels
1 1

Cisco

Cisco A99-SFC2 | ASR 9900 Switch Fabric Card 2 (SFC2), ASR 9912/9922

A99-SFC2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The A99-SFC2 is a second-generation switch fabric card (SFC2) for the Cisco ASR 9900 Series, supporting both ASR 9912 and ASR 9922 chassis. It provides a nonblocking, all-active distributed fabric with 230 Gbps per fabric card, designed to support high-density 1-, 10- and 100-Gigabit Ethernet line cards. With N+1 redundancy and hot-swappable online insertion and removal, it suits core and aggregation deployments where fabric capacity and resilience are critical.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Distributed switch fabric architecture with single-stage, nonblocking, packet-based, store-and-forward fabric planes
- Supports up to seven fabric cards in an all-active configuration, with traffic load balanced across all of them
- Zero packet loss on fabric card online insertion and removal (OIR)
- Remaining active fabric cards carry traffic if one card fails
- Works with the ASR 9000 Route Processor 2 / Route Switch Processor for centralised Virtual Output Queue (VOQ) arbitration
- Designed for high 1-, 10- and 100-Gbps port densities, providing investment protection
- Supports third-generation 100GbE line cards with up to seven fabric controllers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fabric speed: 230 Gbps per fabric card
- Fabric redundancy: N+1, up to seven fabrics per system (6+1 on ASR 9922 and ASR 9912)
- Compatible chassis: ASR 9912 and ASR 9922
- Memory: 256 MB DDR3, 128 Kb NVRAM, 2 x SPI Flash with 128 Mb
- Minimum software: Cisco IOS XR 5.3.0
- Form factor: plug-in module
- Dimensions: 1.8 in H x 16.9 in W, weight approximately 11.99 lbs
- Operating temperature: 0 to 40 C

FAQs

Q: Which chassis is the A99-SFC2 compatible with?
A: The A99-SFC2 supports both the Cisco ASR 9912 and ASR 9922 chassis.

Q: What redundancy does the switch fabric card provide?
A: The fabric operates in an N+1 arrangement with up to seven fabric cards per system, configured as 6+1 on the ASR 9922 and ASR 9912. All cards are active and traffic is load balanced across them.

Q: Can the card be replaced while the system is running?
A: Yes. The card is hot-swappable and supports online insertion and removal (OIR) with zero packet loss, as the remaining active fabric cards carry traffic.

Q: What is the minimum software requirement?
A: The A99-SFC2 requires Cisco IOS XR 5.3.0 or later.

Q: What line cards is the SFC2 designed to support?
A: It is designed for high-density 1-, 10- and 100-Gigabit Ethernet line cards, including third-generation 100GbE line cards with up to seven fabric controllers.
