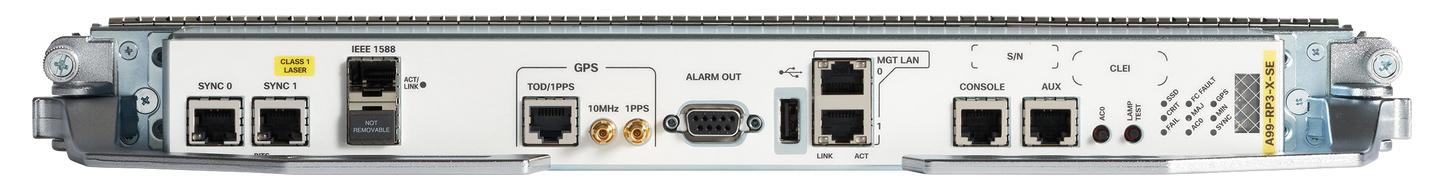

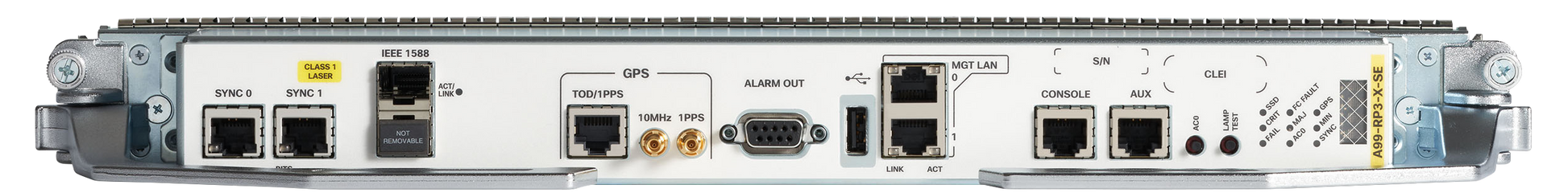

• Cisco ASR 9900 RP3-X TR router with ports and yellow label
1 1

Cisco

Cisco A99-RP3-X-TR | ASR 9900 Route Processor, Packet Transport, 24GB

A99-RP3-X-TR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9900 RP3-X is a route processor for ASR 9912 and ASR 9922 chassis, with an 8-core 2.7 GHz processor and 24GB ECC-protected DRAM. This Packet Transport (TR) Premium variant controls up to seven ASR 9900 switch fabric cards and supports 100G and 400G line cards, with backward compatibility to third and fourth generation ASR 9000 line cards. Dedicated BITS, GPS and IEEE 1588 PTP timing interfaces suit carrier aggregation and 5G transport networks running Cisco IOS XR.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier-class Cisco IOS XR software with process modularity and distributed route processing
- G.8273.2 Boundary Clock Class C support for accurate timing in 5G mobile networks
- Redundant, centralised network synchronisation via BITS ports
- Supports 100G and 400G Ethernet line cards
- Backward compatible with third and fourth generation ASR 9000 line cards
- Active/standby high availability with hot-swappable design
- Console and management ports for system access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Route Processor (RP3-X)
- Variant: Packet Transport (TR), Premium
- Processor: 8 cores, 2.7 GHz
- Memory: 24GB ECC-protected DRAM
- Controls up to seven ASR 9900 switch fabric cards
- Two independent BITS clock-source connections
- Dedicated 10/1G optical port for IEEE 1588 PTP
- GPS support via ToD, 10-MHz and 1-PPS interfaces
- Compatible chassis: ASR 9912 and ASR 9922
- Software: Cisco IOS XR (XR 7.6.2 or later)

FAQs

Q: Which chassis is the A99-RP3-X-TR compatible with?
A: It is designed for the Cisco ASR 9912 and ASR 9922 routers.

Q: What is the difference between the TR and SE variants of the RP3-X?
A: The TR variant is the Packet Transport, Premium version with 24GB of DRAM, while the SE variant is fitted with 48GB of DRAM.

Q: Does the RP3-X support timing and synchronisation for 5G networks?
A: Yes. It provides two BITS clock-source connections, a dedicated 10/1G optical port for IEEE 1588 PTP, GPS via ToD, 10-MHz and 1-PPS interfaces, and G.8273.2 Boundary Clock Class C support.

Q: Which line cards can be used with this route processor?
A: It supports high-density 100G and 400G line cards and is backward compatible with third and fourth generation ASR 9000 line cards.

Q: What software does the route processor run?
A: It runs Cisco IOS XR Software, with XR 7.6.2 or later specified for this platform.
