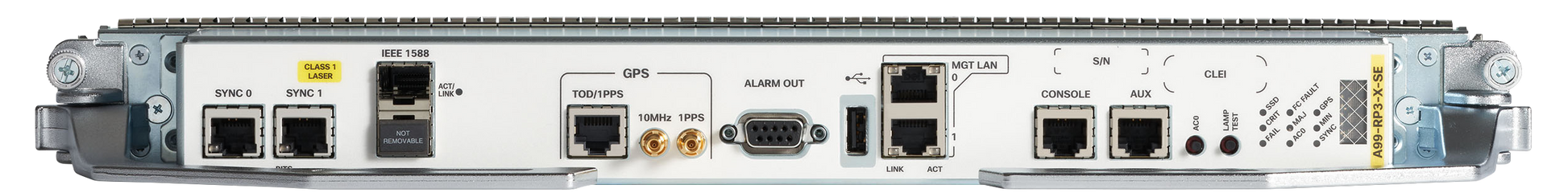

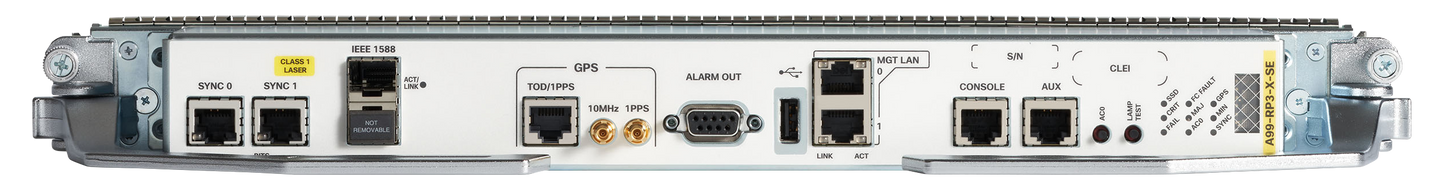

• Cisco ASR 9900 RP3-X SE router with multiple ports and yellow label
1 1

Cisco

Cisco A99-RP3-X-SE | ASR 9900 RP3-X Route Processor, SE Premium, 48GB

A99-RP3-X-SE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9900 RP3-X is a Service Edge (SE) Premium route processor for the Cisco ASR 9912 and ASR 9922 routers, fitted with 48GB of ECC-protected DRAM and running Cisco IOS XR. It supports high-density 100GbE and 400GbE line cards and is backward compatible with 3rd and 4th generation ASR 9000 line cards. Integrated timing support including BITS, IEEE 1588-2008 PTP and GPS interfaces makes it well suited to carrier-class Ethernet edge and 5G mobile transport deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Brings carrier-class IOS XR capabilities to the Carrier Ethernet edge
- Supports distributed route processing
- Backward compatible with 3rd and 4th generation ASR 9000 line cards
- Improved timing accuracy for 5G mobile networks (G.8273.2 Class C)
- Redundant, centralised network synchronisation via BITS ports
- Designed for demanding video, cloud and mobile services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Route Processor (RP3-X), Service Edge (SE) Premium variant
- Compatible chassis: Cisco ASR 9912 and ASR 9922
- Controls up to seven ASR 9900 switch fabric cards
- Memory: 48GB ECC-protected DRAM
- Processor: 8 cores, 2.7 GHz
- Timing: two independent BITS clock-source connections
- Timing: IEEE 1588-2008 PTP via dedicated 10/1G optical port
- Timing: GPS interfaces (ToD RS-422, 1-PPS, 10-MHz in/out)
- G.8273.2 Boundary Clock Class C support
- Alarm outputs: Critical, Major and Minor
- Supports 100GbE and 400GbE line cards
- Software: Cisco IOS XR

FAQs

Q: Which chassis is the A99-RP3-X-SE compatible with?
A: It is designed for the Cisco ASR 9912 and ASR 9922 routers, where it controls up to seven ASR 9900 switch fabric cards.

Q: How much memory does the Service Edge variant have?
A: The Service Edge (SE) Premium variant carries 48GB of ECC-protected DRAM. The TR variant has 24GB.

Q: Does it work with older ASR 9000 line cards?
A: Yes. It is backward compatible with 3rd and 4th generation ASR 9000 line cards and also supports 100GbE and 400GbE line cards.

Q: What timing and synchronisation options does it provide?
A: It offers two independent BITS clock-source connections, IEEE 1588-2008 PTP via a dedicated 10/1G optical port, and GPS interfaces (ToD RS-422, 1-PPS, 10-MHz in/out). It supports G.8273.2 Boundary Clock Class C.

Q: Which operating system does it run?
A: It runs Cisco IOS XR, providing a carrier-class control plane for edge and aggregation deployments.
