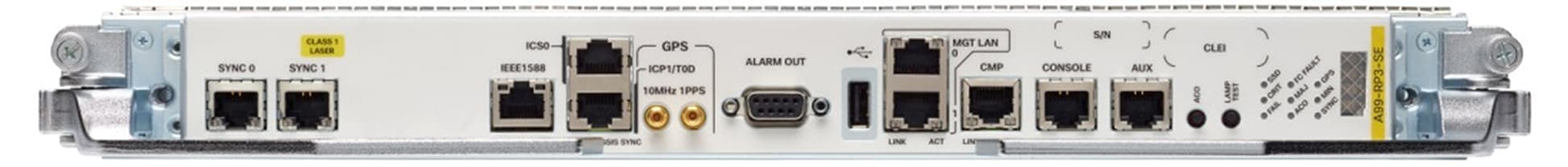

Cisco A99-RP3-SE | ASR 9900 Route Processor 3, Service Edge, 40GB DRAM

A99-RP3-SE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 9900 Route Processor 3 for Service Edge is a next-generation system route processor for the ASR 9912 and ASR 9922 routers, running Cisco IOS XR. It pairs an 8-core 2 GHz processor with 40GB of ECC-protected DRAM, giving the Service Edge variant more memory than the Packet Transport variant with 16GB for large-scale service deployments. It supports high-density 100G and 400G Ethernet line cards and controls up to seven ASR 9900 switch fabric cards, with built-in GPS and IEEE 1588 timing connections for network synchronisation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier-class Cisco IOS XR software with true process modularity, where each process runs in separate protected memory
- Distributed route processing
- Distributed, multistage, low-latency nonblocking switch fabric architecture
- Service intelligence and traffic prioritisation
- Network timing support including GPS (ToD, 10-MHz, 1-PPS) and IEEE 1588
- Backward compatible with ASR 9000 Series third-generation line cards
- Supports high-density 100GE and 400GE line cards

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8-core, 2 GHz processor
- 40GB ECC-protected DRAM (Service Edge variant)
- 2 x 128GB solid-state disks
- 8GB embedded USB
- 1 x USB 2.0 Type A receptacle
- 2 x 100/1000BASE-T (RJ-45) LAN management ports
- 1 x console port
- 1 x auxiliary port
- Timing: two independent clock-source connections
- IEEE 1588 support via a copper 10/100-Mbps RJ-45 Ethernet port
- GPS: ToD (RS-422 and RS-232), 1-PPS, 10-MHz in/out
- Controls up to seven ASR 9900 switch fabric cards
- Compatible chassis: ASR 9912 and ASR 9922
- Introduced on Cisco IOS XR 64-bit Release 6.5.1
- Approx. dimensions: 16.9 x 24.7 x 1.6 in (W x D x H), approx. weight 19.6 lb

FAQs

Q: Which chassis is the A99-RP3-SE compatible with?
A: It is designed for the Cisco ASR 9912 and ASR 9922 routers.

Q: How does the A99-RP3-SE differ from the A99-RP3-TR?
A: The SE (Service Edge) variant has 40GB of DRAM, while the TR (Packet Transport) variant has 16GB. The extra memory suits large-scale service deployments.

Q: Which software does this route processor run?
A: It runs Cisco IOS XR and was introduced on Cisco IOS XR 64-bit Release 6.5.1.

Q: Does it support network timing and synchronisation?
A: Yes. It provides two independent clock-source connections, IEEE 1588 support via a copper 10/100-Mbps RJ-45 Ethernet port, and GPS interfaces including ToD, 1-PPS and 10-MHz in/out.

Q: Can it be used with ASR 9000 Series third-generation line cards?
A: Yes. It is backward compatible with ASR 9000 Series third-generation line cards and also supports high-density 100GE and 400GE line cards.
