Cisco

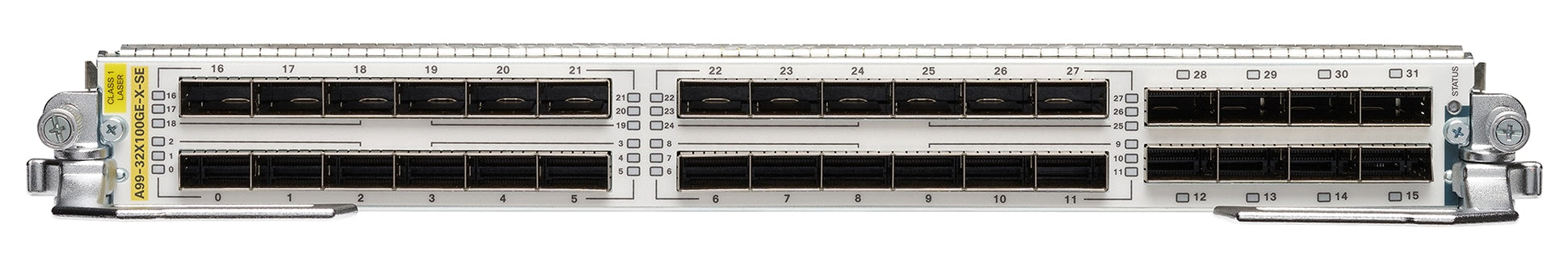

Cisco A99-32X100GE-X-TR | ASR 9900 32-Port 100G Line Card, Packet Transport

A99-32X100GE-X-TR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This line card provides 32 x 100 Gigabit Ethernet QSFP28 ports with 3.2 Tbps of non-blocking, line-rate capacity for ASR 9900 Series routers. It is the Packet Transport (TR) optimised variant of the 5th generation card, aimed at core and peering deployments, and runs on Cisco IOS XR. Compatible with ASR 9904, 9906, 9910, 9912 and 9922 chassis, it delivers every port at full line rate without oversubscription.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full line rate, non-oversubscribed 100GE on any slot of a supported ASR 9900 chassis
- Power-optimised design, with unused slices able to enter a power-saving mode
- Online Insertion and Removal (OIR) without system impact
- 100 Gigabit Ethernet PHY monitoring and IEEE 802.x flow control
- Per-port byte and packet counters, including policy, oversubscription and CRC error drops
- QSFP breakout option for large-scale aggregation and 10GE Satellite nV mode
- Runs Cisco IOS XR, a modular, patchable and highly available carrier-grade operating system

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x 100 Gigabit Ethernet ports per line card (QSFP28/QSFP+ cages)
- 3.2 Tbps non-blocking line-rate capacity
- 100-Gbps line-rate throughput per port
- Chassis compatibility: Cisco ASR 9904, ASR 9906, ASR 9910, ASR 9912 and ASR 9922
- Software: IOS XR 7.1.15 or later
- Dimensions (H x W x D): 1.63 x 15.58 x 23.80 in (41.4 x 395.7 x 604.5 mm)
- Weight: 28.30 lb (12.84 kg)
- Operating temperature: 5 to 40°C (41 to 104°F); limits may apply with high-power optics
- Operating humidity (nominal): 10 to 85% RH
- Storage temperature: -40 to 70°C
- Operating altitude: -60 to 4000 m
- Standards: IEEE 802.3ba 100 Gigabit Ethernet compliant

FAQs

Q: Which chassis is this line card compatible with?
A: It is compatible with Cisco ASR 9904, ASR 9906, ASR 9910, ASR 9912 and ASR 9922 chassis. The chassis may require updated fabric cards, RP/RSP cards and cooling to support the card.

Q: What is the difference between the TR and SE variants?
A: This A99-32X100GE-X-TR is the Packet Transport (TR) optimised variant, aimed at core and peering applications. The sibling A99-32X100GE-X-SE is the Service Edge variant.

Q: Does it support hot swapping?
A: Yes. The card supports Online Insertion and Removal (OIR), so it can be installed or removed without impacting the rest of the system.

Q: Are all 32 ports non-blocking at 100G?
A: Yes. The card delivers 3.2 Tbps of non-blocking capacity, so all 32 ports run at full 100-Gbps line rate without oversubscription.

Q: What software does it require?
A: It runs Cisco IOS XR, version 7.1.15 or later.
