• Cisco Catalyst 9300 switch with 12x100G QSFP28 ports
1 1

Cisco

Cisco A99-12X100GE-CM | 12x100G QSFP28 | Consumption Model licensing | Optics: 100G, QSFP28, 100GBASE-SR4/LR4/ER4/CWDM4, 850/1310 nm, up to 40 km, MPO/LC

A99-12X100GE-CM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

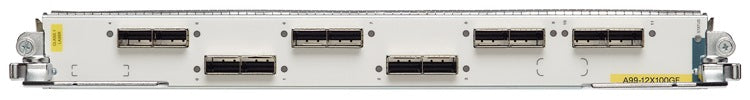

High-density 12x100G line card for ASR 9900 series, ideal for service provider edge and core aggregation. Consumption Model licensing enables pay-as-you-grow activation of ports/capacity to align with network demand. Supports QSFP28 100G optics across SR4/LR4/ER4/CWDM4 for flexible reach from metro to long-haul. Designed for carrier-grade resiliency with hot-swap support and IOS XR feature set for L2/L3, MPLS, and SR.

Features

- 12-port 100G density for scalable core and aggregation
- Consumption-based licensing to align cost with growth
- Broad 100G optic support for campus, metro, and long-haul deployments
- Carrier-grade resiliency with hot-swap and ISSU support
- IOS XR feature richness for L2/L3, MPLS, SR, and advanced QoS
- Telemetry-ready for proactive monitoring and automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 12x 100 Gigabit Ethernet
- Port form factor: QSFP28
- Optics support: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-ER4, 100G CWDM4 (module dependent)
- Wavelengths: SR4 850 nm (MPO), LR4/ER4/CWDM4 1310 nm (LC)
- Reach: SR4 up to 100 m OM4; LR4 up to 10 km; ER4 up to 40 km (optic dependent)
- Licensing: Consumption Model (pay-as-you-grow port/bandwidth enablement)
- Platform: ASR 9900 series chassis (fabric/RSP compatibility per release notes)
- Software: IOS XR with L2/L3, MPLS, Segment Routing, advanced QoS
- Resiliency: Hot-swappable, ISSU-capable (per software release), N+1 redundancy at system level
- Telemetry: Model-driven streaming telemetry and rich counters (per IOS XR release)
- Environmental: Front-to-back airflow (chassis dependent)

FAQs

Q: Is a separate license required to activate all 12x100G ports?
A: Yes. Consumption Model licensing enables ports and/or bandwidth as needed. Full activation may require additional licenses.

Q: Which optics are compatible with the QSFP28 ports?
A: Supported 100G QSFP28 optics include SR4, LR4, ER4, and CWDM4. Consult the platform compatibility matrix for specific part numbers.

Q: Will this line card work in any ASR 9900 chassis?
A: It is designed for ASR 9900 series. Ensure your chassis, RSPs, and fabric modules meet the required generation and software release for this card.

Q: Does it support breakout to 4x25G or 4x10G?
A: Breakout capabilities depend on platform support and optic type. Check the software and hardware release notes for supported breakouts.

Q: What software features are available?
A: IOS XR features such as L2/L3, MPLS, Segment Routing, QoS, and telemetry are supported subject to software release and licensing.
