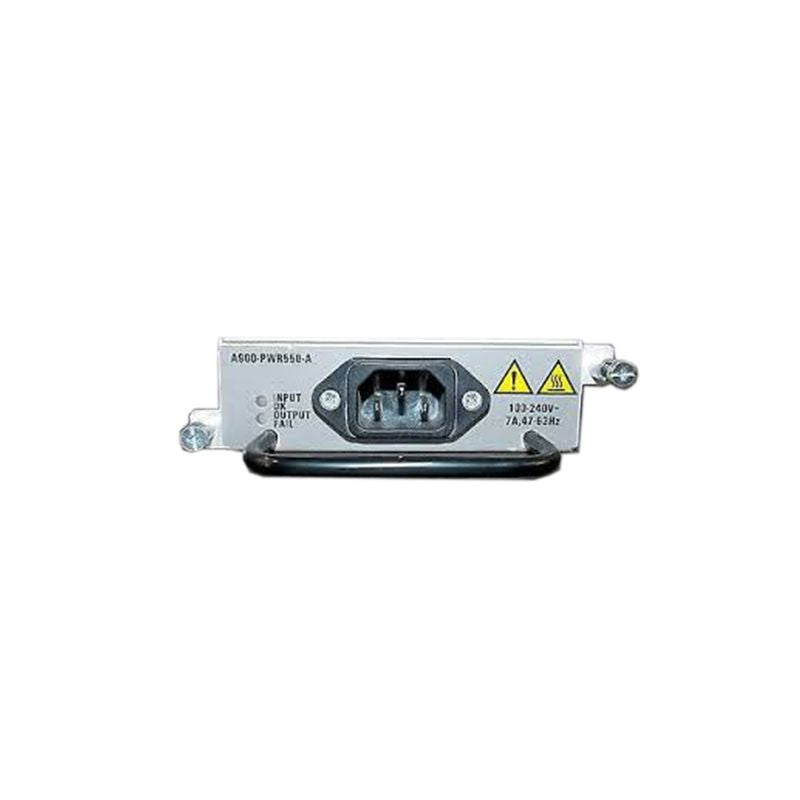

• Cisco A900-PWR550-A-IOT 550W AC power supply with yellow warning label
1 1

Cisco

Cisco A900-PWR550-A-IOT | ASR 900 550W AC Power Supply, 115/230 VAC

A900-PWR550-A-IOT

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

550W AC power supply module for Cisco ASR 900 Series aggregation routers such as the ASR 902 and ASR 903. It accepts 115/230 VAC input and delivers 12 VDC system power through a field-replaceable plug-in design. It supports dual power supply operation in the chassis for redundant deployments and includes Dying Gasp support for power-loss notification.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable plug-in power module
- Supports dual power supply (redundant) operation in the ASR 900 chassis
- Dying Gasp support for power-loss notification
- Wide-range AC input suits 115 V and 230 V installations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Maximum output power: 550 W (12 VDC system power)
- Nominal input: 115 VAC / 230 VAC
- Input voltage range: 85 to 264 VAC
- Frequency range: 47 to 63 Hz (nominal 50/60 Hz)
- Output voltage: 12 V minimum, 12.4 V maximum
- Power receptacle: IEC 320 C14, 15 A
- MTBF: 300,000 hours at 40°C operating temperature
- Dying Gasp supported

FAQs

Q: Which routers is this power supply designed for?
A: It is a 550W AC power supply module for Cisco ASR 900 Series aggregation routers, such as the ASR 902 and ASR 903.

Q: Is it compatible with the ASR 907 chassis?
A: No. This power supply is not supported in the ASR 907 chassis.

Q: What input voltage does it accept?
A: It accepts nominal 115/230 VAC input, with an input voltage range of 85 to 264 VAC at 47 to 63 Hz.

Q: Can it be used for redundant power?
A: Yes. It supports dual power supply operation in the ASR 900 chassis, so a second module can be installed for redundancy.

Q: Is 550W enough with the A900-RSP3C-400-S route switch processor?
A: Only if the total system power consumption stays within 550 W. For higher-draw configurations, the A900-PWR1200-A is the recommended power supply.
