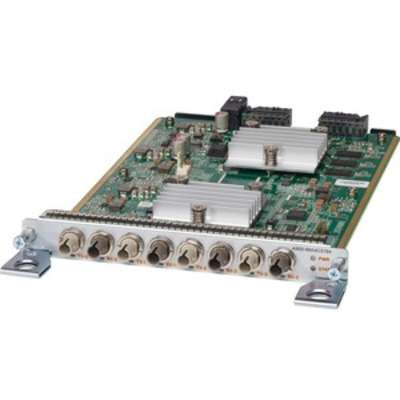

• Cisco A900-IMA4C3794 module with silver circuit board and green components
1 1

Cisco

Cisco A900-IMA4C3794 | ASR 900 4-Port C37.94 Optical Interface Module

A900-IMA4C3794

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 900 Series 4-port C37.94 optical interface module provides four IEEE C37.94 compliant Nx64 kbps optical interfaces for Connected Energy and Smart Grid deployments. It carries C37.94 tele-protection relay connections transparently over IP/MPLS using CESoPSN, allowing utilities to migrate communication networks from TDM to IP/MPLS. It installs in supported ASR 902, ASR 903 and ASR 900U chassis and uses 2.5mm ST connectors on 850nm multimode fibre.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for Connected Energy and Smart Grid (utility) applications
- Transparent transport of C37.94 tele-protection relay connections over IP/MPLS using CESoPSN
- Enables migration of utility communication networks from TDM to IP/MPLS
- Front-panel cabling on all ports
- Part of the ASR 900 interface module family, which supports converged circuit emulation and business Ethernet services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x IEEE C37.94-2002 compliant Nx64 kbps optical ports
- Supports 50/62.5 multimode fibre at 850nm
- Physical interfaces use 2.5mm ST connectors
- Power consumption: 18W maximum
- Weight: 1.48 lbs
- MTBF: 1,493,730 hours
- Installs in slots 3, 4, 7, 8, 11 and 12 on ASR 903 with RSP3 (supported in all slots on some RSP and chassis combinations)
- Supported on ASR 902, ASR 903 and ASR 900U chassis
- Minimum software: IOS XE 3.18.1SP
- Timing standards: ITU-T G.8262, G.8264 and IEEE 1588-2008

FAQs

Q: Which chassis support the A900-IMA4C3794?
A: It is supported on ASR 902, ASR 903 and ASR 900U chassis, including those fitted with A900-RSP2 and RSP3C route switch processors.

Q: What type of fibre and connectors does this module use?
A: The four C37.94 ports support 50/62.5 multimode fibre at 850nm and use 2.5mm ST connectors.

Q: What is this module typically used for?
A: It is used in utility and Smart Grid networks to carry C37.94 tele-protection relay connections transparently over IP/MPLS using CESoPSN, supporting migration from TDM to packet transport.

Q: Which slots can the module be installed in on an ASR 903?
A: On an ASR 903 with RSP3 it can be installed in slots 3, 4, 7, 8, 11 and 12. Some RSP and chassis combinations support all slots.

Q: What is the minimum software release required?
A: The module requires Cisco IOS XE 3.18.1SP or later.
