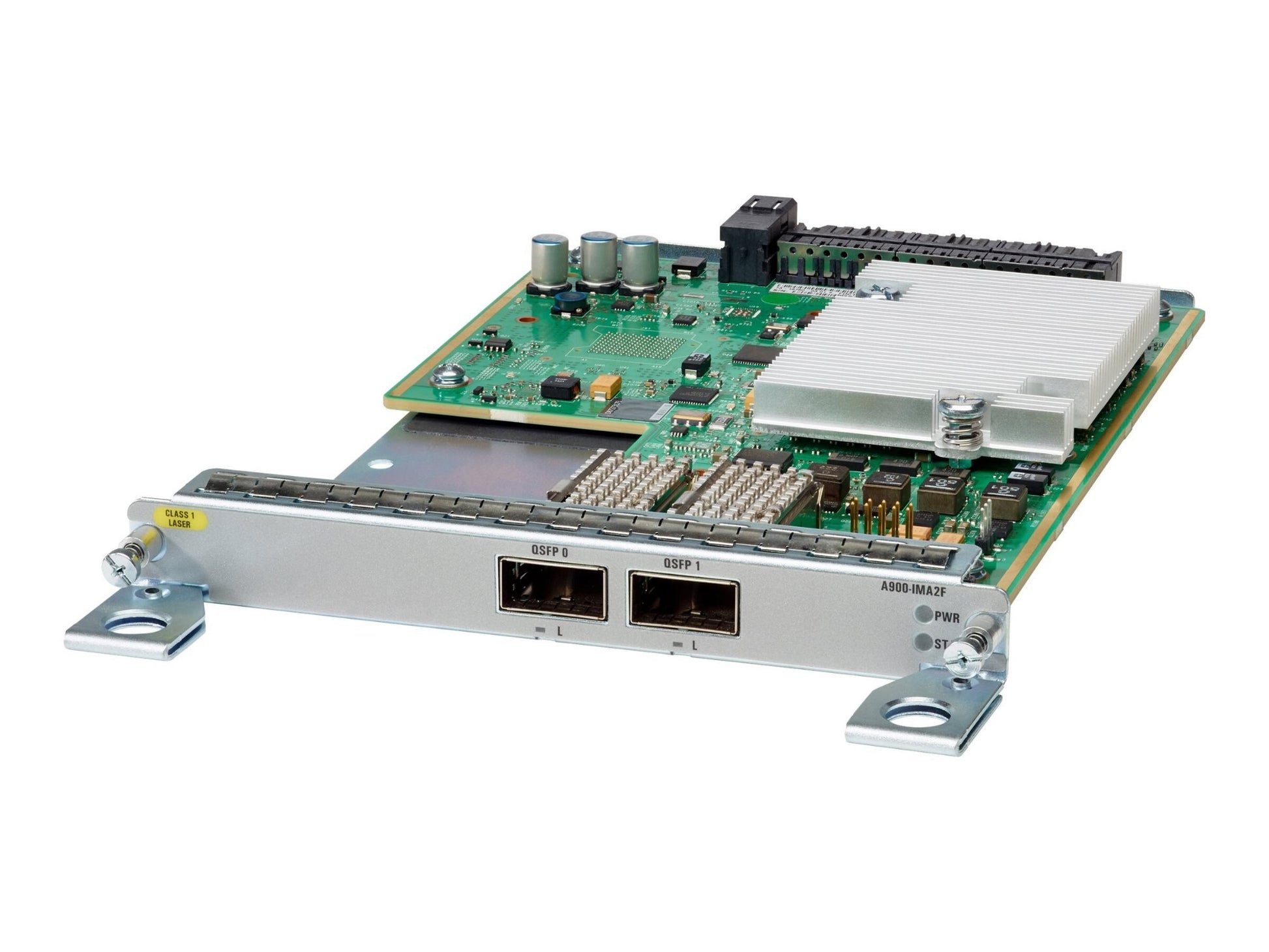

• Cisco A900-IMA2F module with green circuit board and silver frame
1 1

Cisco

Cisco A900-IMA2F | ASR 900 2x40GE QSFP+ Interface Module, OIR-Capable

A900-IMA2F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 2-port 40 Gigabit Ethernet interface module adds QSFP+ connectivity to Cisco ASR 900 Series aggregation routers built on RSP3 route switch processors. It provides 40GE aggregation and uplink capacity with pluggable QSFP+ optics and supports online insertion and removal. It is suited to ASR 902, ASR 903 and ASR 907 chassis where high-speed uplinks are required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, OIR-capable interface module
- Provides 40GE aggregation and uplink connectivity for ASR 900 RSP3-based routers
- Pluggable QSFP+ ports for flexible optics selection
- Slot placement restrictions apply when used alongside A900-IMA8Z, A900-IMA2Z or A900-IMA1C/N560-IMA2C modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x 40 Gigabit Ethernet ports
- QSFP+ optics supported (40GE)
- 12-fibre MPO/MTP ribbon cable supported, up to 70m on OM3 and 100m on OM4 multimode
- ASR 902 (RSP3C-200-S): slot 0
- ASR 903 (RSP3C-400-S): slot 4 or 5
- ASR 903 (RSP3C-200-S): slot 4
- ASR 907: slots 3, 4, 7, 8, 11, 12
- ASR 903 operating ambient limit of 0 to 45\u00b0C with A903-FAN, or 0 to 50\u00b0C with A903-FAN-H

FAQs

Q: Which ASR 900 chassis support the A900-IMA2F?
A: It fits the ASR 902, ASR 903 and ASR 907 chassis with RSP3 route switch processors, in the specific slots listed for each chassis.

Q: Which slots can the module be installed in?
A: On the ASR 902 with RSP3C-200-S it uses slot 0. On the ASR 903 it uses slot 4 or 5 with RSP3C-400-S, or slot 4 with RSP3C-200-S. On the ASR 907 it can be installed in slots 3, 4, 7, 8, 11 and 12.

Q: What optics and cabling does it use?
A: It has two 40GE QSFP+ ports. Multimode links over 12-fibre MPO/MTP ribbon cable are supported up to 70m on OM3 and 100m on OM4.

Q: Can the module be inserted while the router is running?
A: Yes. The module is OIR-capable, so it can be inserted or removed without powering down the chassis.

Q: Are there restrictions when mixing it with other interface modules?
A: Yes. Slot placement restrictions apply when it is used with A900-IMA8Z, A900-IMA2Z or A900-IMA1C/N560-IMA2C modules, so check the compatibility matrix in the datasheet before planning the chassis layout.
