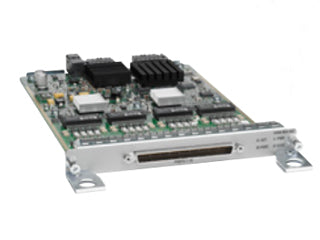

• Cisco A900-IMA16D interface module with silver circuit board and green PCB
1 1

Cisco

Cisco A900-IMA16D | ASR 900 16-Port T1/E1 Interface Module, Patch Panel

A900-IMA16D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 16-port T1/E1 TDM interface module is designed for ASR 900 Series aggregation routers. Ports are software configurable as either 16 T1 or 16 E1, and connect through a single 100-pin high-density connector that requires a breakout cable and patch panel for RJ48 or BNC termination. It suits mobile backhaul and business service deployments that need circuit emulation, offering higher port density than the 8-port A900-IMA8D and fewer ports than the 32-port A900-IMA32D.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Software-selectable T1 or E1 mode for the module
- Circuit emulation (CEM) services for transporting TDM over packet networks
- Online Insertion and Removal (OIR) support
- Designed for converged mobile, residential and business services on ASR 900 Series platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x T1/E1 TDM ports, software configurable as 16 T1 or 16 E1
- T1 and E1 ports cannot be mixed on the same module
- Single 100-pin Amphenol (Amplimite) high-density connector
- Requires patch panel for RJ48 (T1) or BNC (E1) termination
- Power draw: 14W typical, 18W maximum
- Maximum 16 IMA groups per module
- Supported on ASR 900 RSP1 and RSP2; not supported on RSP3
- Compatible with ASR 902 and ASR 903 chassis
- Related accessories: CABLE-16T1E1 (12 ft cable), PANEL-16-BNC (75-ohm BNC breakout), PANEL-32-RJ48 (RJ48 breakout)

FAQs

Q: Can I mix T1 and E1 ports on the same A900-IMA16D module?
A: No. The module operates as either 16 T1 or 16 E1 ports, selected in software. Mixing T1 and E1 on the same module is not supported.

Q: Why do I need a patch panel with this module?
A: The module uses a single 100-pin Amphenol high-density connector rather than individual port jacks. A breakout cable and patch panel such as PANEL-32-RJ48 for RJ48 or PANEL-16-BNC for 75-ohm BNC are used to terminate the individual T1/E1 circuits.

Q: Which ASR 900 route switch processors support this module?
A: It is supported on ASR 900 RSP1 and RSP2. It is not supported on RSP3.

Q: How does the A900-IMA16D differ from the A900-IMA8D and A900-IMA32D?
A: The A900-IMA16D provides 16 T1/E1 ports through a high-density connector and requires a patch panel. The A900-IMA8D offers 8 ports with RJ48C connectors, and the A900-IMA32D offers 32 ports.

Q: What is the power consumption of this interface module?
A: It draws 14W typical and 18W maximum, which should be factored into the chassis power budget.
