Cisco

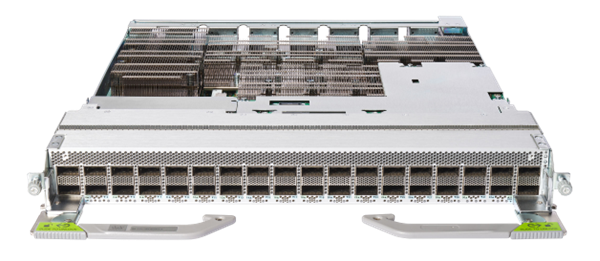

Cisco 88-LC1-12TH24FH-E | Line Card | 12x QSFP28-DD (200G) + 24x QSFP56-DD (400G) | 12 Tbps aggregate

SKU:88-LC1-12TH24FH-E

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density modular line card for 8800 Series systems delivering 12 Tbps aggregate throughput with 12x 200G QSFP28-DD and 24x 400G QSFP56-DD ports. QSFP-DD slots support flexible breakouts and mixed-speed deployments as permitted by the platform, ideal for core, peering, and cloud edge.

Features

- High-density 200G/400G QSFP-DD connectivity
- 12 Tbps line-rate forwarding for scalable core and DCI
- Flexible breakout and mixed-speed operation
- Backward compatibility with lower-speed optics for investment protection
- Designed for carrier-grade resiliency on 8800 platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can I mix 200G and 400G optics on this card?
A: Yes. Mixed speeds are supported on a per-port basis within platform software and hardware constraints.

Q: What optics and cables are supported?
A: QSFP-DD family modules including QSFP28-DD and QSFP56-DD transceivers, plus DAC/AOC, subject to platform compatibility lists.

Q: Is any additional licensing required to enable ports?
A: Generally ports are hardware-enabled; specific software features may require platform licenses. Consult your IOS XR feature licenses.

Q: Does this line card require a specific chassis or supervisor?
A: It must be installed in a compatible 8800 Series chassis with supported supervisors and software releases.

Q: Are transceivers included?
A: No. Optics and cables are sold separately.

Technical Specifications

- Port density: 12x QSFP28-DD (up to 200G each) + 24x QSFP56-DD (up to 400G each)
- Aggregate throughput: 12 Tbps
- Form factor support: QSFP-DD family (accepts QSFP28-DD and QSFP56-DD optics, DAC, and AOC)
- Backward compatibility: supports lower-speed QSFP/QSFP28 where platform allows
- Breakout options: flexible breakout of QSFP-DD ports (e.g., 2x200G, 4x100G, or 8x50G as supported by the chassis/OS)
- Use cases: SP core, DC interconnect, high-capacity aggregation
- Platform compatibility: 8800 Series modular systems (check chassis slot and software release for support)
- Software: IOS XR-based platforms (verify exact release support matrix)
