Cisco 88-LC0-36FH-M | 8800 36x 400G QSFP56-DD Line Card, MACsec
SKU:88-LC0-36FH-M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

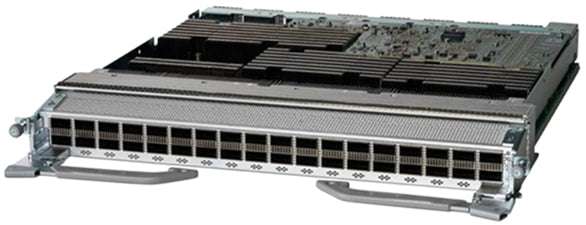

The Cisco 8800 36x 400G QSFP56-DD Line Card with MACsec is a Q200-based, transport-optimised line card for the modular Cisco 8800 chassis. It suits high-density 400G core and aggregation routing in service provider and large network deployments, and the MACsec variant is built for links that need line-rate Layer 2 encryption.
The card provides 36 QSFP56-DD ports with 14.4 Tbps of total capacity. MACsec is supported on all 36 ports, and every port also supports DCO (Digital Coherent Optics) for routed optical networking. Port rates include 400G, 200G, 100G, 40G and 10G, with 4x100G breakout. Class B timing is supported, and the onboard processor is a 4-core Intel CPU with 32 GB DRAM and a 128 GB SSD. This is the MACsec model, so it differs from the 88-LC0-36FH, which has no MACsec. N+1 redundancy requires 8 fabric cards in the chassis.
It is supported by the Cisco 8800 Route Processor (8800-RP) and Route Processor 2 (8800-RP2), and works with all three fabric card generations (88xx-FC, 88xx-FC0 and 88xx-FC1). It can coexist with Q100 line cards and the 88-LC1-36EH P100 line card in the same chassis, and accepts QSFP+, QSFP28, QSFP28-DD and QSFP56-DD optics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- MACsec encryption on all 36 x 400G ports
- Runs Cisco IOS XR, a modular, patchable, scalable and highly available carrier-class operating system
- Supports QSFP+, QSFP28, QSFP28-DD and QSFP56-DD optics through the Cisco pluggable interface
- Flexible port rates from 400G down to 10G with 4x100G breakout
- Ready for routed optical networking with support for all types of 400G DCO
- SRv6-capable EVPN and segment routing
- Automation capability for onboarding
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: 88-LC0-36FH-M
- Ports: 36 x QSFP56-DD
- Capacity: 14.4 Tbps
- MACsec: Supported on all 36 ports
- Timing: Class B timing supported
- DCO optics: Supported on all ports
- CPU / memory / storage: 4-core Intel CPU, 32 GB DRAM, 128 GB SSD
- Fabric cards: 8 required for N+1 redundancy
- Port rates: 400G, 200G, 100G, 40G, 10G
- Breakout support: 4x100G
- Supported pluggables: QSFP+, QSFP28, QSFP28-DD, QSFP56-DD
- Height: 5.334 cm (2.10 in)
- Width: 45.974 cm (18.10 in)
- Length: 45.242 cm (17.812 in)
- Weight: 14.2 kg (31.3 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95%
- Altitude: 0 to 3000 m
- Safety: AS/NZS 62368-1, UL/EN/IEC 62368-1 (3rd edition), CAN/CSA C22.2 No. 62368-1
- RoHS: RoHS 6 compliant, with exceptions for leaded BGA balls and lead press-fit connectors
FAQs
Q: How does this differ from the 88-LC0-36FH?
A: The 88-LC0-36FH-M adds MACsec encryption on all 36 ports. The 88-LC0-36FH does not include MACsec.
Q: Does it need a software licence?
A: Cisco Core/Aggregation Essential and Advantage software subscriptions are ordered separately for the Cisco 8000 series, at 100G and 400G tiers. The hardware PID does not state an included tier.
Q: Which chassis components does it need?
A: It requires a Cisco 8800 chassis with power supplies and a Route Processor (8800-RP or 8800-RP2). It needs 8 fabric cards for N+1 redundancy, and works with all three fabric card generations (88xx-FC, 88xx-FC0 and 88xx-FC1).
Q: Can it be mixed with other line cards in the same chassis?
A: Yes. It can coexist with Q100 line cards and the 88-LC1-36EH P100 line card in the same Cisco 8800 chassis.
Q: Which optics does it accept?
A: It accepts QSFP+, QSFP28, QSFP28-DD and QSFP56-DD optics, including 400G DCO, with port rates of 400G, 200G, 100G, 40G and 10G and 4x100G breakout.
