Cisco

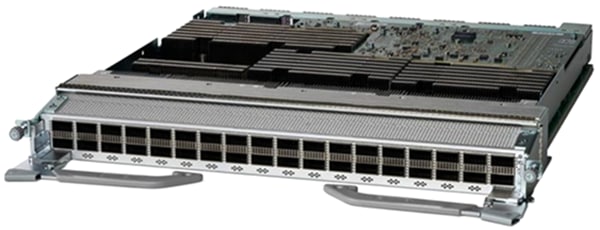

Cisco 88-LC0-36FH-I | 8800 36-Port 400G QSFP56-DD Line Card, No MACsec

SKU:88-LC0-36FH-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 88-LC0-36FH-I is a Silicon One Q200-based, transport-optimised line card for the Cisco 8800 Series modular routers. It is built for metro, high-speed core, aggregation and transport deployments that need dense 400G, with up to 36 x 400G per slot, and it also suits Routed Optical Networking designs using 400G digital coherent optics.

The card provides 36 QSFP56-DD ports delivering 14.4 Tbps of capacity per slot. Ports can run at 400G, 200G, 100G, 40G or 10G, with 4x100G breakout supported. It has no MACsec, which distinguishes it from the 88-LC0-36FH-M variant that includes MACsec. A 4-core Intel CPU, 32 GB of DRAM and a 128 GB SSD handle local processing, and Class B timing is supported. DCO optics are supported on all ports.

It is supported by the 8800-RP and 8800-RP2 route processors and the 88xx-FC, 88xx-FC0 and 88xx-FC1 fabric cards, and requires 8 fabric cards for N+1 redundancy. It can sit alongside Q100 line cards and the 88-LC1-36EH P100 line card in the same chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier-class Cisco IOS XR Software
- Flexible port rate configuration from 400G down to 10G with 4x100G breakout
- Routed Optical Networking ready, supporting all types of 400G Digital Coherent Optics
- SRv6-capable EVPN and segment routing
- Enhanced automation capability for onboarding
- Works with Cisco Crosswork Network Automation
- Pay-as-you-grow Flexible Consumption Model

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 36 x QSFP56-DD
- Port rates: 400G, 200G, 100G, 40G, 10G
- Breakout support: 4x100G
- Capacity: 14.4 Tbps per slot
- ASIC: Silicon One Q200
- Processor, memory and storage: 4-core Intel CPU, 32 GB DRAM, 128 GB SSD
- Timing: Class B
- Optics: DCO optics supported on all ports
- Pluggable optics families: QSFP+, QSFP28, QSFP28-DD, QSFP56-DD
- MACsec: Not supported
- Fabric card requirement: 8 fabric cards for N+1 redundancy
- Height: 5.334 cm (2.10 in.)
- Width: 45.974 cm (18.10 in.)
- Length: 45.242 cm (17.812 in.)
- Weight: 12.3 kg (27 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95%
- Altitude: 0 to 3000 m
- Safety: AS/NZS 62368-1, UL/CSA/EN 62368-1 (3rd ed.), GB 4943-2022
- RoHS: RoHS 6 compliant with exceptions for leaded BGA balls and lead press fit connectors

FAQs

Q: What is the difference between 88-LC0-36FH-I and 88-LC0-36FH-M?
A: Both are 36-port QSFP56-DD line cards based on the Silicon One Q200. The -I variant has no MACsec, while the -M variant includes MACsec.

Q: Which route processors and fabric cards does it work with?
A: It is supported by the 8800-RP and 8800-RP2 route processors and by the 88xx-FC, 88xx-FC0 and 88xx-FC1 fabric cards. It needs 8 fabric cards for N+1 redundancy.

Q: Can it be installed alongside other 8800 line cards?
A: Yes. It can coexist with Q100 line cards and the 88-LC1-36EH P100 line card in the same chassis.

Q: Does it support coherent optics?
A: Yes. DCO optics are supported on all ports, which makes it suitable for Routed Optical Networking with 400G digital coherent optics.

Q: What port speeds can it run?
A: Ports support 400G, 200G, 100G, 40G and 10G rates, with 4x100G breakout available.
