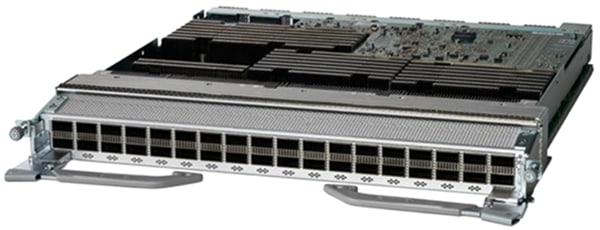

Cisco 88-LC0-36FH-C1 | 8800 36-Port 400GE QSFP-DD Line Card, C1, No MACsec
SKU:88-LC0-36FH-C1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a Q200-based, transport-optimised line card for Cisco 8800 modular routers. It suits service providers and large networks that need high-density 400GE aggregation, core and transport or data centre interconnect deployments, including coherent DCO optics on every port.
The card provides 36 x 400GE QSFP-DD ports (QSFP56-DD) for 14.4 Tbps of line card capacity. Breakout options support up to 144 x 100G/25G/10G ports, or up to 36 ports of 40G. Onboard compute is a 4-core Intel CPU with 32 GB DRAM and 128 GB SSD, and Class B timing is supported. This 88-LC0-36FH-C1 SKU is the non-MACsec model with the C1 licence designation, so it does not provide MACsec encryption. Eight fabric cards are required for N+1 redundancy.
The card is supported in Cisco 8804, 8808, 8812 and 8818 chassis with 8800-RP and 8800-RP2 route processors and 88xx-FC, FC0 and FC1 fabric cards. It can share a chassis with Q100 line cards and the 88-LC1-36EH P100 line card, and accepts QSFP56-DD, QSFP-DD and QSFP28 optics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Q200-based transport-optimised line card with 36 ports of 400G
- 14.4 Tbps of bandwidth per line card
- Breakout support to 100G/25G/10G, or 40G
- Coherent DCO optics supported on all ports
- Class B timing support
- Can coexist with Q100 line cards and the 88-LC1-36EH P100 line card in the same chassis
- Supported in Cisco 8804, 8808, 8812 and 8818 chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: 88-LC0-36FH
- Ports: 36 x 400GE QSFP56-DD (QSFP-DD form factor)
- Line card capacity: 14.4 Tbps
- Silicon: Silicon One Q200
- Compute: 4-core Intel CPU, 32 GB DRAM, 128 GB SSD
- Timing: Class B timing support
- Optics: DCO (coherent) optics supported on all ports
- MACsec: Not supported on this model
- Breakout: Up to 144 x 100G/25G/10G ports, or up to 36 ports of 40G
- Fabric redundancy: 8 fabric cards required for N+1
- Route processor support: 8800-RP and 8800-RP2
- Fabric card support: 88xx-FC, 88xx-FC0 and 88xx-FC1
- Height: 5.334 cm (2.10 in.)
- Width: 45.974 cm (18.10 in.)
- Length: 45.242 cm (17.812 in.)
- Weight: 12.3 kg (27 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95% +/- 2%
- Altitude: 0 to 3000 m
- Regulatory: CE marked (2014/30/EU and 2014/35/EU)
FAQs
Q: Does this line card support MACsec?
A: No. This 88-LC0-36FH-C1 SKU is the non-MACsec model. MACsec on all 36 x 400G ports is provided by the 88-LC0-36FH-M model.
Q: Which chassis and route processors does it work with?
A: It is supported in Cisco 8804, 8808, 8812 and 8818 chassis. It works with the 8800-RP and 8800-RP2 route processors and with 88xx-FC, FC0 and FC1 fabric cards.
Q: Which optics can I use in the ports?
A: The ports take QSFP56-DD, QSFP-DD and QSFP28 optics. Coherent DCO optics are supported on all 36 ports.
Q: Can it be mixed with other line cards in the same chassis?
A: Yes. It can coexist with Q100 line cards and the 88-LC1-36EH P100 line card in the same chassis, with IOS XR NPU compatibility mode selecting Q100, Q200 or P100 operation.
Q: How many fabric cards are needed?
A: Eight fabric cards are required for N+1 redundancy with this line card.
Q: Does it need a licence?
A: Cisco 8000 series software is licensed through Cisco Smart Licensing with Essentials or Advantage tiers. This SKU carries the C1 licence designation.
