Cisco

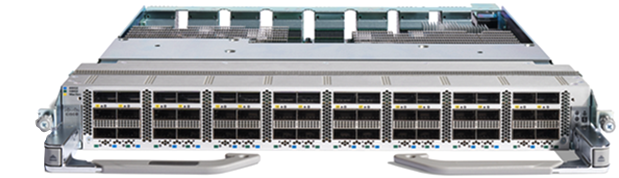

Cisco 88-LC0-34H14FH-W | 8800 Line Card, 34x100G + 14x400G, 9 Tbps, MACsec

SKU:88-LC0-34H14FH-W

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 88-LC0-34H14FH is a Q200-based, transport-optimised combo line card for Cisco 8800 Series modular routers. It suits service provider and large-enterprise core, aggregation, transport and data centre spine and leaf roles, and is a practical fit for networks migrating from 100G to 400G or needing MACsec on selected 100G links.

The card provides 34 QSFP28 100G ports and 14 QSFP56-DD (QSFP-DD) 400G ports with 9 Tbps of line card capacity, built on the Cisco Silicon One Q200 ASIC. It can also run as a low-power 48x100G card, although 400G operation requires medium power mode. MACsec encryption is available on 16 of the 100G ports, and breakout is supported at 4x100G on the 400G ports and 4x10/25G on the 100G ports. An onboard 4-core Intel CPU with 32 GB DRAM and a 128 GB SSD supports local processing, and Class B timing and DCO optics on all ports are supported.

The line card is supported in Cisco 8800 modular chassis (8804, 8808, 8812 and 8818) with the 8800-RP and 8800-RP2 route processors and all three fabric card generations. It can share a chassis with Q100 line cards and the 88-LC1-36EH. IOS XR 7.3.3 and 7.5.1 or later is required, with software licensed separately under the Cisco IOS XR licensing model.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Combo 100G/400G line card for a smooth migration from 100G to 400G
- Can run as a low-power 48 x 100G QSFP card, with medium power mode required for 400G
- MACsec encryption on 16 of the 100G ports
- Flexible breakout on both 100G and 400G port types
- Cisco Silicon One Q200 with deep buffering and high-scale routing
- Supports DCO coherent optics on all ports and Class B timing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: 88-LC0-34H14FH
- Ports: 34 x 100GbE QSFP28 plus 14 x 400GbE QSFP56-DD (QSFP-DD)
- Alternate mode: 48 x 100G in low-power mode
- Line card capacity: 9 Tbps
- ASIC: Cisco Silicon One Q200
- MACsec: 16 x 100G ports
- Breakout support: 4x100G on 400G ports, 4x10/25G on 100G ports
- Onboard CPU: 4-core Intel
- Memory: 32 GB DRAM
- Storage: 128 GB SSD
- Timing: Class B supported
- Optics: DCO optics supported on all ports
- Height: 5.334 cm (2.10 in.)
- Width: 45.974 cm (18.10 in.)
- Length: 45.242 cm (17.812 in.)
- Weight: 11.1 kg (24.471 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95%
- Altitude: 0 to 3000 m
- Safety: AS/NZS 62368-1 3rd ed., UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, IEC 62368-1
- Regulatory: CE marking, RoHS 6 compliant with exceptions

FAQs

Q: Does this line card need a licence?
A: The hardware itself needs no licence to be installed, but Cisco 8000 IOS XR software is licensed separately under the Cisco IOS XR licensing model. This line card falls in product category B.

Q: Which chassis and route processors does it work with?
A: It is supported in Cisco 8800 modular chassis (8804, 8808, 8812 and 8818) with the 8800-RP and 8800-RP2 route processors and all three fabric card generations (88xx-FC, 88xx-FC0 and 88xx-FC1).

Q: Can it be used alongside other 8800 line cards?
A: Yes. It can coexist with all Q100 line cards and the 88-LC1-36EH (P100) line card in the same chassis.

Q: What software release is required?
A: IOS XR 7.3.3 and 7.5.1 or later are supported.

Q: Can all ports run at full speed in every power mode?
A: No. Low-power mode supports 100G only, running the card as a 48 x 100G QSFP card. Medium power mode is required for 400G operation on the QSFP-DD ports.
