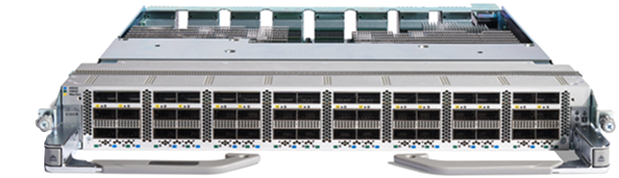

Cisco 88-LC0-34H14FH | 8800 Line Card, 34x 100G + 14x 400G QSFP-DD, 9 Tbps
SKU:88-LC0-34H14FH
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The 88-LC0-34H14FH is a Silicon One Q200-based, transport-optimised line card for Cisco 8800 series modular routers. It suits metro, high-speed core and aggregation roles, including routed optical networking deployments.
The card provides 34 QSFP28 100G ports plus 14 QSFP56-DD 400G ports, or can be run as 48x 100G, with 9 Tbps of capacity. MACsec encryption is supported on 16 of the 100G ports. Port rates of 400G, 200G, 100G, 40G and 10G are supported, with 4x100G breakout, and DCO optics are supported on all ports. Onboard resources include a 4-core Intel CPU, 32 GB of DRAM and a 128 GB SSD, and the card supports Class B timing. Software is ordered separately under Cisco 8000 series Core/Aggregation licences in Essential or Advantage tiers.
The line card is supported by the 8800-RP and 8800-RP2 route processors and works with 88xx-FC, 88xx-FC0 and 88xx-FC1 fabric cards. It can share a chassis with all Q100 line cards and the 88-LC1-36EH P100 line card, and accepts QSFP+, QSFP28, QSFP28-DD and QSFP56-DD optics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs carrier-class Cisco IOS XR software
- Pluggable interfaces for QSFP+, QSFP28, QSFP28-DD and QSFP56-DD optics
- Flexible port rates of 400G, 200G, 100G, 40G and 10G with 4x100G breakout
- Ready for routed optical networking with 400G digital coherent optics (DCO)
- MACsec encryption on 16 of the 100G ports
- SRv6-capable EVPN and segment routing
- Enhanced automation capability for onboarding
- Pay-as-you-grow Flexible Consumption Model
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: 88-LC0-34H14FH
- Ports: 34x QSFP28 100G plus 14x QSFP56-DD 400G, or 48x 100G
- Capacity: 9 Tbps
- Silicon: Cisco Silicon One Q200
- Processor, memory and storage: 4-core Intel CPU, 32 GB DRAM, 128 GB SSD
- Timing: Class B timing supported
- Optics: DCO optics supported on all ports
- Breakout: 4x100G
- MACsec: 16 ports
- Port rates: 400G, 200G, 100G, 40G, 10G
- Pluggable interfaces: QSFP+, QSFP28, QSFP28-DD, QSFP56-DD
- Height: 5.334 cm (2.10 in.)
- Width: 45.974 cm (18.10 in.)
- Length: 45.242 cm (17.812 in.)
- Weight: 11.1 kg (24.471 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95%
- Altitude: 0 to 3000 m
- Safety: AS/NZS 62368-1, EN 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, GB 4943-2022
- RoHS: RoHS 6 compliant with exceptions for leaded BGA balls and lead press fit connectors
FAQs
Q: Does this line card need a software licence?
A: Software is ordered separately under Cisco 8000 series Core/Aggregation licences, available in Essential or Advantage tiers. These come as 100G or 400G subscriptions with 3 or 5 year terms, or as Right-to-Use licences.
Q: Which route processors and fabric cards does it work with?
A: It is supported by the 8800-RP and 8800-RP2 route processors. It works with all three fabric card generations: 88xx-FC, 88xx-FC0 and 88xx-FC1.
Q: Can it be installed alongside other 8800 line cards?
A: Yes. It can coexist with all Q100 line cards and the 88-LC1-36EH P100 line card in the same chassis.
Q: What optics can the ports take?
A: The ports accept QSFP+, QSFP28, QSFP28-DD and QSFP56-DD optics, including 400G DCO. 4x100G breakout is supported.
Q: How many ports support MACsec?
A: MACsec is supported on 16 of the 100G ports.
