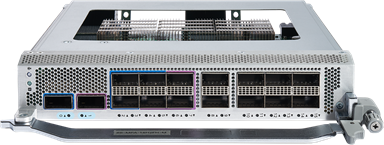

Cisco 86-MPA-14H2FH-M | 8608 Combo Port Adapter, 16x100G or 8x100G+2x400G
SKU:86-MPA-14H2FH-M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco 86-MPA-14H2FH-M is a combo modular port adapter for the Cisco 8608, the 7RU centralised router in the Cisco 8000 Series. It suits service provider core, edge and aggregation roles that need a mix of 100GbE and 400GbE interfaces and coherent pluggable links on a single card.
The adapter delivers 1.6 Tbps of throughput across 14 QSFP28 ports and 2 QSFP56-DD ports. It can run in 16x100GbE, 12x100GbE plus 1x400GbE, or 8x100GbE plus 2x400GbE modes, and other port combinations are possible through breakout. MACsec is available on all ports, and PTP timing performance is Class B/C. Using a 400GbE port shuts down some of the 100GbE ports, so the mode you choose sets the usable port mix.
QSFP28 optics go in the 100GbE ports, while QSFP56-DD and DCO optics, including ZR, ZR+ and Bright ZR+, go in the 400GbE ports for Routed Optical Networking. The adapter is hot-pluggable within the Cisco 8608 chassis (8608-SYS), which holds up to 8 MPAs alongside the 8608-RP route processor and the 8608-SC0-128 switch card.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Combo 100GbE and 400GbE port design for a flexible interface mix on one card
- MACsec encryption support on all ports
- Ready for Cisco Routed Optical Networking with wide DCO support on all 400GbE ports
- Class B/C PTP timing performance
- Breakout support for additional port combinations
- Hot-pluggable modular design within the Cisco 8608 chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Modular Port Adapter (MPA) for the Cisco 8608
- Bandwidth: 1.6 Tbps maximum throughput
- QSFP28 physical ports: 14 (100 GbE)
- QSFP56-DD physical ports: 2 (400 GbE)
- Port modes: 16x100GbE, 12x100GbE + 1x400GbE, or 8x100GbE + 2x400GbE
- Breakout: additional port combinations possible
- MACsec: Yes, on all ports
- PTP timing performance: Class B/C
- Routed Optical Networking: DCO support including ZR, ZR+ and Bright ZR+ on all 400GbE ports
- Dimensions (H x W x D): 1.7 x 9.3 x 9.9 in. (4.3 x 23.62 x 25.12 cm)
- Weight: 5.1 lb (2.3 kg)
- Host chassis: Cisco 8608 (7RU, 12.8 Tbps, Cisco Silicon One Q200), up to 8 MPAs at 1.6 Tbps per MPA
FAQs
Q: Which chassis does this port adapter fit?
A: It is designed for the Cisco 8608 chassis (8608-SYS), which holds up to 8 MPAs alongside the 8608-RP route processor and the 8608-SC0-128 switch card.
Q: Which port modes does it support?
A: It runs in 16x100GbE, 12x100GbE plus 1x400GbE, or 8x100GbE plus 2x400GbE modes. Other combinations are possible using breakout. Using a 400GbE port shuts down some of the 100GbE ports.
Q: Which optics can I use in the ports?
A: QSFP28 optics go in the 100GbE ports. QSFP56-DD and DCO optics, including ZR, ZR+ and Bright ZR+, go in the 400GbE ports.
Q: Does it need a software licence?
A: The adapter itself is hardware. The Cisco 8608 platform runs Cisco IOS XR under the Flexible Consumption Model 2.0 with Essentials and Advantage software tiers, sold as Right-to-Use licences plus term-based Software Innovation Access licences.
Q: How is the adapter powered?
A: It is powered from the Cisco 8608 chassis, which uses PSU3.2KW-ACPI, PSU3.2KW-DCPI or PSU4.3KW-HVPI power supplies in 2+2 or 3+1 redundancy.
