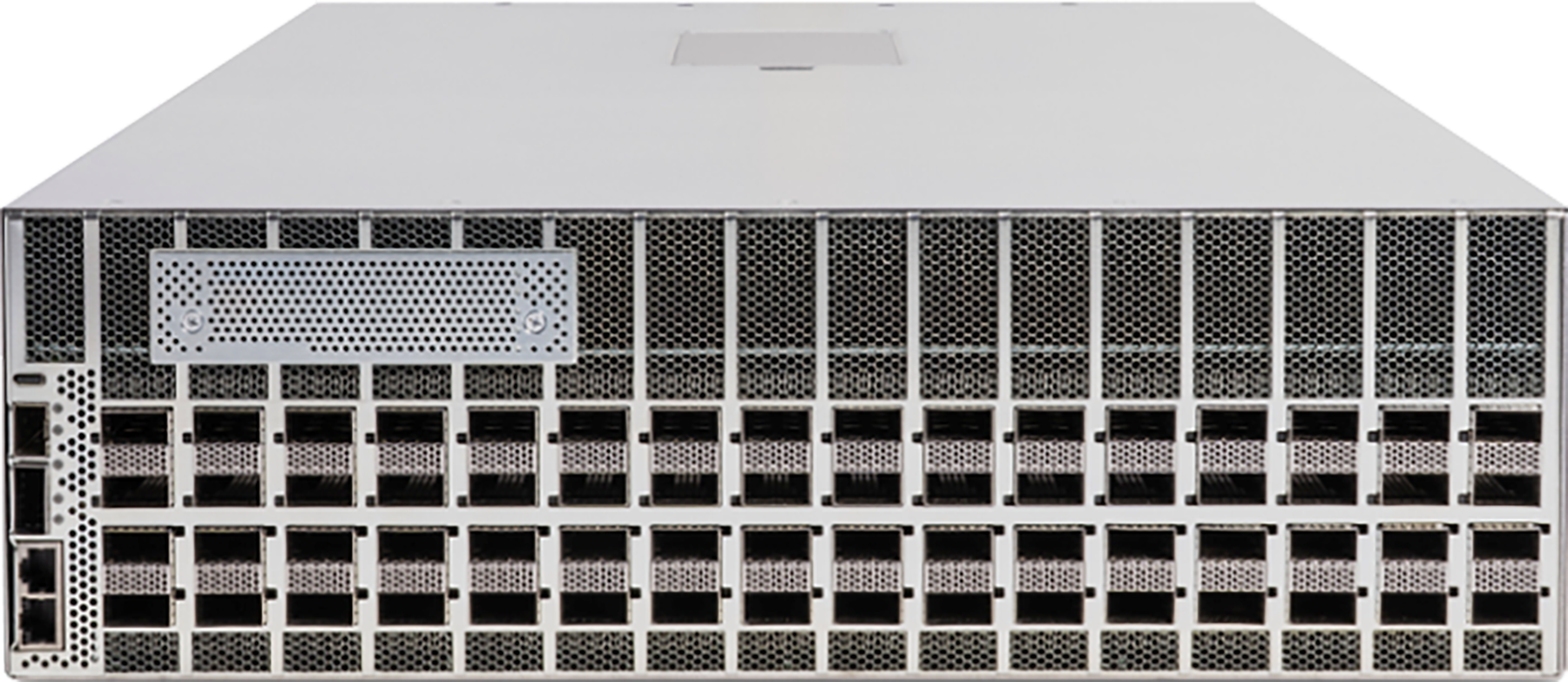

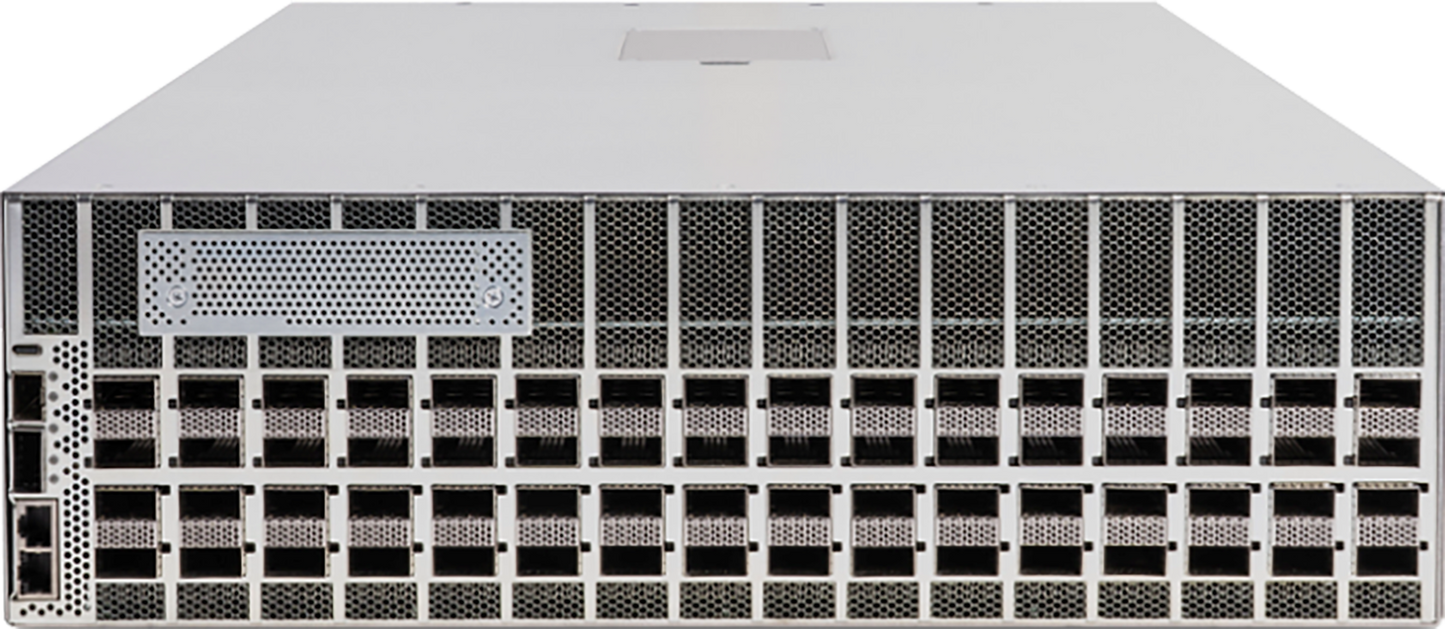

• Cisco 8223-64EF-AC-MT silver server rack with 64x800G OSFP drive bays
1 1

Cisco

Cisco 8223-64EF-AC-MT | 64x800G OSFP; OS: IOS XR

8223-64EF-AC-MT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-performance core/router system with 64 native 800G OSFP ports for up to 51.2 Tbps capacity. Built on IOS XR software, it delivers carrier-grade routing, segment routing (SR-MPLS/SRv6), EVPN/VXLAN, and rich QoS. OSFP 800G ports support flexible breakouts (2x400G, 4x200G, 8x100G) to simplify migration from 100G/200G/400G. Designed for operational efficiency with model-driven telemetry, gNMI/NETCONF/RESTCONF, and programmatic APIs. Modular, redundant cooling and power support continuous operation in data center and service provider environments.

Features

64-port 800G OSFP for extreme scale
- IOS XR software with SR-MPLS/SRv6 and EVPN
- 51.2 Tbps class switching capacity
- Operational automation via telemetry and open APIs
- Redundant, hot-swappable power and cooling
- Flexible 800G-to-400G/200G/100G breakout options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Port density: 64 x 800G
- Port form factor: OSFP 800G
- Per-port speeds: 800G/400G/200G/100G (via breakouts)
- System capacity: up to 51.2 Tbps
- Operating system: IOS XR
- Forwarding features: IPv4/IPv6, MPLS, Segment Routing (SR-MPLS/SRv6), EVPN/VXLAN
- QoS: hierarchical queuing, shaping, and policing
- Telemetry/automation: model-driven telemetry, gNMI/NETCONF/RESTCONF, SNMP
- Management: CLI, APIs, gRPC
- Timing: SyncE and IEEE 1588v2 (PTP) support
- Redundancy: hot-swappable fans and power supplies
- SD-WAN: not supported (core routing platform)
- LTE: not supported
- Optics: supports 800G OSFP pluggables; breakout to 2x400G/4x200G/8x100G where supported

FAQs

Q: What is the difference between OSFP and QSFP-DD800 versions?
A: Both offer 800G per port; they differ in transceiver form factor and optics ecosystem. Choose based on your preferred optics supply and existing plant.

Q: Does it run IOS XR?
A: Yes. This model runs IOS XR for carrier-grade routing and automation.

Q: Can I connect 400G optics directly?
A: Yes, using supported breakouts (2x400G) or native 400G optics where the platform and port hardware support them. Validate in the software/hardware compatibility list.

Q: Is this platform intended for SD-WAN?
A: No. It targets core, peering, and data center routing roles rather than SD-WAN edge.

Q: What telemetry options are available?
A: Model-driven telemetry with gNMI, plus NETCONF/RESTCONF, SNMP, and gRPC-based streaming.
