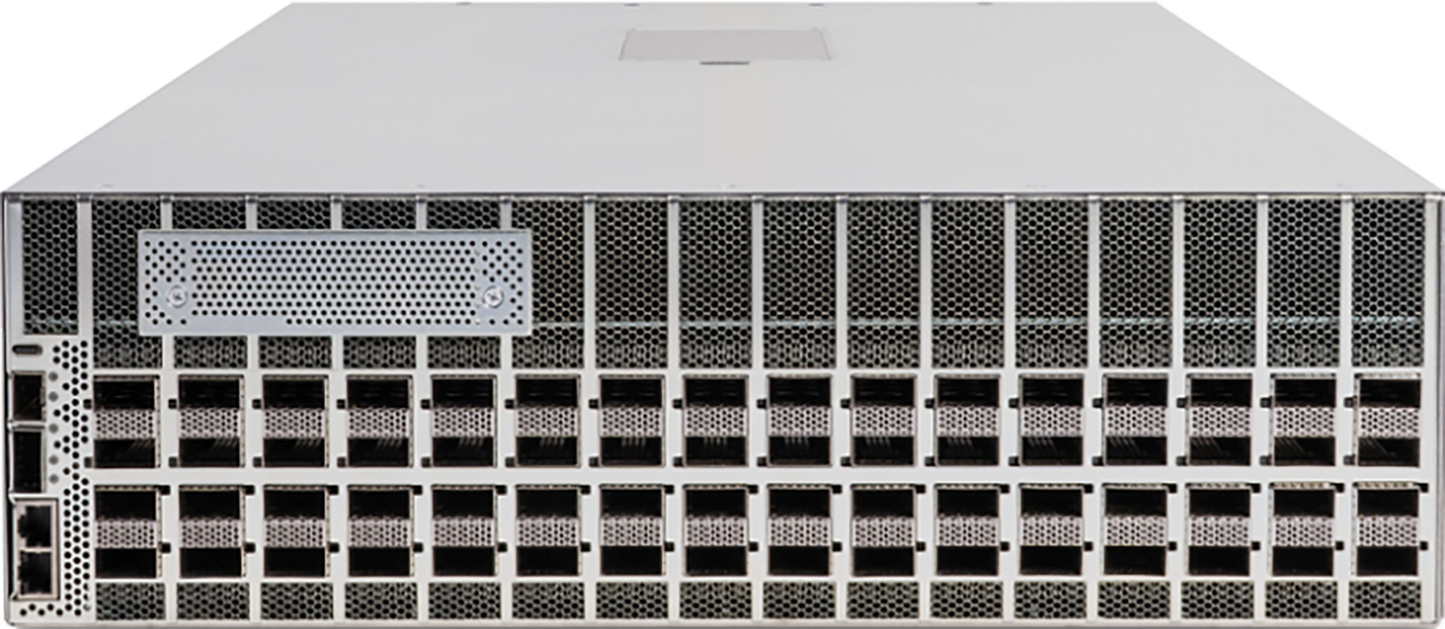

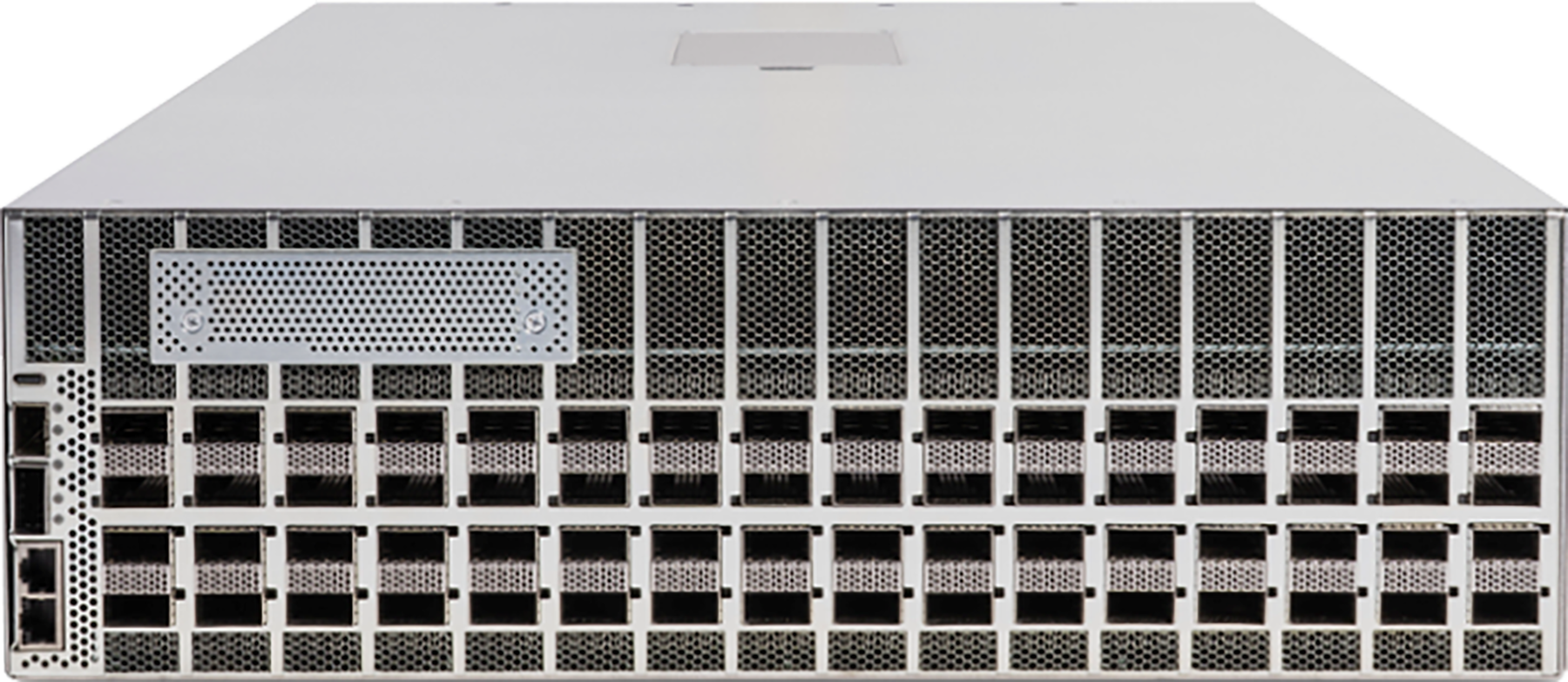

• Cisco 8223-64E-MO-AZD silver server rack with 64x800G QSFP-DD800 bays
1 1

Cisco

Cisco 8223-64E-MO-AZD | 64x800G QSFP-DD800

8223-64E-MO-AZD

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density core/router platform delivering 64 native 800G ports in QSFP-DD800, enabling up to 51.2 Tbps of system capacity. The system is engineered for large-scale IP/MPLS, EVPN, and segment routing deployments with deep QoS and traffic engineering. QSFP-DD800 ports support common breakouts (2x400G, 4x200G, 8x100G) for flexible topology design. The platform is built for model-driven operations with streaming telemetry and modern APIs, and is designed with front-to-back airflow and modular, redundant fans and power supplies to fit data center and telco environments.

Features

64-port 800G QSFP-DD800 for maximum density and flexibility
- 51.2 Tbps class fabric for large-scale deployments
- Comprehensive L2/L3, MPLS, EVPN, and segment routing feature set
- Model-driven operations with streaming telemetry and open APIs
- Redundant, hot-swappable fans and power supplies
- Flexible breakouts to 400G/200G/100G for smooth migration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Port density: 64 x 800G
- Port form factor: QSFP-DD800
- Per-port speeds: 800G/400G/200G/100G (via breakouts)
- System capacity: up to 51.2 Tbps
- Forwarding features: IPv4/IPv6, MPLS, Segment Routing (SR-MPLS/SRv6), EVPN/VXLAN
- QoS: hierarchical QoS, traffic shaping and policing
- Telemetry/automation: model-driven telemetry, gNMI/NETCONF/RESTCONF, SNMP
- Management: CLI, APIs, gRPC
- Timing: SyncE and IEEE 1588v2 (PTP) support
- Redundancy: hot-swappable fans and power supplies
- SD-WAN: not supported (core routing platform)
- LTE: not supported
- Optics: supports 800G QSFP-DD800 pluggables; breakout to 2x400G/4x200G/8x100G where supported by optics and software

FAQs

Q: What breakout options are supported on the 800G QSFP-DD800 ports?
A: Typical breakouts include 2x400G, 4x200G, and 8x100G, subject to the transceiver/cable used and software support.

Q: Is this platform suitable for SD-WAN roles?
A: No. It is a high-density core/peering/data-center router and does not target SD-WAN edge use cases.

Q: Does the system support segment routing and EVPN?
A: Yes. It supports SR-MPLS/SRv6 and EVPN for scalable transport and L2/L3 services.

Q: Are the power supplies and fans field-replaceable?
A: Yes. Fans and power supplies are modular and hot-swappable for high availability.

Q: Which optics do I need for 800G short-reach vs longer-reach links?
A: Select 800G pluggables appropriate to the desired reach (e.g., short-reach multimode vs single-mode standards). Consult the supported transceiver matrix for specific part numbers and distances.
