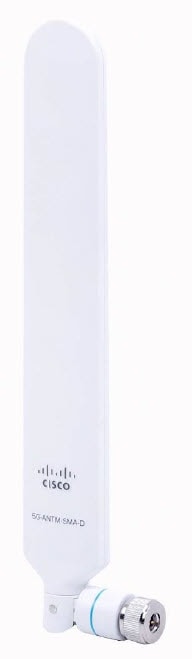

• Cisco 5G-ANTM-SMA-D white dipole antenna with SMA connector
1 1

Cisco

Cisco 5G-ANTM-SMA-D | 5G Sub-6GHz/LTE Indoor Swivel Dipole Antenna, SMA-Male

5G-ANTM-SMA-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 5G Sub-6GHz/LTE swivel-mount dipole antenna is an indoor, omnidirectional antenna with an SMA-male connector. It suits IoT devices, gateways, set-top boxes and security equipment that use 5G NR FR1 radios as well as 2G, 3G and 4G LTE radios. It is documented in Cisco's antenna guide for industrial routers and industrial wireless access points, including the Catalyst IR1100 Rugged Series.

The antenna covers 617-960 MHz, 1430-3500 MHz and 3500-6000 MHz, with a nominal gain of 1.2 dBi, 2.5 dBi and 5.5 dBi across those three ranges respectively. It has vertical polarisation and a 50 Ohm nominal impedance. The straight length is 223.5 mm and the weight is 50 g, and it is optimised for both straight and 90-degree bent positions. It is rated IP65 with an operating range of -40 to +85 C, although it is intended for indoor use only.

This is a passive antenna with no power supply, and it withstands 3 W of input power. Installation is tool-free: it connects directly to a dedicated SMA antenna port on the device. Extension cables, bases and other accessories are sold separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports 5G NR FR1 radios and 2G, 3G and 4G LTE radios
- Swivel-mount design for gateways, set-top boxes and security devices
- Optimised for straight and 90-degree bent positions
- Tool-free installation directly onto a dedicated SMA antenna port
- DC-grounded ESD protection
- Omnidirectional radiation pattern with vertical polarisation
- IP65 rated with a -40 to +85 C operating range

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole
- Radiation pattern: Omnidirectional
- Frequency range: 617-960 MHz, 1430-3500 MHz, 3500-6000 MHz
- Gain (617-960 MHz): 1.2 dBi +/-1.2 dB
- Gain (1430-3500 MHz): 2.5 dBi +/-1.5 dB
- Gain (3500-6000 MHz): 5.5 dBi +/-3.5 dB
- Average efficiency (617-960 MHz): 45%
- Average efficiency (1430-3500 MHz): 65%
- Average efficiency (3500-6000 MHz): 70%
- Nominal impedance: 50 Ohms
- Return loss: -5 dB or better across all bands
- Polarisation: Vertical
- Power withstanding: 3 W
- ESD protection: DC grounded
- Connector: SMA-Male
- Length (straight): 223.5 mm
- Width: 30.45 mm
- Weight: 50 g
- Installation torque: initial under 3 ozf-in, mated 12-21 ozf-in
- Operating temperature: -40 to +85 C
- Storage temperature: -40 to +85 C
- Ingress protection: IP65
- Salt mist: 96 hours
- RoHS compliant: Yes

FAQs

Q: Is this antenna suitable for outdoor installation?
A: No. It is intended for indoor use only, even though the housing is rated IP65.

Q: What connector does it use?
A: It has an SMA-male connector and attaches directly to a dedicated SMA antenna port on the device.

Q: Does it need a power supply?
A: No. It is a passive antenna. It withstands up to 3 W of input power.

Q: Which Cisco devices is it documented for?
A: It appears in Cisco's antenna guide for industrial routers and industrial wireless access points, including the Catalyst IR1100 Rugged Series. It suits any device with an SMA antenna port that supports 5G or LTE Sub-6GHz bands.

Q: Are extension cables or bases included with the antenna?
A: Extension cables, bases and other accessories are sold separately.
