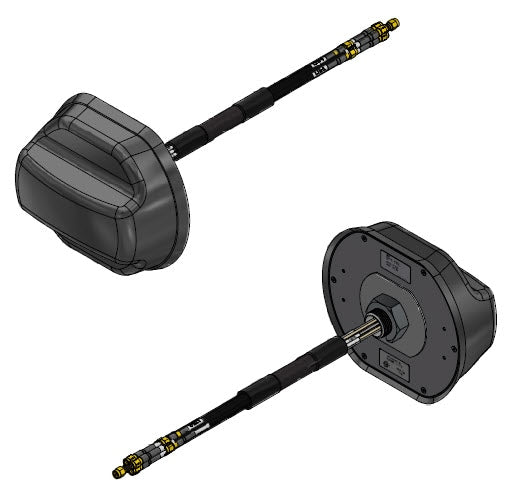

Cisco 5G-ANTM-O-4-B | 9-in-1 5G/LTE/Wi-Fi/GNSS Outdoor Antenna, Black

5G-ANTM-O-4-B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 9-in-1 multi-element antenna is a rugged, low-profile outdoor and vehicle antenna that combines cellular, Wi-Fi and GNSS in a single IP67 housing. It is built for transportation, rail and fixed outdoor installations where one antenna must cover 4G LTE, 5G sub-6GHz, dual-band Wi-Fi and positioning, and it connects to Cisco industrial routers such as the IR1100 and IR1800 series.

The housing carries nine ports: four LTE/5G elements (two primary and two diversity), four dual-band 802.11ac (Wi-Fi 5) elements and one active GNSS element. Cellular coverage spans 617-960 MHz, 1710-2200 MHz, 2300-2690 MHz, 3400-3800 MHz and 5150-5950 MHz, while Wi-Fi covers 2400-2500 MHz and 4900-5900 MHz. The GNSS element covers 1565-1608 MHz with a 26 dB typical amplifier gain. Each element has its own 17 ft (5.2 m) cable, terminated in SMA plugs for LTE/5G and GNSS and reverse-polarity SMA plugs for Wi-Fi.

It mounts on a 1-inch stud with a slotted jam nut and is rated for -40 C to +85 C. The thermoplastic housing is UV-stable and meets EN 50155:2007 and AAR requirements for rail applications. It can be fitted to a ceiling, an indoor wall or an outdoor wall, using the optional 5G-ANTM-GD ground disc or 5G-ANTM-BRACKET L-shaped bracket where the mounting method requires them.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wideband coverage for 4G LTE, 5G FR1 and dual-band Wi-Fi 5 in a single low-profile housing
- Proprietary high-rejection filtering gives superior out-of-band rejection across GNSS frequencies
- Active GNSS element offsets the loss of its 17 ft cable
- IP67 design protects against water and dust ingress in severe environments when installed on a sealed surface
- Meets EN 50155:2007 and AAR requirements for rail applications
- Metal 1-inch stud mount with slotted jam nut and a single cable exit for easier installation or replacement
- Contour-matching gasket seals the radome to the baseplate, with a 3M VHB pad for anti-rotation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Multi-element 9-in-1 LTE/5G/Wi-Fi/GNSS, 9 ports
- Elements: 4x LTE/5G (2 primary, 2 diversity), 4x Wi-Fi, 1x GNSS
- Cellular coverage: 4G LTE and 5G FR1, 617-960 MHz, 1710-2200 MHz, 2300-2690 MHz, 3400-3800 MHz, 5150-5950 MHz
- Wi-Fi: dual-band 802.11ac (Wi-Fi 5), 2400-2500 MHz and 4900-5900 MHz
- Wi-Fi 5 GHz max gain: 11.4 dB, average efficiency 59%
- GNSS frequency band: 1565-1608 MHz
- GNSS amplifier gain: 26 dB typical at 3.0 VDC
- GNSS operating voltage: 2.8-6.0 V DC, 25 mA typical
- GNSS noise figure: less than 2.0 dB typical
- Polarisation (LTE/Wi-Fi): Linear
- Nominal impedance: 50 ohms
- Maximum power: 25 W
- Cables: 17 ft (5.2 m) per element
- Connectors: SMA plug (LTE/5G, GNSS), reverse-polarity SMA plug (Wi-Fi)
- Mounting: 1-inch stud mount with slotted jam nut
- Dimensions (L x W x H): 176.0 x 154.8 x 76.5 mm
- Weight: 2.2 kg
- Housing: UV-stable thermoplastic, UL 94 HB, UL 746C F1
- Operating temperature: -40 C to +85 C
- Ingress protection: IP67 when installed on a sealed surface
- Rail compliance: EN 50155:2007 and AAR

FAQs

Q: Which Cisco devices does this antenna connect to?
A: It connects to Cisco industrial routers. The installation guide is published under the Catalyst IR1100 Rugged Series, and the 5G sub-6GHz pluggable module is covered for the IR1800.

Q: Does the antenna need external power?
A: No external power supply is needed. The active GNSS element is fed with 2.8-6.0 V DC (25 mA typical) from the connected router.

Q: How does it mount?
A: It uses a 1-inch stud mount with a slotted jam nut. The optional 5G-ANTM-GD ground disc is required for ceiling mounting only, and the 5G-ANTM-BRACKET L-shaped bracket is required for indoor or outdoor wall mounting.

Q: How does it differ from a 4-in-1 outdoor antenna?
A: This 9-in-1 model combines four LTE/5G elements, four dual-band Wi-Fi elements and one active GNSS element, so cellular, Wi-Fi and positioning are covered by a single antenna.

Q: What connectors and cable lengths does it use?
A: Each element has a 17 ft (5.2 m) cable. LTE/5G and GNSS use SMA plugs, and the four Wi-Fi cables use reverse-polarity SMA plugs.
