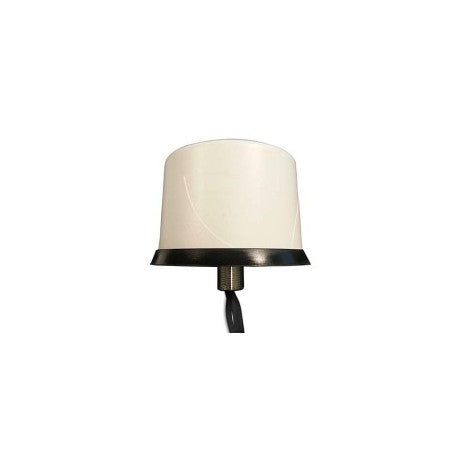

• Cisco 4G-LTE-ANTM-O-3-R LTE outdoor omni antenna with cream dome and black cable
1 1

Cisco

Cisco 4G-LTE-ANTM-O-3-R | Dual LTE and GPS 3-in-1 Outdoor Antenna, Red, 4 ft

4G-LTE-ANTM-O-3-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 4G-LTE-ANTM-O-3 is an integrated 3-in-1 indoor and outdoor antenna that combines two 4G LTE antennas and one GPS L1 antenna in a single low-profile radome. This SKU is the red radome version with a 4-foot cable, which makes it easy to identify and separate from the white, black and blue versions in the same range. It is designed for Cisco 4G LTE routers and interface cards that need both cellular and positioning coverage from one mounting point.

The LTE elements cover 698-960 MHz and 1710-2700 MHz with a typical gain of 2.5 dBi, vertical linear polarisation and an omni-directional azimuth pattern. The GPS element operates on 1575.42 MHz (GPS L1) with an integrated amplifier, drawing about 20 mA from a 3.3-5 V DC supply provided by the host router. The antenna is rated IP67, uses a 4 ft RG174 cable with SMA-Male connectors and has a UV-resistant radome for permanent outdoor installation.

It connects to Cisco 819 series 4G LTE ISRs and Cisco 4G LTE EHWICs, either directly or through optional extension cables. Mounting is by a 5/8 inch stud with a serrated face nut, with optional adhesive backing, on a grounded metal surface.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- No-tune multiband coverage with dual 4G LTE and GPS L1 frequencies
- Metal 5/8-inch stud mount with serrated face nut and a single cable exit for simpler installation or replacement
- Low-profile housing for added overhead clearance
- IP67-rated design protects against water and dust in severe environments
- Low-loss cable and high-quality connectors maintain RF efficiency
- UV-resistant radome for long-term outdoor exposure
- Active GPS element with integrated amplifier and filtering

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna elements: 2x LTE plus 1x GPS L1 in a single radome
- LTE operating frequencies: 698-960 MHz and 1710-2700 MHz
- GPS frequency band: 1575.42 MHz (GPS L1)
- Typical gain: 2.5 dBi
- Polarisation: vertical, linear
- Azimuth pattern: omni-directional
- Elevation plane (3 dB beamwidth): 30 degrees nominal
- Nominal impedance: 50 Ohms
- VSWR: less than 2.5:1
- Maximum power: 3 W
- Connector type: SMA-Male
- Cable: 4 ft RG174, VW-1 compliant
- Height: 90 mm
- Base diameter: 137 mm
- Radome colour: red, UV-resistant
- Flammability rating: UL-94 V0
- Ingress protection: IP67
- Operating and storage temperature: -40 to +85 C
- GPS amplifier gain: 26 dBc +/- 3 dB
- GPS noise figure: 1.8 dB typical
- GPS DC voltage: 3.3-5 V
- GPS DC current: 20 mA nominal, less than 30 mA from -40 C to +85 C
- Mounting: 5/8 inch stud with serrated face nut, optional adhesive backing

FAQs

Q: Which Cisco devices does this antenna connect to?
A: It connects to Cisco 819 series 4G LTE ISRs and Cisco 4G LTE EHWICs, either directly or through optional extension cables.

Q: Does the antenna need external power?
A: The LTE elements are passive. The active GPS element needs 3.3-5 V DC and draws about 20 mA nominal, which is supplied by the host router.

Q: What frequency bands does it cover?
A: The LTE elements cover 698-960 MHz and 1710-2700 MHz, and the GPS element covers 1575.42 MHz (GPS L1).

Q: How does this SKU differ from the other 4G-LTE-ANTM-O-3 antennas?
A: The antenna is available in white, black, red and blue radome colours. This SKU has the red radome and a 4-foot cable.

Q: Can I extend the cable run to the router?
A: Yes. The antenna guide lists optional extension cables 4G-CAB-LMR240-25, -50 and -75, and 4G-CAB-ULL-20 and -50.

Q: How is the antenna mounted?
A: It mounts on a grounded metal surface using a 5/8 inch stud with a serrated face nut, which needs a 5/8 inch hole through the surface. Optional adhesive backing is also available for flat, smooth surfaces.
