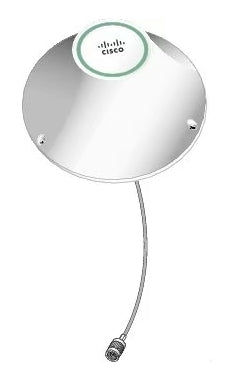

• Cisco 4G-ANTM-OM-CM 4G LTE indoor omni ceiling mount antenna with silver body, green LED, coiled cable, 4 dBi gain, TNC multiband
1 1

Cisco

Cisco 4G-ANTM-OM-CM | 4G LTE Indoor Ceiling Mount Omni Antenna, TNC Male

4G-ANTM-OM-CM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This multiband indoor omnidirectional antenna is built for Cisco 4G LTE cellular WAN deployments. Its low-profile ceiling-mount design spreads the signal evenly in all directions, which suits branch offices and similar indoor sites that connect Cisco ISR routers with 4G LTE interface modules, or IR1100 industrial routers.

The antenna covers the 698 to 960 MHz and 1710 to 2690 MHz cellular bands, plus GPS at 1575 MHz. Gain is 1 to 1.5 dBi at 700 to 960 MHz, 1.7 to 3.2 dBi at 1700 to 2200 MHz and 3 to 4 dBi at 2500 to 2700 MHz. It connects through a 50 ohm TNC male connector with linear vertical polarisation. The white ABS radome measures 143.3 mm in diameter by 50.8 mm high, is rated UL94 V0 for flammability and is for indoor use only.

It works with Cisco 4G LTE 2.0 NIMs and 3G/4G EHWICs that use a TNC male connector. Cisco low-loss cable extensions 3G-CAB-ULL-20 and 3G-CAB-ULL-50 can be used where the antenna needs to sit further from the router. As a passive antenna it needs no power and no licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-profile ceiling-mount design that maximises omnidirectional propagation
- Supports 3G/4G LTE bands from 700 to 2600 MHz, plus GPS at 1575 MHz
- Mounts to ceiling tiles under 1 in. thick or to hard ceilings using anchors
- Passive antenna with no power supply required
- Can be extended with Cisco low-loss cable extensions
- Suited to Cisco 4G LTE NIMs, EHWICs and IR1100 industrial routers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Low-profile ceiling-mount omnidirectional, multiband
- Frequency range: 698 to 960 MHz, 1575 MHz, 1710 to 2690 MHz
- Gain, 700 to 960 MHz: 1 and 1.5 dBi
- Gain, 1700 to 2200 MHz: 1.7 and 3.2 dBi
- Gain, 2500 to 2700 MHz: 3 and 4 dBi
- Connector: TNC male
- Nominal impedance: 50 ohms
- Polarisation: Linear vertical
- VSWR: 2.0:1 (3.01:1 or less for GPS)
- Azimuth plane ripple: 3.5 dB over all frequencies
- Efficiency: 70 to 85% over all supported frequencies
- Radome material: White ABS
- Dimensions (OD x H): 143.3 x 50.8 mm
- Flammability rating: UL94 V0
- Environment: Indoor use only
- Storage temperature: -40 to 85 C
- Compatible cable extensions: 3G-CAB-ULL-20 and 3G-CAB-ULL-50

FAQs

Q: Does this antenna need a licence or power supply?
A: No. It is a passive antenna, so it needs no licence and no power supply.

Q: Which Cisco products does it work with?
A: It works with Cisco 4G LTE 2.0 NIMs (NIM-4G-LTE-GA, -NA, -VZ and -ST) and 3G/4G EHWICs that use a TNC male connector. It is also listed for the Cisco Catalyst IR1100 Rugged Series.

Q: Can I mount the antenna further from the router?
A: Yes. Cisco low-loss cable extensions 3G-CAB-ULL-20 and 3G-CAB-ULL-50 are compatible and let you place the antenna away from the router.

Q: Can it be used outdoors?
A: No. This model is designed for indoor use only, with a ceiling-mount design.

Q: Which frequency bands does it cover?
A: It covers 698 to 960 MHz and 1710 to 2690 MHz for 3G/4G LTE, plus 1575 MHz for GPS.
