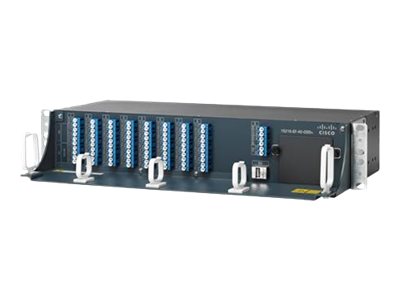

• Cisco 15216-MD-48-ODDE 48ch DWDM mux/demux rack panel with black switch and blue fiber ports
1 1

Cisco

Cisco 15216-MD-48-ODDE | ONS 15216 48-Channel Odd DWDM Mux/Demux, Extended

15216-MD-48-ODDE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ONS 15216 48-channel Odd DWDM Mux/Demux, Extended, is a passive patch panel from the Cisco ONS 15216 family. It is used in DWDM metro and long-haul optical transport, where multiple wavelengths are multiplexed onto a single fibre pair.

This panel handles the odd channels of the 100 GHz ITU grid, with channel 1 at 196.1 THz (1528.77 nm) and the odd set continuing through the grid from there. It is the extended variant of the 15216-MD-48-ODD and uses an exposed-faceplate patch panel design, so it is a passive optical device with no active electronics.

It pairs with the ONS 15216-MD-48-EVEN and EVENE even-channel patch panels, which are documented together with it in the same Cisco installation guide, allowing odd and even channel sets to be combined for a full channel plan.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive multiplexer and demultiplexer for DWDM transport
- Covers the odd channel plan on the 100 GHz ITU grid
- Extended variant of the 15216-MD-48-ODD
- Exposed-faceplate patch panel design
- Can be paired with the even-channel 15216-MD-48-EVEN and EVENE panels
- Suited to metro and long-haul optical transport

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Passive DWDM mux/demux patch panel
- Channels: 48, odd channel set
- Channel spacing: 100 GHz ITU grid
- Channel 1: 196.1 THz / 1528.77 nm
- Channel 2 (odd set): 196.0 THz / 1529.55 nm
- Channel 3 (odd set): 195.9 THz / 1530.33 nm
- Channel 4 (odd set): 195.8 THz / 1531.12 nm
- Channel 5 (odd set): 195.7 THz / 1531.90 nm
- Channel 6 (odd set): 195.6 THz / 1532.68 nm
- Channel 7 (odd set): 195.5 THz / 1533.47 nm
- Variant: Extended version of 15216-MD-48-ODD
- Design: Exposed-faceplate patch panel

FAQs

Q: What is the difference between this panel and the 15216-MD-48-ODD?
A: This is the extended variant of the 15216-MD-48-ODD. It covers the same odd channel plan on the 100 GHz ITU grid.

Q: Does it need a power supply?
A: No. It is a passive optical patch panel and has no active electronics.

Q: Which panel pairs with it for the even channels?
A: The ONS 15216-MD-48-EVEN and EVENE even-channel patch panels pair with it, as they are documented together in the same Cisco installation guide.

Q: Which channels does it handle?
A: It handles the odd channels of the 100 GHz ITU grid, starting at channel 1 on 196.1 THz (1528.77 nm).
