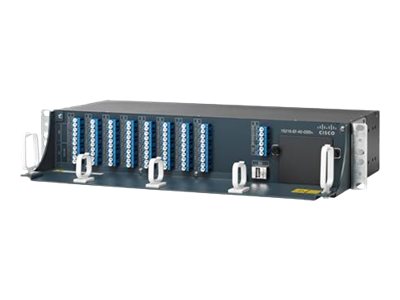

Cisco 15216-EF-40-ODD | 40-Ch DWDM Mux/Demux, C-Band, 100 GHz, Odd ITU Channels, LC, Passive

Cisco 15216-EF-40-ODD | 40-Ch DWDM Mux/Demux, C-Band, 100 GHz, Odd ITU Channels, LC, Passive

SKU:15216-EF-40-ODD

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

Passive 40-channel DWDM mux/demux patch panel with odd ITU-T channels on a 100 GHz C-band grid. Exposed faceplate design with LC ports for simple, high-density fiber breakout and aggregation. Pair with an even-channel panel for 80-channel deployments.

Features

- High-density 40-channel DWDM aggregation in a simple patch-panel format
- Passive design for zero power consumption and high reliability
- LC front access for quick turn-ups and easy troubleshooting
- Standards-based ITU C-band 100 GHz channel plan
- Scalable: pair with even-channel panel to double capacity

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does 'odd channels' mean?
A: It carries the odd-numbered ITU DWDM channels on a 100 GHz grid; use with a matching even-channel panel for full 80-channel coverage.

Q: Does this unit require power?
A: No. It is a passive optical filter panel and requires no power.

Q: What connectors are used?
A: LC/UPC ports are provided for channel and common/express connections.

Q: Can it be mounted in a standard rack?
A: Yes, it is designed for 19-inch rack mounting.

Q: Can I mix this with other DWDM components?
A: Yes. It integrates with standard C-band DWDM systems following ITU-T G.694.1 channel plans.

Technical Specifications

- Function: 40-channel DWDM mux/demux (passive)
- Channel plan: Odd ITU-T G.694.1 C-band, 100 GHz spacing
- Wavelength range: C-band (approx. 1528–1565 nm)
- Ports: LC/UPC per channel with common/express LC interfaces
- Form factor: Exposed faceplate patch panel, 19-inch rack compatible
- Characteristics: High channel isolation, low insertion loss
- Use case: Scales fiber capacity; pair with an even-channel panel for 80-ch systems
- Power: None required (fully passive optical)
