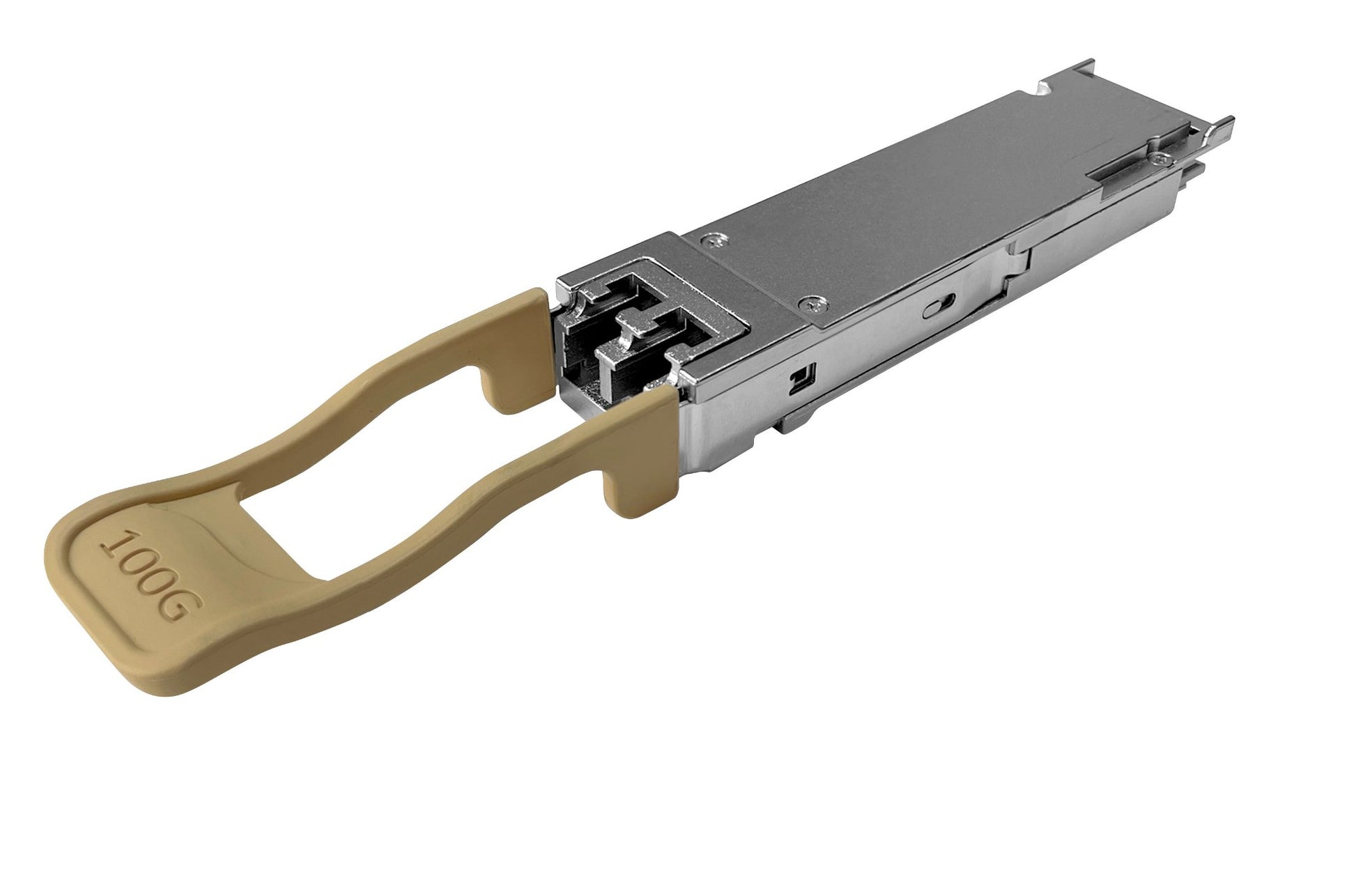

Aruba S4B44A | 100G QSFP28 transceiver, SR1.2, 850 nm, up to 100 m OM4 (70 m OM3), LC duplex, 100GBASE‑SR1.2

Aruba S4B44A | 100G QSFP28 transceiver, SR1.2, 850 nm, up to 100 m OM4 (70 m OM3), LC duplex, 100GBASE‑SR1.2

SKU:S4B44A

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

Short‑reach 100G QSFP28 optical module for MMF networks using LC duplex connectivity. SR1.2 provides efficient 100G over two fibers with up to 100 m on OM4 or 70 m on OM3, ideal for top‑of‑rack to aggregation links. Digital diagnostics and FEC compatibility enable reliable high‑speed operation.

Features

- LC duplex 100G over existing MMF plant
- Compact QSFP28 form factor
- Up to 100 m reach on OM4
- Host‑based KP4 FEC compatibility for robust links
- DOM/DDM monitoring for simplified operations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Will this module work over single‑mode fiber?
A: No. It is designed for multimode fiber (OM3/OM4).

Q: What connector type is required?
A: LC duplex connectors are required.

Q: Is it interoperable with 100G SR4 MPO modules?
A: No. It should be matched with another 100G SR1.2‑type module on the far end.

Q: Do I need FEC to achieve full reach?
A: Yes, KP4 FEC on the host is recommended to achieve the published reach.

Q: Does it support digital diagnostics?
A: Yes, DOM/DDM is supported for monitoring optical parameters.

Technical Specifications

- Data rate: 100 Gb/s
- Form factor: QSFP28
- Optical standard: 100GBASE‑SR1.2 (MSA), IEEE 802.3cd compliant host interface
- Fiber type: MMF
- Wavelength: 850 nm nominal
- Connector: LC duplex
- Reach: up to 100 m on OM4, up to 70 m on OM3 (with host FEC)
- FEC: KP4 FEC on the host recommended for maximum reach
- Digital diagnostics (DDM/DOM): Supported
- Operating temperature: 0°C to 70°C (typical commercial range)
