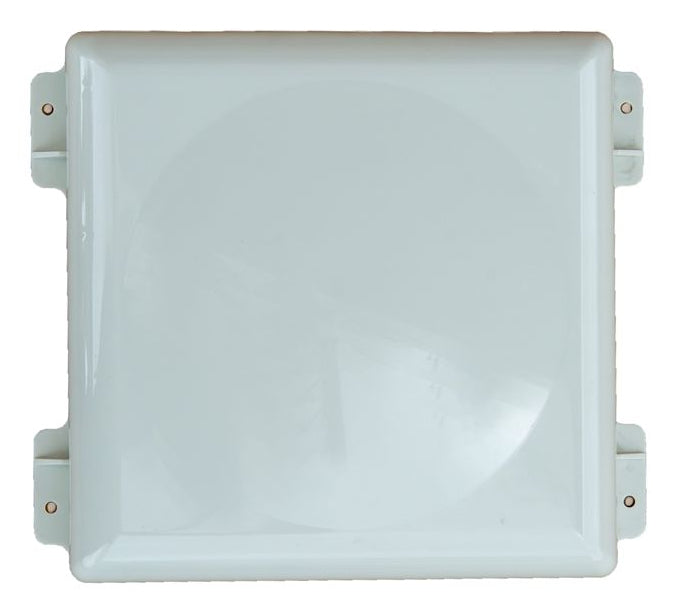

• Aruba S0A66A directional MIMO antenna with white square light fixture mount
1 1

Aruba

Aruba S0A66A | AP-ANT-28a Dual-Band 7dBi 2-Element MIMO Antenna

S0A66A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AP-ANT-28a is a directional dual-band MIMO antenna from the Aruba AP-ANT range of detachable antennas. It focuses Wi-Fi coverage into a defined sector, which suits corridors, warehouse aisles and other targeted coverage zones where an omnidirectional antenna would waste signal.

It covers both the 2.4 GHz and 5 GHz bands with a 2-element MIMO design and dual polarisation at +/-45 degrees. Gain is rated at 7 dBi, with a sector pattern of approximately 70 x 50 degrees. Two RP-SMA pigtail connectors allow direct connection to the external antenna ports on the access point, and the antenna is wall mounted for indoor or outdoor placement.

The antenna is passive and needs no power. It is intended for Aruba access points with external RP-SMA antenna connectors, such as the AP-504.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Directional sector pattern focuses coverage into targeted areas
- Dual-band operation across 2.4 GHz and 5 GHz
- 2-element MIMO with dual polarisation at +/-45 degrees
- RP-SMA pigtail connectors for access points with external antenna ports
- Suited to corridors, warehouse aisles and focused coverage zones
- Wall mountable for indoor or outdoor installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Directional MIMO Wi-Fi antenna
- Model: AP-ANT-28a
- Frequency: Dual-band 2.4 GHz and 5 GHz
- Gain: 7 dBi
- Elements: 2-element MIMO
- Connectors: 2 x RP-SMA (pigtail)
- Polarisation: Dual-polarised, +/-45 degrees
- Beamwidth: Approximately 70 x 50 degrees sector
- Mounting: Wall mount
- Environment: Indoor/outdoor
- Power: Passive, no power required

FAQs

Q: Which access points does this antenna work with?
A: It is designed for Aruba access points with external RP-SMA antenna connectors, such as the AP-504.

Q: Does the antenna need power?
A: No. It is a passive antenna and draws no power.

Q: What coverage pattern does it provide?
A: It is a directional sector antenna with an approximate 70 x 50 degree pattern, which concentrates signal into a defined area rather than covering all directions.

Q: Can it be used outdoors?
A: Yes. It is specified for indoor and outdoor use and is wall mounted.
