Aruba R9M45A | 9114 Hybrid Gateway, 4x 10G SFP+, AC Powered, Non-TAA
SKU:R9M45A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

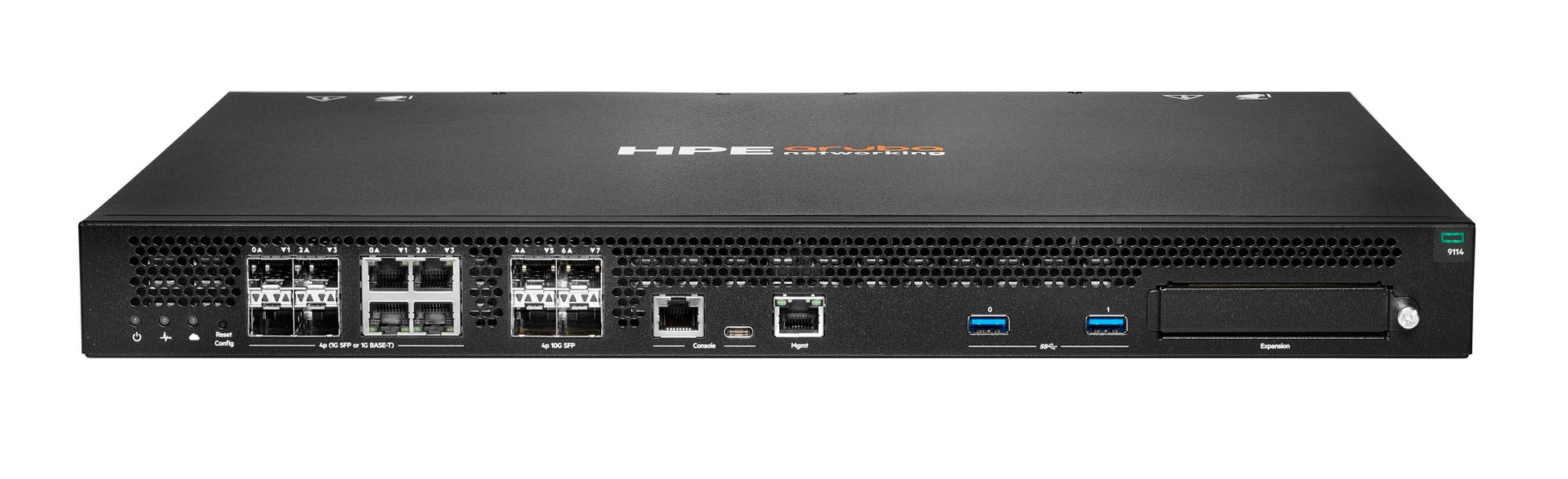

The Aruba 9114 is a 1RU cloud-managed hybrid gateway from the 9100 Series, built for VPN concentrator roles, SD-Branch deployments and small campus or large branch wireless gateway use. It runs AOS-10 and is managed through HPE Aruba Networking Central.
The 9114 provides 4 x 10GbE SFP+ ports and 4 x 1G combo SFP/RJ45 ports, with one expansion slot for further connectivity. Firewall throughput is 20 Gbps, with encrypted throughput also rated at 20 Gbps for GRE, AES-CBC and AES-GCM. Under AOS-10 it scales to 10K clients and 4,000 APs, with a cluster size of 6. This SKU is the AC powered, non-TAA variant, taking 100-240 VAC input at a maximum of 185 W. It is distinct from the DC powered R9M46A and the TAA variants R9M47A and R9M48A.
The gateway uses SFP+ and SFP or 1G copper combo transceivers, and a Central subscription is required for management. It runs AOS-10 only and does not support AOS-8.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs the AOS-10 distributed software architecture, managed via HPE Aruba Networking Central
- Zero-touch provisioning and AI-powered insights
- SD-Branch gateway, VPN concentrator and wireless gateway roles
- Stateful firewall and IPSec VPN with role-based policy enforcement
- Dynamic segmentation and unified policy enforcement across LAN, WAN and SD-WAN
- Clustering, redundancy and live upgrades for always-on connectivity
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1 RU rack-mountable (2-post)
- SFP+ ports: 4 x 10GbE
- Combo ports: 4 x 1G (SFP / 1G copper RJ45)
- Expansion: 1 x expansion slot
- Management ports: 1 x RJ45 (Mgmt), USB-C, RJ45 (Console)
- PoE budget: none
- Firewall throughput: 20 Gbps
- Encrypted throughput GRE: 20 Gbps
- Encrypted throughput AES-CBC-128: 20 Gbps
- Encrypted throughput AES-CBC-256: 20 Gbps
- Encrypted throughput AES-GCM-128: 20 Gbps
- Encrypted throughput AES-GCM-256: 20 Gbps
- AOS-10 cluster size: 6
- AOS-10 maximum clients: 10K
- AOS-10 access control lists: 2678
- AOS-10 configurable bandwidth contracts: 1K
- Power input: 100-240 VAC
- Maximum power consumption: 185 W
- Heat dissipation: 631 BTU/hour
- Dimensions (H x W x D): 1.7 x 17.4 x 13.8 in
- Weight: approx. 13.67 lb
- Certifications: CSA/UL 62368-1
FAQs
Q: Does the 9114 need a licence or subscription?
A: It runs AOS-10 and is managed through HPE Aruba Networking Central, which requires a Central subscription. The EdgeConnect SD-Branch solution is included as part of AOS-10 and Central.
Q: How is the R9M45A powered?
A: It takes AC input at 100-240 VAC with a maximum consumption of 185 W. It does not provide PoE. The DC powered equivalent is the R9M46A.
Q: How does R9M45A differ from R9M47A?
A: R9M45A is the AC powered, non-TAA variant. R9M47A is the TAA variant, and R9M46A and R9M48A are the DC powered equivalents.
Q: Which transceivers does the 9114 use?
A: The four SFP+ ports take 10GbE SFP+ transceivers, and the four combo ports accept SFP or 1G copper connections.
Q: Can the 9114 run AOS-8?
A: No. The 9114 runs AOS-10 only and is managed through HPE Aruba Networking Central.
