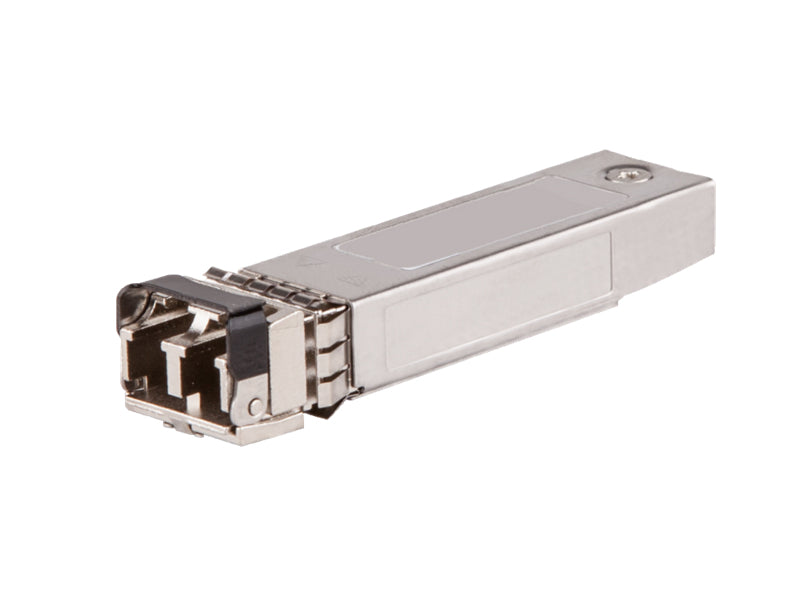

Aruba R9F82A | 10G SFP+ Transceiver, 10GBASE-SR, 850nm, 300m OM3, LC
SKU:R9F82A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 10GBASE-SR SFP+ transceiver is a hot-swappable optical module for short-reach 10GbE links over multimode fibre. It suits campus, building and data-centre environments, where it is typically used for switch uplinks, aggregation and top-of-rack connections.
The module runs at 850 nm over multimode fibre through a duplex LC connector and delivers a 10 Gbps data rate to IEEE 802.3ae. It reaches up to 300 m on OM3 fibre and up to 400 m on OM4, with 82 m supported on OM2. Digital Optical Monitoring (DOM) provides real-time link diagnostics, and power draw is approximately 1 W maximum from the host SFP+ port, so no separate power supply is needed.
It works with HPE Aruba Networking switches that have SFP+ ports, including the 2930F, 2930M, 6200, 6300 and 6400 series as well as CX series models. It needs OM3 or OM4 multimode fibre terminated with LC duplex connectors. Check the host switch's supported-transceiver matrix for your exact model.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Standards-based 10GBASE-SR for broad interoperability
- Hot-swappable SFP+ footprint simplifies upgrades and sparing
- Digital Optical Monitoring (DOM) for real-time link diagnostics
- Short-reach, low-latency 10GbE uplinks over multimode fibre
- Compact form factor for high port density
- Draws power from the host SFP+ port with no separate supply required
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Standard: IEEE 802.3ae 10GBASE-SR
- Form factor: SFP+ (SFP MSA compliant)
- Data rate: 10 Gbps
- Connector: LC duplex
- Fibre type: Multimode fibre (OM3 / OM4)
- Central wavelength: 850 nm
- Maximum distance on OM3: 300 m (50/125 um, 2000 MHz.km)
- Maximum distance on OM4: 400 m
- Maximum distance on OM2: 82 m (50/125 um, 500 MHz.km)
- Digital Optical Monitoring (DOM): Yes
- Receive power: -9.9 to +0.5 dBm
- Power consumption: approx. 1 W maximum
- Dimensions (H x W x D): 1.5 x 5.6 x 1.3 cm (0.6 x 2.2 x 0.5 in)
- Weight: 0.05 kg (0.1 lb)
- Hot-swappable: Yes
FAQs
Q: What fibre does this transceiver need?
A: It needs OM3 or OM4 multimode fibre terminated with duplex LC connectors. It reaches up to 300 m on OM3 and up to 400 m on OM4.
Q: Which switches is it compatible with?
A: It works with HPE Aruba Networking switches that have SFP+ ports, including the 2930F, 2930M, 6200, 6300, 6400 and CX series. Check the host switch's supported-transceiver matrix for your exact model.
Q: Does it need external power?
A: No. It draws about 1 W maximum from the host switch SFP+ port, so no separate power supply is required.
Q: Does it support Digital Optical Monitoring?
A: Yes. DOM provides real-time link diagnostics so you can monitor the optical link from the host device.
Q: Can it be used over OM2 fibre?
A: Yes, but the reach is limited to 82 m on OM2 (50/125 um, 500 MHz.km). For the full 300 m, use OM3 fibre.
