Aruba R6Q99A | Micro-USB to RJ45 RS-232 AP Console Adapter Module

SKU:R6Q99A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

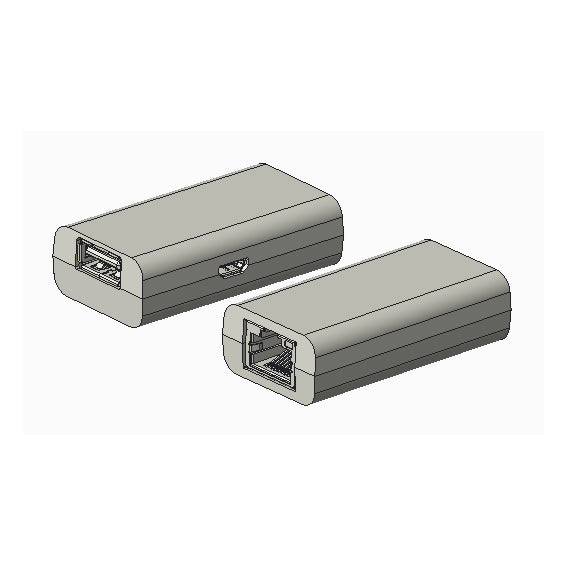

This console adapter module converts the proprietary TTL 3.3V serial interface on a Micro-B USB port of supported Aruba access points into a standard RS-232 console port on a female RJ-45 connector. It lets engineers reach the access point CLI using standard serial terminal equipment, which suits field troubleshooting and configuration work on Aruba access point accessories.

The module connects to the access point through a Type-A USB port that links to the proprietary Micro-B console port, and takes power through a separate Micro-B USB port from any standard 5V USB source (5V +/- 10%). Power draw is low at 500 mW or 100 mA maximum. The AP console pin-out is NC, RXD, TXD and Ground.

It is compatible with the indoor Aruba 203H, 203R, 303H, 303 and 340 Series, and all AP-5xx indoor Campus, Hospitality and Remote access points. Aruba installation guides also list it as an optional console accessory for the 630 and 650 Series. It is not intended for other Aruba access points or products.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Provides a traditional RS-232 serial console interface in place of the proprietary TTL serial interface on a Micro-B USB connector
- Enables console access to the access point over longer distances using standard terminal equipment
- Powered from any standard 5V USB power source
- Low power draw of 500 mW maximum
- Suited to field troubleshooting, CLI access and configuration of Aruba access points

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Part number: AP-MOD-SERU (R6Q99A)
- Description: Micro-B USB TTL3.3V to RJ-45 RS-232 AP console adapter module
- Regulatory model number: AP-MOD-SERU
- RS-232 interface: female RJ-45 connector for serial console access
- AP interface: Type-A USB port connecting to the proprietary AP Micro-B console port
- AP console pin-out: 1 NC, 2 RXD, 3 TXD, 4 Ground
- Power interface: Micro-B USB port, 5V +/- 10%
- Power pin-out: 1 +5Vdc, 2-3 NC, 4-5 Ground
- Power consumption: 500 mW / 100 mA max

FAQs

Q: Which Aruba access points does this adapter work with?
A: It works with the indoor Aruba 203H, 203R, 303H, 303 and 340 Series and all AP-5xx indoor Campus, Hospitality and Remote access points. Aruba installation guides also list it as an optional console accessory for the 630 and 650 Series.

Q: How is the adapter powered?
A: It is powered through its Micro-B USB PWR port from any standard 5V USB power source (5V +/- 10%). Maximum consumption is 500 mW or 100 mA.

Q: What kind of console connection does it provide?
A: It provides a standard RS-232 serial console on a female RJ-45 connector, so you can use ordinary serial terminal equipment instead of the proprietary Micro-B TTL interface on the access point.

Q: Can I use it with any Aruba access point?
A: No. It is designed only for the supported indoor access point models listed for the AP-MOD-SERU and is not intended for other Aruba access points or products.
