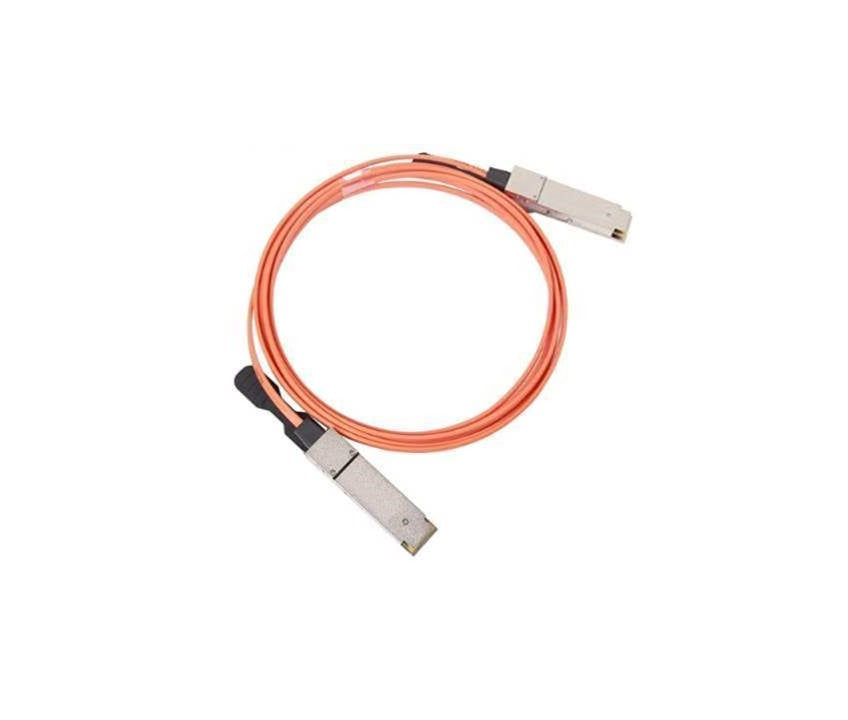

Aruba R6F24A | 200G QSFP56 to 2x 100G QSFP56 AOC, MMF, 3m
SKU:R6F24A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This active optical breakout cable splits one 200GbE QSFP56 port into two 100GbE QSFP56 ports, making it a practical choice for high-density data centre links between switches and 100G devices. It is part of the Aruba CX transceiver options range.
The cable runs 4x50G PAM4 signalling over 850nm multimode fibre (OM3/OM4) at a length of 3m. The optics are permanently attached, so there is no separable connector. It draws power from the host port, with typical consumption of 4.5W and a maximum of 5W. The operating temperature range is 0 to 70 C, and the cable weighs around 100g.
It is supported on Aruba CX 9300 32D models running AOS-CX 10.15 or later. The cable works only in QSFP56 or QSFP-DD ports, and the 200G port must be set to 'system lanes 4' before it can be split.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 200G port into two 100G links for high-density data centre breakouts
- Multimode fibre construction with integrated optics and no separable connector
- 4x50G PAM4 signalling for high-bandwidth, low-latency switch-to-server connections
- Low power draw from the host port, typically 4.5W
- Operates in QSFP56 and QSFP-DD ports
- Supported on Aruba CX 9300 32D switches
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 1 x QSFP56 200GbE to 2 x QSFP56 100GbE
- Type: AOC-S2 active optical splitter cable
- Signalling: 4x50 Gb/s PAM4
- Cable length: 3 m
- Wavelength: 850 nm
- Fibre type: Multimode (OM3, OM4)
- Connector type: No separable connector
- Transceiver form factor: QSFP56
- Typical power consumption: 4.5 W
- Maximum power consumption: 5 W
- Operating temperature: 0 to 70 C (32 to 158 F)
- Operating relative humidity: 5% to 85%, non-condensing
- Storage temperature: -40 to 85 C (-4 to 185 F)
- Altitude: up to 3 km (10,000 ft)
- Dimensions: 18.35 x 72.7 x 8.5 mm
- Weight: 100 g
FAQs
Q: Which switches support this breakout cable?
A: It is supported on Aruba CX 9300 32D models running AOS-CX 10.15 or later.
Q: Do I need to configure the port before splitting it?
A: Yes. The 200G port needs 'system lanes 4' set before it can be split into two 100G links.
Q: What type of port does it plug into?
A: It works only in QSFP56 or QSFP-DD ports.
Q: What fibre type and reach does it use?
A: It uses 850nm multimode fibre (OM3/OM4) in a fixed 3m length with optics permanently attached.
Q: How much power does it draw?
A: Typical consumption is 4.5W and the maximum is 5W, supplied by the host port.
