Aruba R1N34A | 100G QSFP28 Passive DAC Cable, 0.5m, 100GBASE-CR4
SKU:R1N34A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

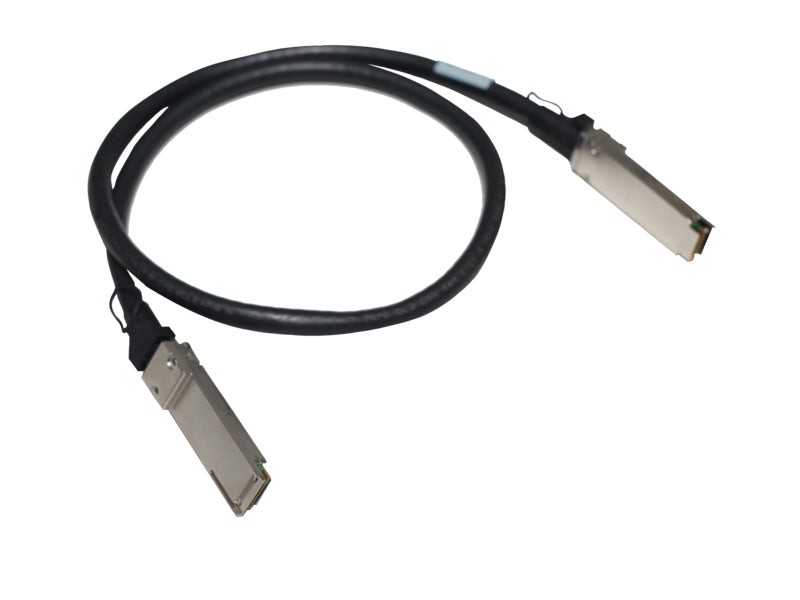

This Aruba 100G QSFP28 passive direct attach copper cable links two 100GbE ports over a 0.5m run. The QSFP28 connectors are permanently attached to a twinax copper cable, making it a compact, low-latency and low-power choice for connections within a rack or between adjacent racks.
It carries 100 Gbps Ethernet to the 100GBASE-CR4 standard using four 25G lanes, and is a straight QSFP28-to-QSFP28 cable rather than a breakout cable. As a passive design it needs no external power and adds minimal latency, and it is a cost-effective alternative to optics where the distance is short. The 0.5m length suits top-of-rack, spine and leaf, and server or storage to switch connections where only a short run is needed.
It works with devices that have QSFP28 100G ports that support passive DACs. HPE Aruba storage networking connectivity guidance lists R1N34A as a 100G QSFP28 0.5m DAC option, so confirm passive DAC support on the host switch or NIC port before deployment.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive design with no additional power consumption and minimal latency
- Tool-less, plug-and-play connectivity between adjacent racks
- Twinax construction for reliable signal integrity
- Cost-effective alternative to optics for short distances
- Straight QSFP28-to-QSFP28 cable for direct 100G port-to-port links
- Listed as a supported 100G DAC option in HPE Aruba storage networking connectivity guidance
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: 100 Gbps Ethernet
- Standard: 100GBASE-CR4
- Form factor: QSFP28 direct-attach copper (passive)
- Cable length: 0.5 m
- Medium: Copper twinax
- Connectors: QSFP28 male to QSFP28 male
- Cable type: Straight (non-breakout) QSFP28-to-QSFP28
- Lanes: 4 x 25G
FAQs
Q: Does this cable need external power?
A: No. It is a passive cable with permanently attached QSFP28 connectors, so it needs no external power and adds minimal latency.
Q: What ports does it connect?
A: It connects QSFP28 100G ports on both ends, such as switch-to-switch or server or storage NIC-to-switch links, using a straight QSFP28-to-QSFP28 cable.
Q: What distance can it cover?
A: The cable is 0.5m long, so it suits links within the same rack or between adjacent racks. For longer runs a longer DAC or an optical solution is needed.
Q: Is this a breakout cable?
A: No. It is a straight QSFP28-to-QSFP28 cable carrying 100GBASE-CR4 across four 25G lanes, not a breakout cable that splits into separate links.
Q: Do I need to check port compatibility before ordering?
A: Yes. The host port must be a QSFP28 100G port that supports passive DACs, so check the relevant switch or NIC compatibility list before deployment.
