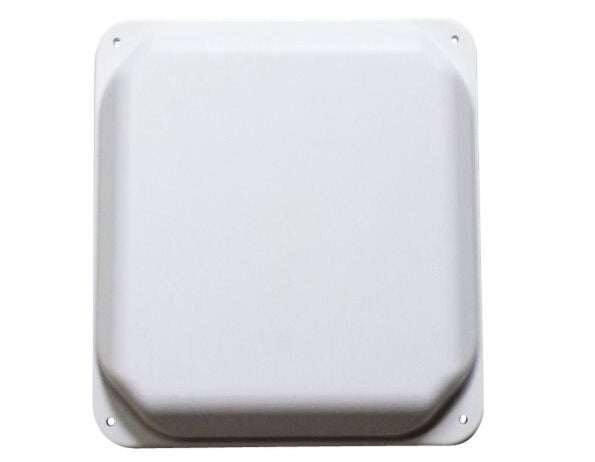

• Aruba Q8N51A directional panel antenna with white square vent cover
1 1

Aruba

Aruba Q8N51A | Outdoor MIMO 8dBi Dual-Band Antenna, 60x60deg, N-Type

Q8N51A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba ANT-4x4-D608 is a multi-polarised 4x4 MIMO directional panel antenna from the Aruba Outdoor MIMO Antennas range. It suits outdoor sector coverage for client access with Aruba outdoor access points, such as campus, stadium and warehouse deployments.

It operates across the 2.4 GHz and 5 GHz bands with 8 dBi of gain and a 60 degree horizontal by 60 degree vertical beamwidth, which concentrates signal into a defined sector. Polarisation is +/-45 degrees and vertical, and connections use N-Type connectors. As a passive antenna it needs no power supply. The 60x60deg, 8dBi, dual-band N-Type specification distinguishes it from other antennas in the range.

It is designed for Aruba outdoor access points with 4x N-Type connector models, including the AP-374, AP-584, AP-585 and AP-587 series. The white plastic and aluminium housing is wall and pole mountable for outdoor installation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-polarised antenna suited to 2.4 and 5 GHz sector coverage for client access
- 60 x 60 degree beamwidth for directional sector coverage
- Dual-band operation with 4x4 MIMO
- N-Type connectors for Aruba outdoor access points
- Passive design with no power requirement
- Wall and pole mounting for outdoor installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: ANT-4x4-D608
- Product type: Directional panel antenna
- Frequency range: 2.4 - 2.5 GHz, 4.9 - 6.0 GHz
- Antenna gain: 8 dBi
- MIMO configuration: 4x4
- Beamwidth (H x V): 60 x 60 degrees
- Polarisation: +/-45 degrees and vertical
- Connectors: N-Type
- Power: Passive, no power supply required
- Dimensions (W x D x H): approx. 198 x 198 x 36 mm
- Weight: approx. 521 g
- Material: Plastic, aluminium
- Mounting: Outdoor, wall or pole mount
- Colour: White
- Compliance: RoHS

FAQs

Q: Which Aruba access points does this antenna work with?
A: It is designed for Aruba outdoor access points with 4x N-Type connector models, including the AP-374, AP-584, AP-585 and AP-587 series. Check the Aruba accessory guide for the full compatibility list.

Q: Does this antenna need power or a licence?
A: No. It is a passive antenna, so it needs no power supply and has no licensing requirement.

Q: What coverage pattern does it provide?
A: It is a directional panel antenna with a 60 degree horizontal by 60 degree vertical beamwidth, suited to sector coverage rather than all-round coverage.

Q: Which frequency bands does it support?
A: It covers the 2.4 GHz band (2.4 to 2.5 GHz) and the 5 GHz band (4.9 to 6.0 GHz) with 4x4 MIMO operation.

Q: How is this antenna mounted?
A: It can be mounted on a wall or a pole for outdoor installation.
