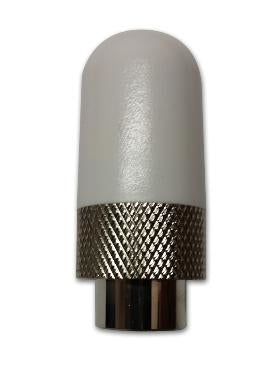

• Aruba Q8N49A white silver textured antenna cap 2-pack
1 1

Aruba

Aruba Q8N49A | AP-ANT-22 Dual-Band 2/4 dBi Omni Antenna, RP-SMA, 2-Pack

Q8N49A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-ANT-22 is a pack of two low-profile, dual-band omnidirectional indoor antennas for Aruba access points that use external RP-SMA antenna connectors. It suits indoor Wi-Fi deployments that need even 2.4 GHz and 5 GHz coverage around the access point.

Each antenna provides a minimum of 2 dBi gain in the 2.4 GHz band and 4 dBi in the 5 GHz band. The two antennas are supplied as a pair for 2x2 MIMO operation and use vertical polarisation with a 360 degree horizontal beamwidth and a 45 degree vertical beamwidth. Each element measures 44.2 mm long by 19.6 mm in diameter and weighs 30 g, with a 50 ohm impedance and a maximum input power of 20 W. The antennas operate from -40 to +65 C.

They attach directly to the access point through RP-SMA connectors, so no installation hardware is needed. They are compatible with Aruba 318 Series access points and other Aruba access points with RP-SMA external antenna connectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Omnidirectional coverage in both the 2.4 GHz and 5 GHz bands
- Low-profile design that attaches directly to the access point
- Supplied as a pair for 2x2 MIMO operation
- Passive antenna that needs no power
- No installation hardware required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: AP-ANT-22
- Type: Dual-band omnidirectional indoor antenna
- Frequency and minimum gain: 2.4-2.5 GHz at 2 dBi, 4.9-6.0 GHz at 4 dBi
- Connector type: RP-SMA
- Packaged quantity: 2 (2x2 MIMO)
- Polarisation: Vertical
- Beamwidth: 360 degrees horizontal, 45 degrees vertical
- Impedance: 50 ohms
- VSWR: 2:1 max
- Maximum input power: 20 W
- Dimensions: 44.2 x 19.6 (dia.) mm
- Weight: 30 g per element
- Operating temperature: -40 to +65 C
- Mounting: Direct attach to access point, no installation hardware required

FAQs

Q: Which access points is the AP-ANT-22 compatible with?
A: It is compatible with Aruba 318 Series access points and other Aruba access points that have RP-SMA external antenna connectors. Check the Aruba antenna datasheet for the full compatibility matrix.

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power. Maximum input power is 20 W.

Q: What gain does it provide in each band?
A: It provides a minimum of 2 dBi in the 2.4 GHz band and 4 dBi in the 5 GHz band.

Q: How is it mounted?
A: It attaches directly to the access point through its RP-SMA connector, so no installation hardware is required.

Q: Is it suitable for outdoor use?
A: It is designed as a low-profile indoor antenna for indoor Wi-Fi deployments.
