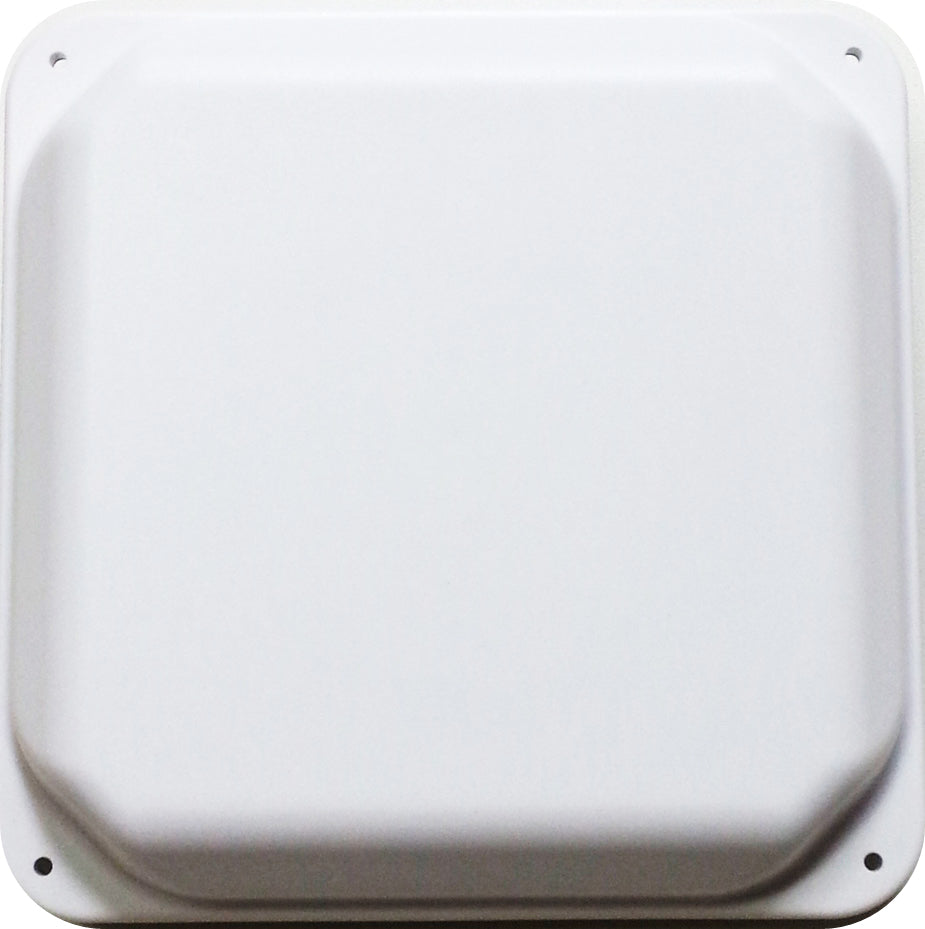

• Aruba JW034A white square vent cover with rounded edges and 4 screws
1 1

Aruba

Aruba JW034A | ANT-3x3 Outdoor Sector Antenna, Dual-Band, 5 dBi, 3x N-Type

JW034A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba ANT-3x3-D100 is a dual-band outdoor sector antenna from the Aruba Outdoor Antennas range. It is built for sector coverage in venues and open areas, such as covering a street, providing spot coverage, or serving a seating section in a stadium or other large public venue.

It covers both the 2.4 GHz and 5 GHz bands with a minimum gain of 5 dBi on each, across 2.4-2.5 GHz and 4.9-6.0 GHz. Three N-type female connectors support 3x3 MIMO, and the multipolarized design uses vertical and slant +/-45 degree polarization. The sector pattern provides 90 degrees of vertical beamwidth with a nominal 90 by 90 degree coverage area, which keeps the signal directed where clients are located.

The antenna is a passive device with an aluminium housing and plastic radome, rated for operation from -45 to +70 degrees Celsius. It mounts to a pole or wall. It is intended for Aruba outdoor access points with detachable N-type antenna connectors, such as the Aruba 370 Series 374.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multipolarized antenna with 90 degree sector coverage
- Dual-band 2.4 GHz and 5 GHz operation for client access
- Three N-type connectors for 3x3 MIMO outdoor access points
- Aluminium housing with plastic radome for outdoor use
- Pole or wall mounting
- Passive design with no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Outdoor 3x3 MIMO multipolarized sector antenna
- Frequency bands: 2.4-2.5 GHz and 4.9-6.0 GHz
- Gain: 5 dBi minimum on both bands
- Polarization: Vertical and slant +/-45 degrees
- Beamwidth: 100 degrees horizontal, 90 degrees vertical
- Connectors: 3 x N-type female
- Impedance: 50 ohms
- VSWR: 2:1 maximum
- Maximum input power: 20 W
- Housing: Aluminium
- Radome: Plastic
- Dimensions: 200 x 200 x 33 mm
- Weight: 0.8 kg
- Operating and storage temperature: -45 to +70 C
- Mounting: Pole or wall
- Application: Outdoor

FAQs

Q: Which access points does this antenna work with?
A: It is for Aruba outdoor access points that have detachable N-type antenna connectors, such as the Aruba 370 Series 374.

Q: Does it need power or a licence?
A: No. It is a passive antenna with a maximum input power of 20 W, and no licence or subscription applies.

Q: What coverage pattern does it provide?
A: It is a directional sector antenna with a nominal 90 by 90 degree beamwidth, suited to street coverage, spot coverage and stadium seating areas.

Q: How does it connect to the access point?
A: It has three N-type female connectors for 3x3 MIMO. These connect to the access point through N-type RF cabling.

Q: How can it be mounted?
A: It supports pole or wall mounting for outdoor installations.
