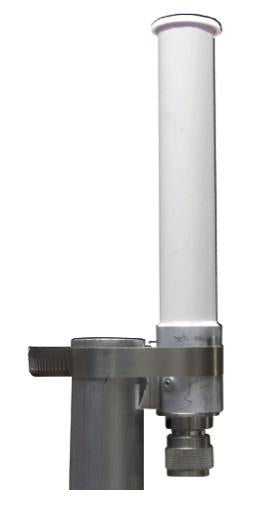

• Aruba JW031A Omni antenna, 5 dBi white cylindrical with N-type connector
1 1

Aruba

Aruba JW031A | Outdoor 5 GHz 5 dBi Omni Antenna Kit, 3-Pack, N-type

JW031A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Aruba Outdoor Antennas kit contains three omnidirectional 5 GHz antennas with N-type connectors, built for 802.11ac and 802.11n MIMO deployments. It suits outdoor mesh links and client access (sector or area coverage) with Aruba outdoor access points in harsh environments.

The kit covers the 4.9 to 5.875 GHz band with 5 dBi gain per antenna. Two antennas are vertically polarised and one is horizontally polarised, giving the polarisation diversity that 3x3 MIMO needs. Each antenna has a 360 degree H-plane pattern, a 50 ohm impedance and a maximum input power of 10 W. The antennas mount directly on the access point or on a pole, and use detachable N-type male connectors. A UV-resistant white polycarbonate radome protects each antenna outdoors.

This is the 5 GHz kit (ANT-3x3-5005). The 2.4 GHz equivalent is a separate kit, so confirm the band you need before ordering. It is designed for Aruba outdoor access points with N-type external antenna connectors, such as the Aruba 270 Series (AP-274 and AP-275). RF cables are sold separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Three omnidirectional antennas for 802.11ac and 802.11n MIMO applications
- Covers the 4.9-5.875 GHz band for mesh links and client access
- Two vertical and one horizontal antenna for polarisation diversity
- Detachable N-type connectors for Aruba outdoor access points
- Direct AP mount or pole mount options
- UV-resistant polycarbonate radome for outdoor use

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Kit contents: 3 omnidirectional antennas
- Frequency: 4.9-5.875 GHz
- Gain: 5 dBi
- Polarisation: 2x vertical linear, 1x horizontal linear
- Beamwidth: E-plane 29 deg (vertical), 33 deg (horizontal); H-plane 360 deg
- Impedance: 50 ohms
- Maximum input power: 10 W
- VSWR: 2.0:1
- Connector: N-type male
- Mounting: Direct mount on AP or pole mount
- Dimensions: 200 x 25 x 25 mm
- Weight: 140 g each
- Radome: Polycarbonate, UV-resistant, white

FAQs

Q: Which frequency band does this antenna kit cover?
A: It covers 4.9 to 5.875 GHz. For 2.4 GHz use the companion kit, ANT-3x3-2005 (JW030A).

Q: Which access points is it designed for?
A: It is designed for Aruba outdoor access points with N-type external antenna connectors, such as the Aruba 270 Series (AP-274 and AP-275), which list this kit as an accessory.

Q: Why does the kit have both vertical and horizontal antennas?
A: Two antennas are vertically polarised and one is horizontally polarised, giving the polarisation diversity used for 3x3 MIMO operation.

Q: Does it need power?
A: No. These are passive antennas with no power supply. Maximum input power is 10 W.

Q: Are RF cables needed?
A: The antennas use N-type male connectors and mount directly on the access point or on a pole. If your installation needs RF cables, they are sourced separately.
