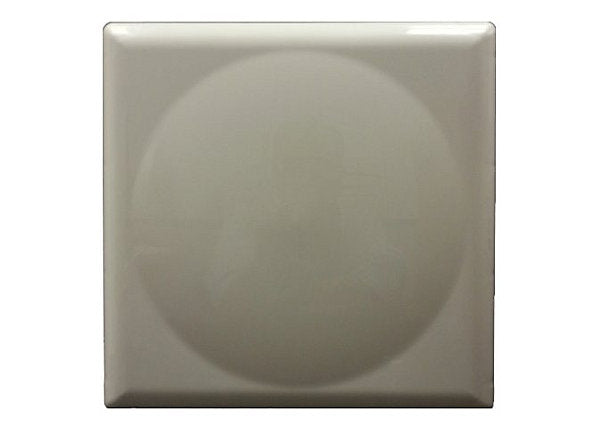

• Cream-colored ceramic tile with circular indentation for Aruba JW028A antenna
1 1

Aruba

Aruba JW028A | ANT-2x2 Outdoor Antenna, 14 dBi, 5 GHz, 2x N-type

JW028A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-2x2-5314 is a dual-polarised 2x2 MIMO directional panel antenna for outdoor 5 GHz Wi-Fi deployments. It is part of the Aruba outdoor antenna range and suits street and spot coverage, seating sections in stadiums and other large public venues, and outdoor point-to-point links.

The antenna covers 4.9 to 5.875 GHz with 14 dBi of gain and a narrow 30 degree by 30 degree beamwidth, which focuses the signal on the target area and reduces the zone where interference may be received. Two N-type female connectors carry the vertical and horizontal polarisations. The panel measures 190 x 190 x 30 mm, weighs 700 g, and is rated for operation from -45 to +65 C. It mounts to a wall or pole.

It is intended for Aruba outdoor access points with detachable N-type antenna connectors, such as the AP-270 series. As a passive antenna it needs no power, with a maximum input power of 6 W.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-polarised 2x2 MIMO design
- Narrow 30 degree beamwidth reduces the zone where interference may be received
- Well suited to street coverage and spot coverage
- Suited to stadium seating sections and other large venues
- Suitable for outdoor point-to-point connections
- Wall and pole mounting options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: ANT-2x2-5314
- Antenna type: 2x2 MIMO dual-polarised directional panel
- Frequency range: 4.900 to 5.875 GHz
- Gain: 14.0 dBi
- Polarisation: Dual, linear vertical and linear horizontal
- Beamwidth: E-plane 30 degrees, H-plane 30 degrees
- Connectors: 2x N-type female
- Impedance: 50 ohms
- VSWR: less than 2.0:1
- Maximum input power: 6 W
- Dimensions (H x W x D): 190 x 190 x 30 mm
- Weight: 700 g
- Housing material: Aluminium and plastic
- Operating temperature: -45 to +65 C
- Mounting: Wall or pole
- Application: Outdoor

FAQs

Q: Which access points does this antenna work with?
A: It is intended for Aruba outdoor access points with detachable N-type antenna connectors, such as the AP-270 series.

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power supply. Its maximum input power rating is 6 W.

Q: Which frequency band does it cover?
A: It covers 4.9 to 5.875 GHz, so it is for 5 GHz operation only and does not serve the 2.4 GHz band.

Q: What coverage pattern does it provide?
A: It is a directional panel with a 30 degree horizontal and 30 degree vertical beamwidth, giving focused coverage for streets, seating sections or point-to-point links.

Q: How is it mounted?
A: It supports wall and pole mounting for outdoor installations.
