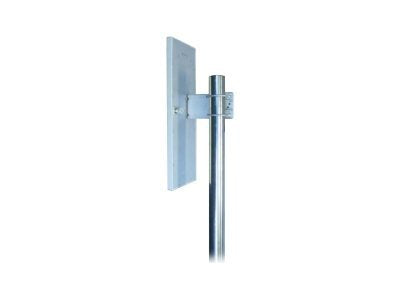

• Aruba JW025A 2x2 MIMO dual-band outdoor sector antenna with pole bracket
1 1

Aruba

Aruba JW025A | Outdoor 2x2 MIMO Sector Antenna, 2.4GHz, 14dBi, 70°

JW025A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-2x2-2714 is a dual-polarised outdoor sector antenna from the Aruba outdoor antenna range. It integrates two differently polarised elements in a single radome and is built for 802.11n MIMO mesh link applications, making it a fit for outdoor mesh links, campus connectivity and wireless coverage in event venues and other high-density outdoor areas.

It operates in the 2.4 GHz band (2.400 to 2.483 GHz) with 14 dBi gain and a 70-degree sector beamwidth, focusing coverage into a defined area rather than radiating in all directions. Two N-type connectors with 50 Ohm impedance carry the 2x2 MIMO streams. The housing is powder-coated aluminium and ABS, measuring 306 x 25 x 306 mm and weighing approximately 1.70 kg, with an operating temperature range down to -45 C and up to 70 C. It is a passive antenna and needs no power.

This antenna is designed for use with Aruba AP-584, AP-585 and AP-587 outdoor access points and AirMesh MSR4KP units. N-male antenna cables, such as the ANT-CBL series, are used to connect it to the access point.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Two differently polarised elements integrated in a single radome
- 70-degree sector coverage for targeted outdoor links
- Designed for 802.11n MIMO mesh link applications
- 2x2 MIMO operation over two N-type connectors
- Weather-resistant outdoor construction
- Wall or pole mounting for flexible outdoor installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Manufacturer part number: JW025A
- Product model: ANT-2x2-2714
- Antenna type: Sector, directional, 2-element dual-polarised MIMO
- Frequency range: 2.400 - 2.483 GHz
- Gain: 14 dBi
- Beamwidth: 70 degrees
- Connector type: N-type
- Impedance: 50 Ohm
- Networking standard: IEEE 802.11n
- Dimensions (W x D x H): 306 x 25 x 306 mm
- Weight: approximately 1.70 kg (3.75 lb)
- Material: Powder-coated aluminium, ABS
- Mounting: Outdoor, wall/pole mount
- Operating temperature: -45 to 70 C
- Power: Passive antenna, no power required

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and does not require any power.

Q: Which access points is it designed to work with?
A: It is designed for the Aruba AP-584, AP-585 and AP-587 outdoor access points and the AirMesh MSR4KP.

Q: What cables do I need to connect it to the access point?
A: The antenna has N-type connectors and needs N-male antenna cables, such as the ANT-CBL series, to connect to the access point.

Q: What frequency band does it cover?
A: It covers the 2.4 GHz band only, from 2.400 to 2.483 GHz. It does not cover the 5 GHz band.

Q: Where can it be mounted?
A: It is designed for outdoor use and mounts on a wall or pole.
