Aruba

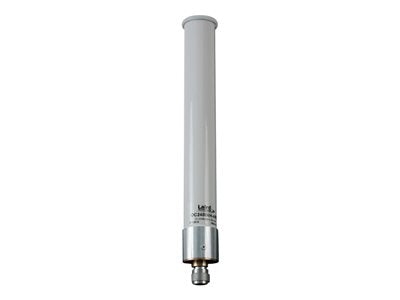

Aruba JW023A | ANT-2x2-2005 2.4GHz 5dBi Omni Antenna Pair, N-type

JW023A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-2x2-2005 is a kit of two omnidirectional outdoor antennas for 802.11n MIMO mesh links and client access at 2.4 GHz. It suits outdoor wireless deployments where a pair of antennas needs to be fitted to an Aruba outdoor access point with N-type antenna connectors.

The two antennas are differently polarised, one vertical and one horizontal, and work together as a 2x2 MIMO pair across the 2.4 to 2.5 GHz band. Each delivers 5 dBi gain with a 360 degree horizontal beamwidth and 50 ohm impedance. The vertical antenna handles up to 50 W input power and the horizontal antenna up to 10 W. Both use N-type male connectors and a UV-resistant white polycarbonate radome, with an operating range of -30 to +70 C.

The antennas mount directly on the access point or on a pole, and a pole mount kit is included. This is a passive antenna kit and needs no power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Kit of two differently polarised omnidirectional antennas for a 2x2 MIMO pair
- Designed for 802.11n MIMO mesh link and client access
- Direct mount on the access point or pole mount, with pole mount kit included
- UV-resistant polycarbonate radome for outdoor use
- Wide operating temperature range for harsh outdoor conditions
- Passive design, no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: JW023A
- Antenna type: Omnidirectional, 2x2 MIMO pair (Vpol + Hpol)
- Frequency range: 2.4 - 2.5 GHz
- Gain: 5 dBi
- Polarisation: Vpol linear vertical; Hpol linear horizontal
- Beamwidth E-plane: 30 degrees (Vpol), 25 degrees (Hpol)
- Beamwidth H-plane: 360 degrees
- Impedance: 50 ohms
- Maximum input power: Vpol 50 W; Hpol 10 W
- VSWR: Vpol <1.7:1; Hpol <2.0:1
- Connector: N-type male
- Dimensions: Vpol 309 x 32 x 32 mm; Hpol 329 x 45 x 45 mm
- Weight: Vpol 140 g; Hpol 260 g
- Radome material: Polycarbonate, UV, white
- Operating temperature: -30 to +70 C
- Storage temperature: -40 to +85 C
- Mounting: Direct mount on AP or pole mount
- Packaged quantity: 2

FAQs

Q: Which frequency band does this antenna pair cover?
A: It covers the 2.4 to 2.5 GHz band only, with 5 dBi gain on each antenna. It is not a dual-band 5 GHz antenna.

Q: Why are the two antennas different?
A: One antenna is vertically polarised and the other horizontally polarised. Together they operate as a 2x2 MIMO pair for 802.11n links.

Q: What connector does it use?
A: Both antennas use N-type male connectors, so they suit access points with N-type antenna ports.

Q: How is it mounted?
A: The antennas mount directly on the access point or on a pole, and a pole mount kit is included for pole installations.

Q: Does it need power?
A: No. It is a passive antenna kit. The maximum input power is 50 W for the vertical antenna and 10 W for the horizontal antenna.
