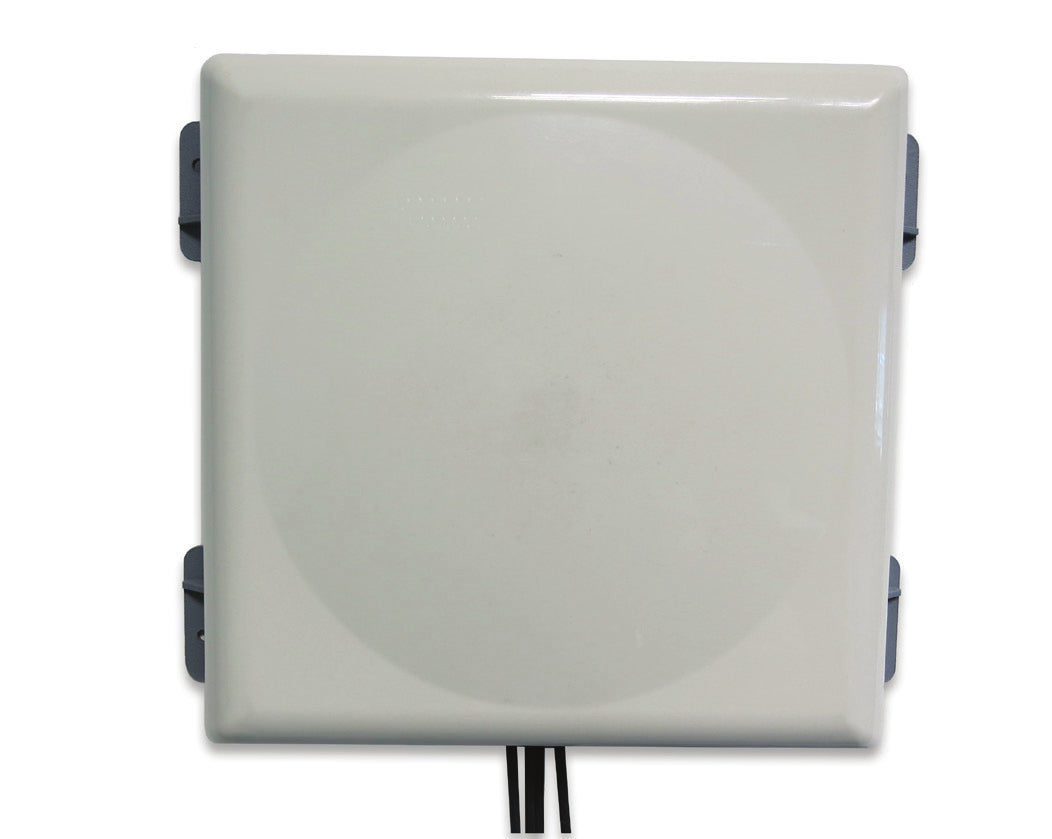

• White glossy square wall light with black accents and Aruba JW019A antenna
1 1

Aruba

Aruba JW019A | AP-ANT-48 Dual-Band 8.5 dBi 4x4 Panel Antenna, RP-SMA

JW019A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-ANT-48 is a dual-band 2.4/5 GHz directional panel (sector) antenna designed for external-antenna access points. It suits outdoor and large indoor spaces such as warehouses, campuses and venues, where focused coverage is needed instead of the all-round pattern of an omnidirectional antenna.

This 4x4 panel delivers 8.5 dBi gain on both the 2.4 GHz and 5 GHz bands, covering 2.4 to 2.5 GHz and 4.9 to 6.0 GHz. It connects through RP-SMA connectors on a pre-attached 0.3 m pigtail, with a 50 ohm impedance and a VSWR of 2.0:1. The antenna is passive, so it needs no power.

The aluminium housing is outdoor rated, with an operating temperature range of -45 to 65 C, and it mounts to a wall or pole. It is intended for Aruba access points that have external RP-SMA antenna connectors and support 4x4 MIMO.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band coverage across 2.4 GHz and 5 GHz
- Directional panel/sector radiation pattern for focused coverage
- 4x4 panel configuration for 4x4 MIMO access points
- Outdoor-rated aluminium housing
- Wall or pole mounting
- Pre-attached 0.3 m pigtail with RP-SMA connectors
- Passive design with no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency band: 2.4 - 2.5 GHz / 4.9 - 6.0 GHz
- Antenna gain (max): 8.5 dBi
- Antenna gain (2.4 GHz): 8.5 dBi
- Antenna gain (5 GHz): 8.5 dBi
- Configuration: 4x4 panel
- Antenna connector type: RP-SMA
- Cable length: 0.3 m
- Impedance: 50 ohm
- Voltage Standing Wave Ratio (VSWR): 2.0:1
- Purpose: Outdoor
- Mounting: Wall/Pole
- Housing material: Aluminium
- Product colour: White
- Width: 190 mm
- Height: 190 mm
- Depth: 44 mm
- Weight: 0.7 kg
- Operating temperature: -45 to 65 C
- Quantity per pack: 1

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power supply or PoE.

Q: Which access points does it work with?
A: It is for Aruba access points that have external RP-SMA antenna connectors and support 4x4 MIMO. Check the Aruba antenna matrix for specific AP model compatibility.

Q: Is it suitable for outdoor use?
A: Yes. It has an outdoor-rated aluminium housing and an operating temperature range of -45 to 65 C.

Q: How is it mounted?
A: It mounts to a wall or a pole.

Q: What gain does it provide on each band?
A: It provides 8.5 dBi on both the 2.4 GHz and 5 GHz bands.
