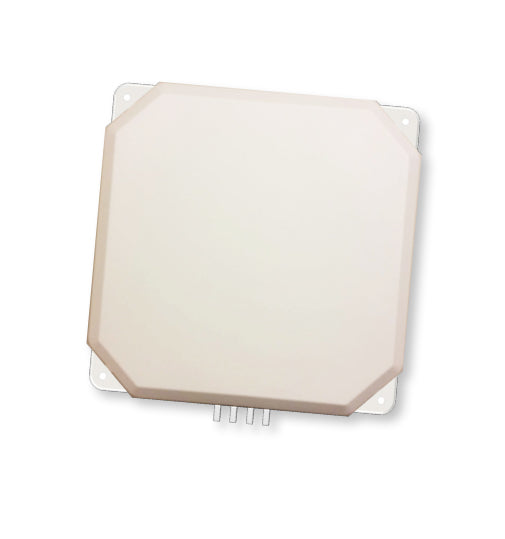

Aruba JW018A | Outdoor 4x4 MIMO Panel Antenna, 90x90deg, 5dBi

JW018A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a dual-band 4x4 MIMO sector panel antenna from the Aruba outdoor antenna range, built for 2.4 GHz and 4.9-6.0 GHz coverage. It suits indoor and outdoor deployments where coverage needs to follow a defined area, such as along a street, as spot coverage, or across seating sections in stadiums and other large public venues.

The four-element multi-polarised design has +/-45 and +/-135 degree polarisation, with a nominal 90 degree horizontal by 90 degree vertical beamwidth. Gain is 4.5 dBi in the 2.4-2.5 GHz band and 5.5 dBi across 4.9-6.0 GHz. Four 30 cm RP-SMA pigtails connect it to the access point. The antenna is passive, with a maximum input power of 6 W, an aluminium housing with plastic radome, and an operating range of -40 to +65 degrees C.

It pairs with Aruba access points that provide four RP-SMA external antenna connectors, such as the AP-314, AP-514, 510 Series and 530 Series. Wall mount anchors are supplied for fixing, and an optional AP-ANT-MNT-5 bracket (JW022A) allows azimuth and elevation adjustable pole mounting.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-element 4x4 MIMO design for dual-band 2.4 and 5 GHz coverage
- Multi-polarised with +/-45 and +/-135 degree polarisation
- Nominal 90 x 90 degree beamwidth suited to sector coverage
- Suited to street coverage, spot coverage and stadium or venue seating sections
- Aluminium housing with plastic radome for indoor and outdoor use
- Optional AP-ANT-MNT-5 adjustable mount kit for pole mounting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Dual-band directional sector panel antenna, indoor/outdoor
- MIMO: 4x4, 4 elements
- Frequency and gain: 2.4-2.5 GHz at 4.5 dBi
- Frequency and gain: 4.9-6.0 GHz at 5.5 dBi
- Beamwidth at 2.4 GHz: 90 degrees horizontal, 90 degrees vertical
- Beamwidth at 5 GHz: 90 degrees horizontal, 90 degrees vertical
- Polarisation: +/-45 degrees, +/-135 degrees
- Connection: 4 x 30 cm RP-SMA terminated pigtails
- Impedance: 50 ohms
- VSWR: 2:1 max
- Maximum input power: 6 W
- Housing: Aluminium
- Radome: Plastic
- Dimensions: 200 x 200 x 40 mm
- Weight: 590 g
- Operating temperature: -40 to +65 degrees C
- Mounting: Wall mount anchors provided

FAQs

Q: Which access points does this antenna work with?
A: It works with Aruba access points that have four RP-SMA external antenna connectors, such as the AP-314, AP-514, 510 Series and 530 Series.

Q: Does the antenna need power?
A: No. It is a passive antenna and needs no power. Maximum input power is 6 W.

Q: What mounting options are available?
A: Wall mount anchors are provided. For pole mounting, the optional AP-ANT-MNT-5 azimuth and elevation adjustable bracket (JW022A) is available separately.

Q: What coverage pattern does it provide?
A: It is a directional sector antenna with a nominal 90 degree horizontal by 90 degree vertical beamwidth on both 2.4 GHz and 5 GHz bands.

Q: What gain does it deliver on each band?
A: Gain is 4.5 dBi across 2.4-2.5 GHz and 5.5 dBi across 4.9-6.0 GHz.
