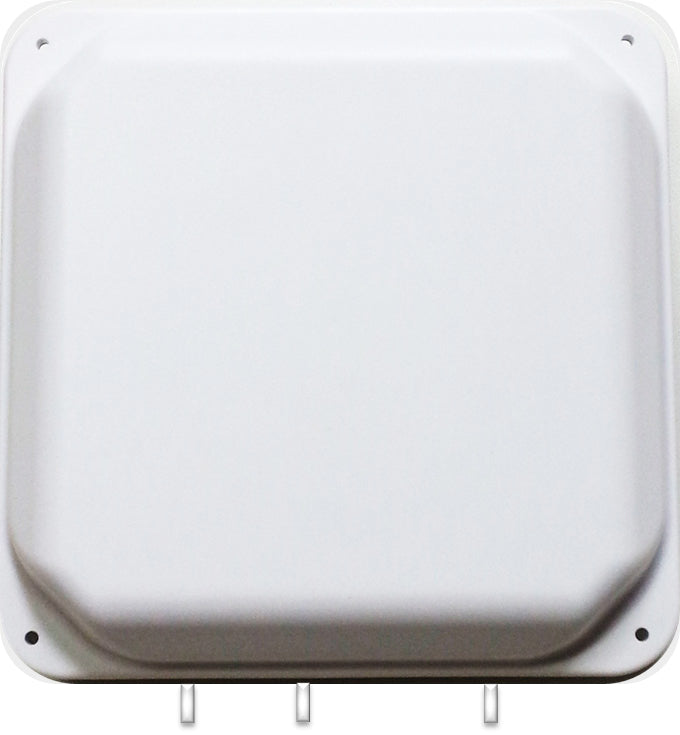

• Aruba JW016A dual-band 2.4/5GHz white square sector antenna with metallic edges
1 1

Aruba

Aruba JW016A | Dual-Band Sector Antenna, 7.5 dBi, 60x60, RP-SMA

JW016A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-ANT-38 is a multi-polarized dual-band sector antenna for 2.4 GHz and 5 GHz coverage. It suits corridors, warehouses and similar spaces where targeted sector coverage works better than an omnidirectional pattern, and it can be used indoors or outdoors.

It delivers 7.5 dBi of gain with nominal beamwidths of 60 degrees horizontal and 60 degrees vertical. The antenna covers 2.4-2.5 GHz and 4.9-6.0 GHz, and uses vertical and slant +/-45 degree polarisation. Connection is by RP-SMA connectors. It measures approximately 198 x 198 x 36 mm, weighs about 0.55 kg, and mounts on a pole or wall.

This is a passive antenna and needs no power supply. It is intended for Aruba access points with external RP-SMA antenna connections, so check that the access point model supports external antennas and uses a compatible connector before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-polarized design with 60° H x 60° V beamwidths
- Covers both the 2.4 GHz and 5 GHz Wi-Fi bands
- Suitable for indoor and outdoor use
- RP-SMA connectors for Aruba access points with external antenna ports
- Pole or wall mounting
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: AP-ANT-38
- Antenna type: Sector, multi-polarized
- Antenna gain: 7.5 dBi
- Frequency range: 2.4-2.5 GHz / 4.9-6.0 GHz
- Connector type: RP-SMA
- Beamwidth: 60° H x 60° V (nominal)
- Polarisation: V, and Slant +/-45°
- Deployment: Indoor/Outdoor
- Mounting: Pole or wall
- Dimensions (H x W x D): approx. 198 x 198 x 36 mm
- Weight: approx. 0.55 kg
- Power: Passive, no power supply required

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power supply.

Q: Which access points does it work with?
A: It is intended for Aruba access points with external RP-SMA antenna connections. Confirm that your access point model supports external antennas and uses a compatible connector.

Q: What coverage pattern does it provide?
A: It is a sector antenna with nominal 60 degree horizontal and 60 degree vertical beamwidths, giving focused coverage rather than an all-round pattern.

Q: Can it be used outdoors?
A: Yes. It is designed for both indoor and outdoor deployments and mounts on a pole or wall.

Q: Which frequency bands does it cover?
A: It covers 2.4-2.5 GHz and 4.9-6.0 GHz, so it supports both 2.4 GHz and 5 GHz Wi-Fi.
