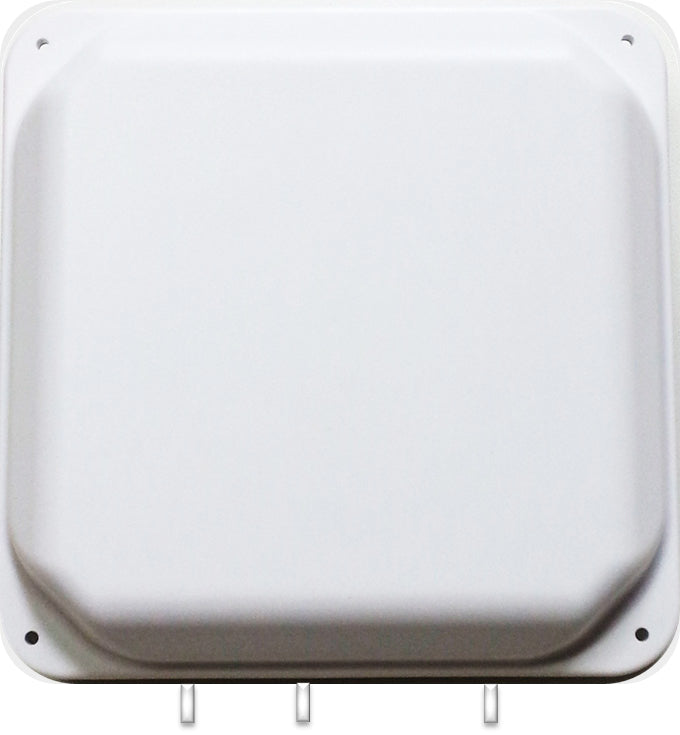

• Aruba JW015A white square sector panel antenna 5 dBi RP-SMA mount
1 1

Aruba

Aruba JW015A | AP-ANT Dual-Band 5 dBi 90x90deg Sector Antenna, 3x RP-SMA

JW015A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-ANT-35A is a multi-polarised dual-band sector panel antenna from the Aruba AP-ANT range. It is designed for sector coverage in high-density public venues such as stadiums and convention centres, and in indoor or outdoor areas that need directional 2.4 GHz and 5 GHz coverage from access points with RP-SMA antenna connectors.

The antenna delivers 5 dBi of gain with a nominal 90 degree horizontal by 90 degree vertical beamwidth. It covers 2.4-2.5 GHz and 4.9-6.0 GHz and uses a 3-element MIMO design with +/-45 degree and vertical polarisation, which suits 3x3 access points. Three RP-SMA male connectors are fitted on 75 cm pigtails. It is a passive antenna with a maximum input power of 6 W, so no power supply is required. The aluminium housing and plastic radome weigh 489 g, with options for wall, ceiling and pole mounting.

It works with Aruba access points that have external RP-SMA antenna interfaces, including the AP-224. Check the antenna table for your access point model before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-polarised design with 90 x 90 degree sector coverage
- Dual-band operation for 2.4 GHz and 5 GHz access
- 3-element MIMO for 3x3 access points
- Suitable for indoor and outdoor use
- Wall anchors for flush mounting included
- Passive design with no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: AP-ANT-35A
- Frequency range: 2.4-2.5 GHz and 4.9-6.0 GHz
- Gain: 5 dBi
- Beamwidth (H x V): 90 x 90 degrees nominal
- Polarisation: +/-45 degrees and vertical, 3-element MIMO
- Connectors: 3 x RP-SMA male on pigtails
- Pigtail cable length: 75 cm (30 in)
- Impedance: 50 ohms
- VSWR: 2:1 max
- Maximum input power: 6 W
- Housing: Aluminium
- Radome: Plastic
- Weight: 489 g (1.1 lbs)
- Mounting: Wall, ceiling and pole mount, wall anchors for flush mount included

FAQs

Q: Which access points does this antenna work with?
A: It works with Aruba access points that have external RP-SMA antenna connectors, including the AP-224. Check the antenna table for your access point model before ordering.

Q: Does it need power?
A: No. It is a passive antenna and needs no power supply. The maximum input power is 6 W.

Q: Can it be used outdoors?
A: Yes. It is suitable for both indoor and outdoor use, with wall, ceiling and pole mounting options.

Q: What frequency bands does it cover?
A: It covers 2.4-2.5 GHz and 4.9-6.0 GHz, so a single antenna serves both the 2.4 GHz and 5 GHz bands.

Q: How long are the antenna pigtails?
A: Each of the three RP-SMA male pigtails is 75 cm (30 in) long.
