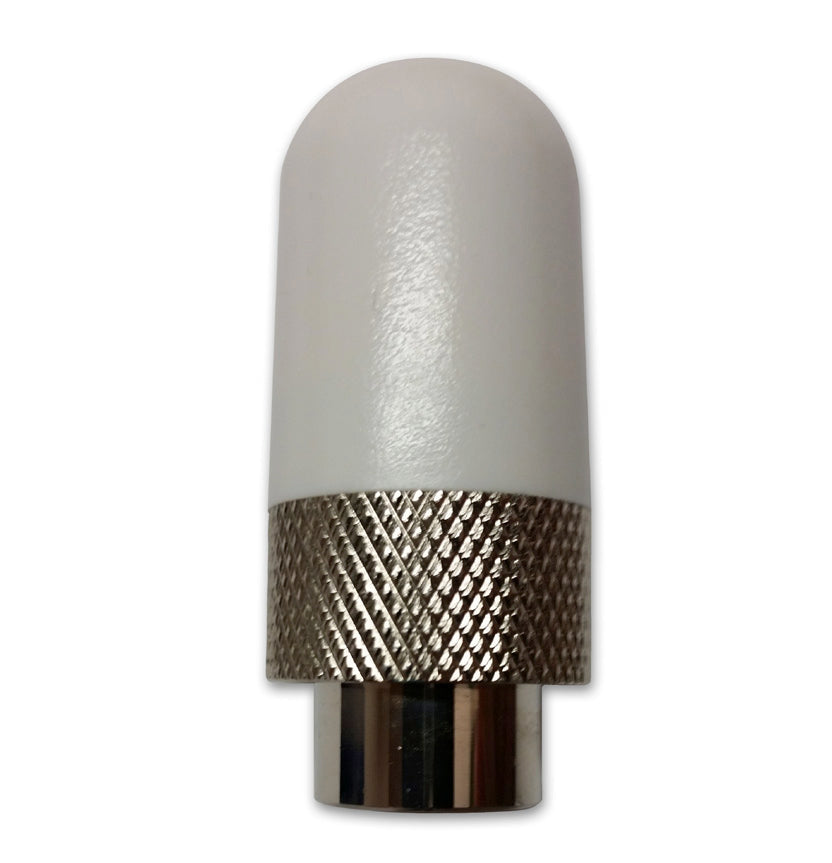

• Aruba JW014A white and gold knurled knob antenna, 4 dBi indoor dual-band
1 1

Aruba

Aruba JW014A | AP-ANT-32 Dual-Band Omni Antenna, 3-Pack, RP-SMA

JW014A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-ANT-32 is a kit of three small, low-profile downtilt omnidirectional antennas for the Aruba Indoor Antennas range. It is intended for industrial and stadium deployments, and for tight indoor spaces where a small, discreet omni antenna is needed.

Each antenna in the 3-pack is dual-band, delivering 2 dBi gain at 2.4 GHz and 4 dBi at 5 GHz. Coverage spans 2.4 to 2.5 GHz and 4.9 to 6.0 GHz, with a 360 degree horizontal and 45 degree vertical beamwidth and vertical polarisation. The antennas use RP-SMA connectors and a direct mount form factor, and each element measures 19.6 mm in diameter by 44.2 mm high and weighs 30 g. Operation is rated from -40 to +65 C, which suits harsher indoor environments.

The kit is designed for use with Aruba (I)AP-228 access points via their RP-SMA connectors. As a passive antenna it needs no power, with a maximum RF input power of 20 W.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Kit of three small downtilt omni antennas
- Dual-band operation across 2.4 GHz and 5 GHz
- Nominal 360 degree horizontal and 45 degree vertical beamwidths
- Compact, low-profile design for tight spaces
- Wide operating temperature range (-40 to +65 C) for industrial and stadium use
- Passive design with no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Kit contents: 3 x dual-band omni antennas (AP-ANT-32)
- Frequency: 2.4-2.5 GHz and 4.9-6.0 GHz
- Gain: 2 dBi (2.4 GHz) / 4 dBi (4.9-6.0 GHz)
- Directivity: Omni-directional
- Beamwidth: Horizontal 360 degrees, Vertical 45 degrees
- Polarisation: Vertical
- Connector: RP-SMA
- Impedance: 50 ohm
- VSWR: 2:1 max
- Max input power: 20 W
- Dimensions (dia. x height): 19.6 mm x 44.2 mm (0.77 x 1.75 in)
- Weight: 30 g (0.065 lbs) per element
- Operating temperature: -40 to +65 C
- Form factor: Direct mount
- Application: Indoor wireless access point
- Packaged quantity: 3

FAQs

Q: Which access points is the AP-ANT-32 designed for?
A: It is intended for use with Aruba (I)AP-228 access points, connecting through RP-SMA connectors.

Q: How many antennas come in the kit?
A: The AP-ANT-32 is a kit of three dual-band omnidirectional antennas.

Q: Does the antenna need power?
A: No. It is a passive antenna and requires no power. The maximum RF input power is 20 W.

Q: What gain does it provide on each band?
A: Each antenna provides 2 dBi at 2.4 GHz and 4 dBi across 4.9 to 6.0 GHz.

Q: Is it suitable for harsh environments?
A: It is an indoor antenna rated for -40 to +65 C, which suits industrial and stadium applications.
