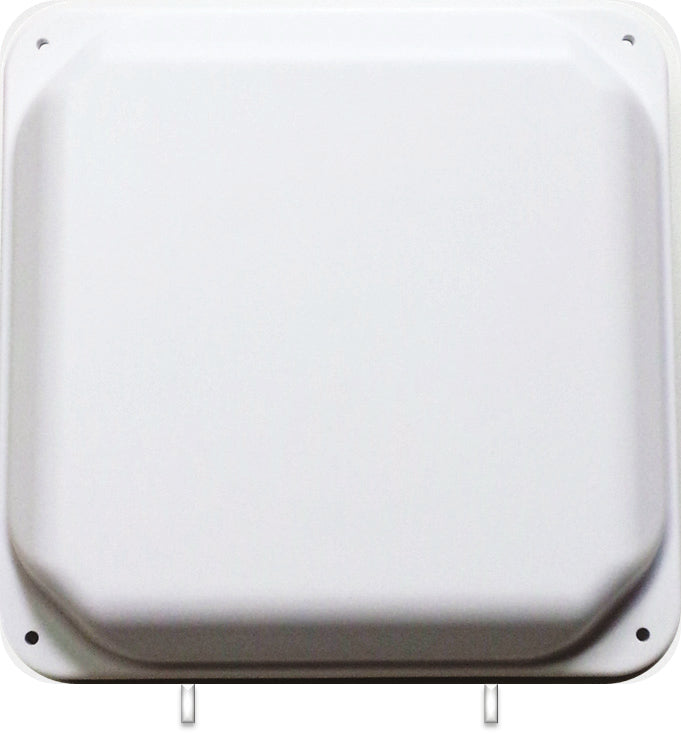

• Aruba JW013A 7.5 dBi sector panel antenna with white dish
1 1

Aruba

Aruba JW013A | AP-ANT-28 Dual-Band Sector Antenna, 7.5 dBi, RP-SMA

JW013A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-ANT-28 is a dual-polarized sector panel antenna for 2.4 GHz and 5 GHz Wi-Fi coverage. It suits network designers who need directional coverage from a wall mounted position, indoors or outdoors, rather than the all-round pattern of an omnidirectional antenna.

The antenna delivers 7.5 dBi gain in both the 2.4 GHz and 5 GHz bands, with a 60 degree horizontal and 60 degree vertical beamwidth. It covers 2.4-2.5 GHz and 4.9-6.0 GHz, has a 50 ohm impedance and a VSWR of 2:1. The RP-SMA male connector attaches to access points with external antenna ports. The white housing is made of aluminium and plastic, measures 197.5 mm x 197.5 mm x 34.5 mm, weighs 489 g and is rated for operation from -45 to 65 C.

This SKU is the 7.5 dBi, 60x60 degree sector variant with RP-SMA connectivity and wall mounting.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-polarized design with 60 x 60 degree beamwidths
- Directional sector coverage for 2.4 GHz and 5 GHz Wi-Fi access
- Covers the 4.9-6.0 GHz range for 5 GHz deployments
- Rated for indoor and outdoor deployment from -45 to 65 C
- RP-SMA male connector for access points with external antenna ports
- Wall mounting for fixed sector coverage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: AP-ANT-28
- Antenna type: Sector antenna
- Frequency band: 2.4-2.5 / 4.9-6.0 GHz
- Antenna gain (2.4 GHz): 7.5 dBi
- Antenna gain (5 GHz): 7.5 dBi
- Horizontal beamwidth: 60 deg
- Vertical beamwidth: 60 deg
- Polarization: Dual polarization
- Impedance: 50 ohm
- VSWR: 2:1
- Connector: RP-SMA (male)
- Mounting: Wall
- Purpose: Indoor and outdoor
- Housing material: Aluminium, Plastic
- Colour: White
- Operating temperature: -45 to 65 C
- Dimensions (W x D x H): 197.5 x 197.5 x 34.5 mm
- Weight: 489 g

FAQs

Q: What coverage pattern does this antenna provide?
A: It is a sector antenna with a 60 degree horizontal and 60 degree vertical beamwidth, so it focuses signal in one direction rather than all around.

Q: Which frequency bands does it support?
A: It covers 2.4-2.5 GHz and 4.9-6.0 GHz, with 7.5 dBi gain in both the 2.4 GHz and 5 GHz bands.

Q: What connector does it use?
A: It has an RP-SMA male connector, so it suits access points with matching external antenna ports.

Q: Can it be used outdoors?
A: Yes. It is rated for indoor and outdoor use with an operating temperature range of -45 to 65 C.

Q: How is it mounted?
A: This SKU is a wall mount sector antenna.
