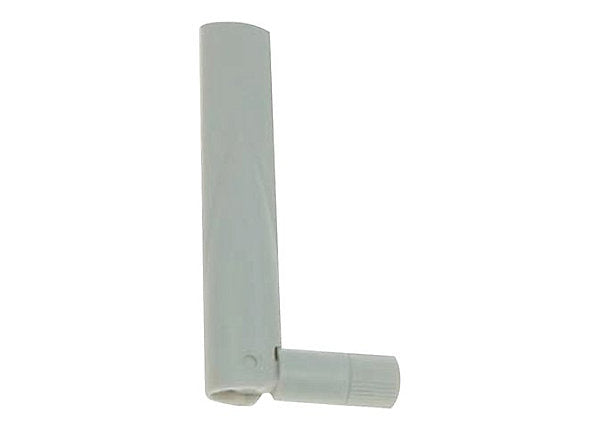

• Aruba JW011A white plastic folding omni whip antenna, 2 dBi RP-SMA
1 1

Aruba

Aruba JW011A | AP-ANT-20 2 dBi Dual-Band Omni Antenna, RP-SMA, White

JW011A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AP-ANT-20W is a compact dual-band indoor omnidirectional antenna from the Aruba AP-ANT-20 range, finished in white. It is designed for indoor WLAN deployments that need discreet, uniform 2.4 GHz and 5 GHz coverage, such as offices, classrooms and retail, on Aruba access points with external RP-SMA antenna connectors.

It delivers 2.0 dBi maximum gain across both 2.4-2.5 GHz and 4.9-5.875 GHz, with a 360 degree H-plane and 80 degree E-plane beamwidth and linear vertical polarisation. Impedance is 50 ohms with a VSWR below 2.0:1 and a maximum input power of 2 W. The articulating RP-SMA mount attaches straight to the AP with no separate cable run, and the white enclosure sits alongside Aruba indoor APs. The sibling AP-ANT-20A uses the classic colour instead.

This passive antenna needs no power. It direct-mounts to the RP-SMA external antenna ports of Aruba indoor APs, including the AP-514 (4 x RP-SMA) and AP-314, with one antenna required per RP-SMA connector.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact dual-band indoor antenna for multifunction APs needing omnidirectional coverage
- Articulating mount for deployment flexibility
- Connects directly to Aruba APs via external RP-SMA antenna connectors
- Passive design, no power required
- White finish to match Aruba indoor access points

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency / max gain (2.4 GHz band): 2.4-2.5 GHz, 2.0 dBi
- Frequency / max gain (5 GHz band): 4.9-5.875 GHz, 2.0 dBi
- Polarisation: Linear, vertical; omnidirectional patterns at all frequencies
- Beamwidth E-plane: 80 degrees
- Beamwidth H-plane: 360 degrees
- Impedance: 50 ohms
- Maximum input power: 2 W
- VSWR (minimum performance): < 2.0:1
- Connector: RP-SMA, direct-mount with articulating mount
- Dimensions (mm): 79 x 35.3 x 10 with articulating mount at 90 degrees
- Dimensions (mm), fully extended: 102 x 14.8 x 10
- Enclosure: POM/ABS
- Operating temperature: -10 to +55 C
- Colour: White
- Environment: Indoor use

FAQs

Q: Which access points does this antenna work with?
A: It direct-mounts to the RP-SMA external antenna ports of Aruba indoor APs. It is a selectable antenna for the AP-514 (4 x RP-SMA) and AP-314.

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power. Maximum input power is 2 W.

Q: How many antennas do I need per access point?
A: One antenna is needed for each RP-SMA connector you want to populate on the AP.

Q: How does AP-ANT-20W differ from AP-ANT-20A?
A: Both are 2 dBi dual-band indoor omni antennas. The AP-ANT-20W is the white version and the AP-ANT-20A is the classic colour.

Q: Which frequency bands does it cover?
A: It covers 2.4-2.5 GHz and 4.9-5.875 GHz, with 2.0 dBi maximum gain in each band.
