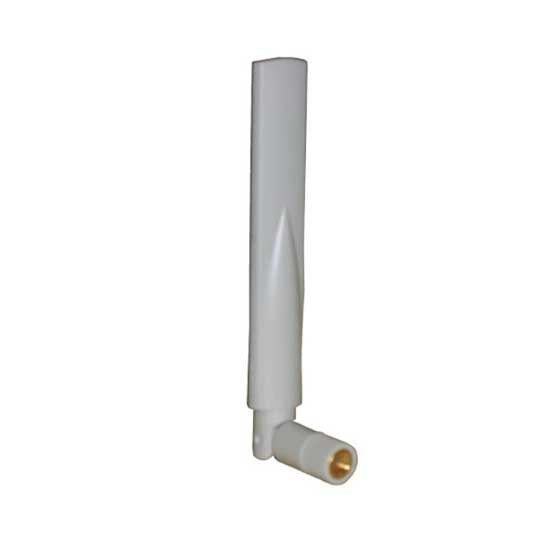

• Aruba JW009A dual-band omni AP antenna with white body and gold RP-SMA connector
1 1

Aruba

Aruba JW009A | AP-ANT-1W Dual-Band Omni Antenna, 5.8 dBi, RP-SMA, White

JW009A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AP-ANT-1W is a dual-band omnidirectional indoor antenna from the Aruba AP-ANT-1 range, finished in white to match Aruba indoor access points. It connects directly to Aruba access points with external antenna connectors through its onboard RP-SMA connector, and suits multi-purpose WLAN service delivery, air monitoring or wireless intrusion prevention (WIP) deployments.

It covers both the 2.4 GHz and 5 GHz bands, with 3.8 dBi gain at 2.4-2.5 GHz and 5.8 dBi gain at 4.9-5.875 GHz. Polarization is linear vertical with omnidirectional patterns on both bands, and gain increases in the mid and upper 5 GHz range. It has a 50 ohm impedance, a 2 W maximum input power and a VSWR below 2.0:1. The antenna is passive, so no power supply is needed.

An articulating mount gives flexibility in how the antenna is positioned. The UV-resistant ABS housing measures 1.9 cm x 3.9 cm x 12.7 cm and is rated for operation from -10 C to +55 C. The white AP-ANT-1W is the colour variant matched to Aruba white indoor APs, while the AP-ANT-1B is the off-white option.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Articulating mount gives flexibility in deployment
- Connects directly to Aruba access points through the onboard RP-SMA connector
- Omnidirectional coverage on both 2.4 GHz and 5 GHz bands
- Suited to multi-purpose service deployment or wireless intrusion prevention (WIP)
- Higher gain in the mid and upper 5 GHz bands
- White finish to match Aruba indoor access points
- UV-resistant ABS housing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Colour: White (AP-ANT-1W)
- Frequency range: 2.4-2.5 GHz and 4.9-5.875 GHz
- Gain at 2.4-2.5 GHz: 3.8 dBi
- Gain at 4.9-5.875 GHz: 5.8 dBi
- Polarization: Linear, vertical
- Pattern: Omnidirectional
- Beamwidth 2.4-2.5 GHz: E-Plane 50 degrees, H-Plane 360 degrees
- Beamwidth 4.9-5.875 GHz: E-Plane 25 degrees, H-Plane 360 degrees
- Connector: RP-SMA, articulating mount
- Impedance: 50 ohms
- Maximum input power: 2 W
- VSWR (minimum performance): < 2.0:1
- Dimensions: 1.9 cm x 3.9 cm x 12.7 cm (0.75 in x 1.54 in x 5.00 in)
- Housing: ABS, UV resistant
- Operating and storage temperature: -10 C to +55 C (+14 F to +131 F)

FAQs

Q: What is the difference between the AP-ANT-1W and the AP-ANT-1B?
A: They are the same antenna in two colours. The AP-ANT-1W is white and the AP-ANT-1B is off-white, so you can match the finish of your Aruba indoor access points.

Q: Does this antenna need power or a licence?
A: No. It is a passive antenna, so it needs no power supply and no licence. Maximum input power is 2 W.

Q: How does it connect to the access point?
A: It connects directly to Aruba access points that have external antenna connectors, using the onboard RP-SMA connector on its articulating mount. No separate installation hardware is needed.

Q: Which frequency bands and gain does it cover?
A: It covers 2.4-2.5 GHz at 3.8 dBi and 4.9-5.875 GHz at 5.8 dBi, with omnidirectional patterns on both bands.

Q: Is it suitable for wireless intrusion prevention monitoring?
A: Yes. Its dual-band omnidirectional coverage makes it a preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP) monitoring.
