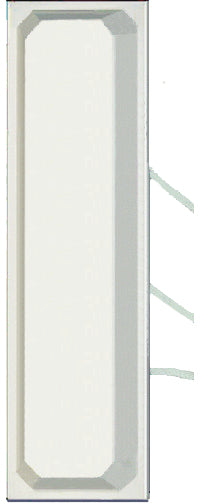

• Aruba JW003A white rectangular indoor omni AP antenna door with cutouts
1 1

Aruba

Aruba JW003A | AP-ANT-16 Dual-Band 3-Element Indoor Omni Antenna, 4.7 dBi

JW003A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-ANT-16 is a dual-band, 3-element MIMO omni-directional antenna for indoor Aruba access points. Its downtilt pattern is designed for ceiling installations, such as offices and similar spaces with drop ceilings, where focused coverage zones matter more than raw range. It suits 802.11n, 802.11ac and 802.11ax dual-band MIMO deployments.

The antenna delivers 3.9 dBi across 2.4 to 2.5 GHz and 4.7 dBi across 4.9 to 5.9 GHz, with vertical polarisation and a 60 degree elevation beamwidth centred at plus or minus 45 degrees down angle. Each of the three elements has its own 36 inch plenum-rated coax pigtail terminated with an RP-SMA connector. The ASA housing is rated for operation from -40 to +70 C, and 15/16 inch T-bar clips allow it to mount directly onto drop-ceiling grids. Maximum input power is 2 W, and no power supply is needed because the antenna is passive.

It connects to Aruba indoor access points with RP-SMA antenna connectors. Aruba's ordering guides for the 500 Series and 220 Series list it as an optional antenna, and the three elements can be used together or individually.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band 3-element omni-directional antenna for 802.11n MIMO applications
- Downtilt pattern places signal density into defined indoor coverage zones
- Compact, low-profile radome with integrated spring clips for drop-ceiling T-bar grids
- Each element connects through its own low-loss, plenum-rated coax pigtail
- Uniform, symmetrical radiation patterns for predictable coverage
- One antenna type covers any MIMO radio in the 2.4 and 5 GHz bands
- Elements can be used individually or combined for diversity or non-diversity coverage with legacy APs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency and gain: 2.4-2.5 GHz at 3.9 dBi, 4.9-5.9 GHz at 4.7 dBi
- Elements: 3-element MIMO
- Polarisation: Vertically polarised omni-directional
- Beamwidth E-plane (elevation): 60 degrees, centred at +/-45 degrees down angle
- Beamwidth H-plane (azimuth): Omni-directional
- Impedance: 50 ohms
- Maximum input power: 2 W
- VSWR: Less than 2.0:1
- Dimensions: 308.2 x 92 x 22 mm
- Housing: ASA
- Connectors: 3 x RP-SMA on 36 in fly cables
- Operating temperature: -40 to +70 C
- Mounting: Ceiling T-bar, 15/16 in clips
- Form factor: Ceiling mount
- Application: Indoor wireless access point
- Manufacturer part number: JW003A
- Country of origin: China

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power supply. Maximum input power is 2 W.

Q: Which access points does it connect to?
A: It connects to Aruba indoor access points with RP-SMA antenna connectors. It is listed as an optional antenna in the ordering guides for the Aruba 500 Series and 220 Series.

Q: Do I have to connect all three elements?
A: No. The elements can be used individually or combined. On the Aruba 500 Series, any two of the three elements can be connected.

Q: How is it mounted?
A: It clips onto 15/16 inch drop-ceiling T-bar grids using its integrated spring clips.

Q: How does it differ from other Aruba indoor antennas?
A: This is the 3-element dual-band downtilt omni model, with 3.9 dBi at 2.4 GHz and 4.7 dBi at 5 GHz, built for ceiling mounting.
