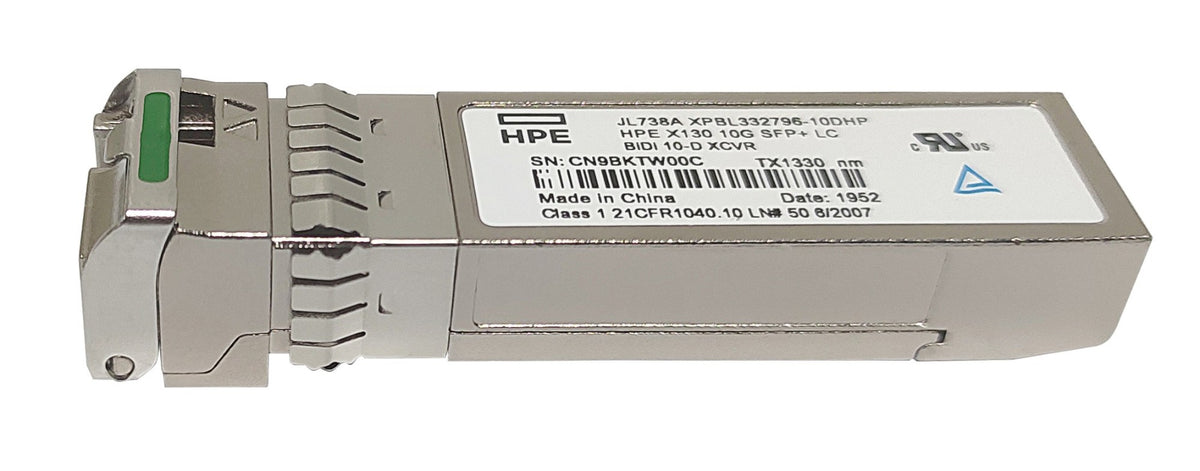

Aruba JL738A | X130 10G SFP+ BiDi Transceiver, 10km, 10-D (TX 1330nm)
SKU:JL738A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The X130 10G SFP+ LC BiDi 10-D transceiver carries 10GbE over a single strand of single-mode fibre for up to 10 km. It suits inter-building links, campus backbones and data centre runs where only one fibre strand is available.
This is the downlink end of a BiDi pair (10GBASE-BX10-D). It transmits at 1330 nm and receives at 1270 nm over a 9/125 um single-mode LC simplex connection, with a transmission rate of 10.31 Gbps. Because it uses one fibre instead of two, it halves the fibre needed compared with dual-fibre optics. It is a hot-swappable SFP+ module and supports Digital Diagnostic Monitoring. No licence is required.
BiDi optics only work as a matched pair. This 10-D module must be paired with a 10-U uplink transceiver at the far end, such as the JL737A (TX 1270 nm / RX 1330 nm). It fits standard SFP+ ports on HPE Networking Comware, Aruba and HPE switches.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Bidirectional (BiDi) transmission over a single fibre strand, halving fibre requirements versus dual-fibre optics
- Downlink (10-D) variant designed to pair with a matching 10-U uplink transceiver such as JL737A
- Hot-swappable SFP+ form factor
- Digital Diagnostic Monitoring
- Powered from the host SFP+ slot, no separate power needed
- Suited to inter-building, campus backbone and data centre 10GbE links
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: SFP+ BiDi transceiver (10GBASE-BX10-D)
- Family: HPE Networking Comware
- Transmission rate: 10.31 Gbps
- Transfer speed: 10 Gb
- Connector: LC simplex
- Fibre type: Single-mode 9/125 um
- Maximum distance: 10 km (6.21 miles)
- Transmit wavelength (TX): 1330 nm
- Receive wavelength (RX): 1270 nm
- Role: Downlink (10-D)
- Dimensions: 13 x 3.51 x 1.5 cm
- Weight: 0.1 kg
- Licence: None required
FAQs
Q: Does this transceiver need a licence?
A: No. No licence or subscription is required to use this module.
Q: What do I need at the other end of the link?
A: BiDi optics must be used as a matched pair. This 10-D downlink module must connect to a 10-U uplink module such as the JL737A, which transmits at 1270 nm and receives at 1330 nm.
Q: How does this differ from the 10-U version?
A: The 10-D module transmits at 1330 nm and receives at 1270 nm. The 10-U (JL737A) is the opposite, transmitting at 1270 nm and receiving at 1330 nm. One of each is needed to form a working link.
Q: What fibre does it use?
A: It uses a single strand of 9/125 um single-mode fibre with an LC simplex connector, for runs of up to 10 km.
Q: Which switches does it fit?
A: It fits standard SFP+ ports on HPE Networking Comware, Aruba and HPE switches. Check the platform's supported transceiver list before ordering.
